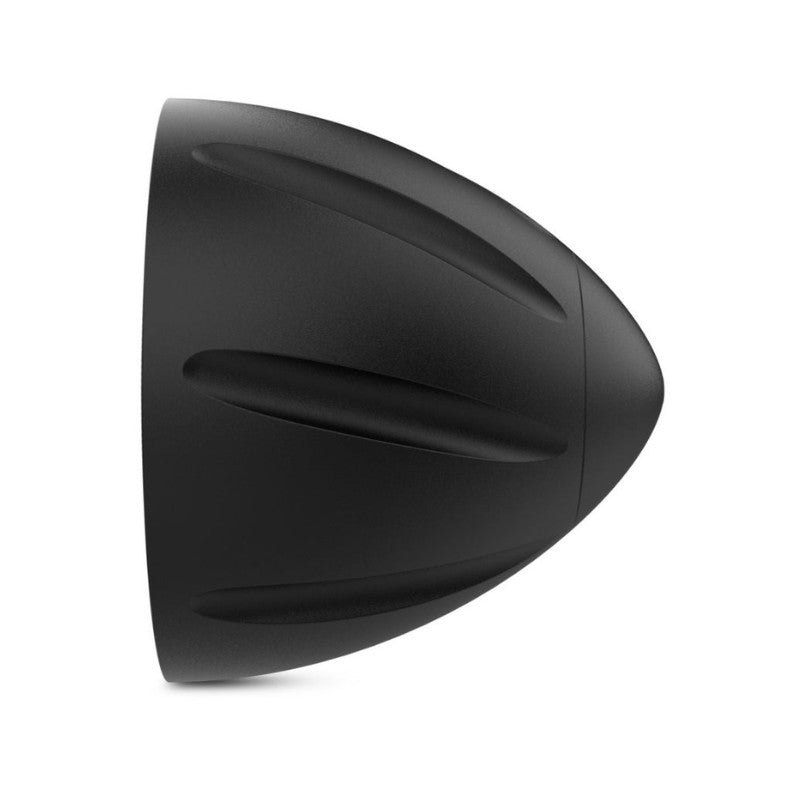

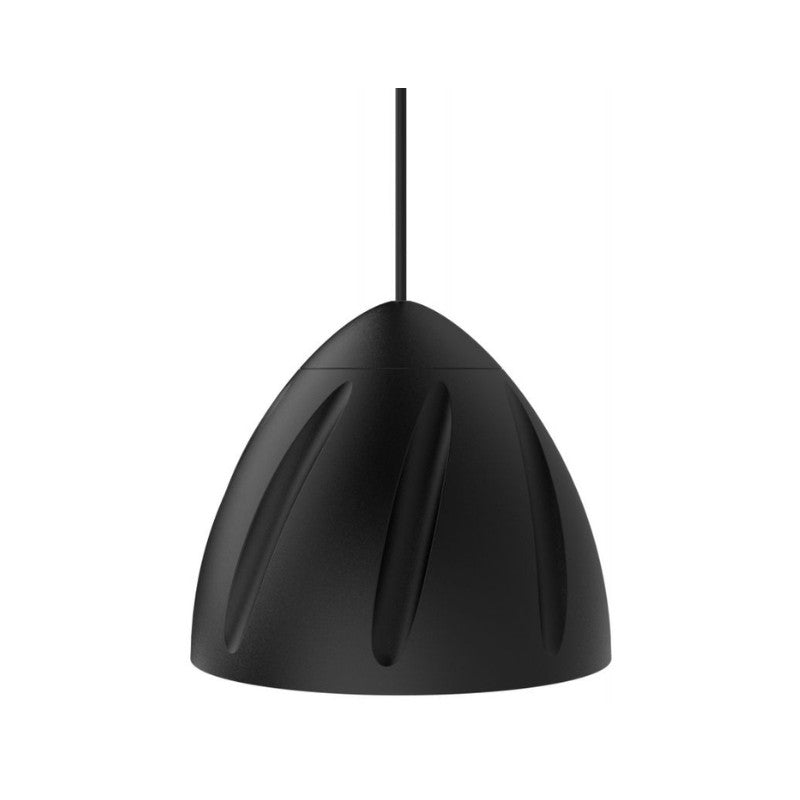

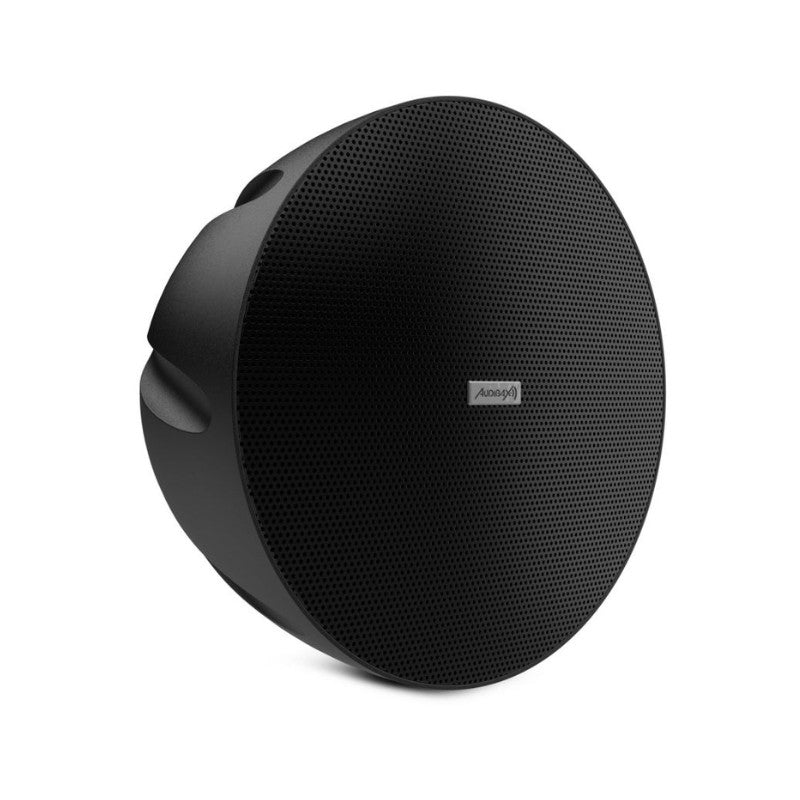

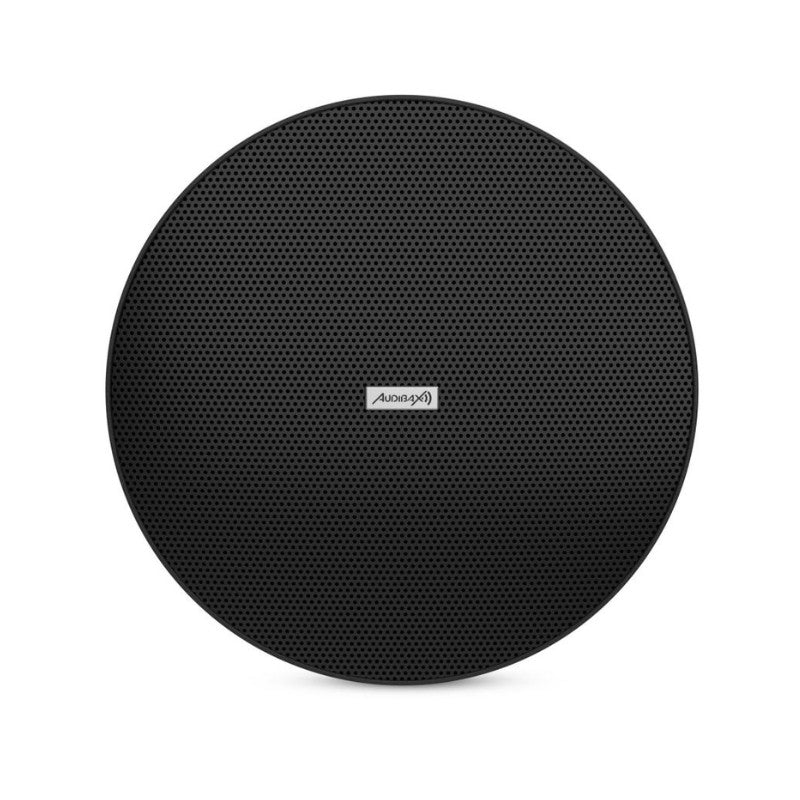

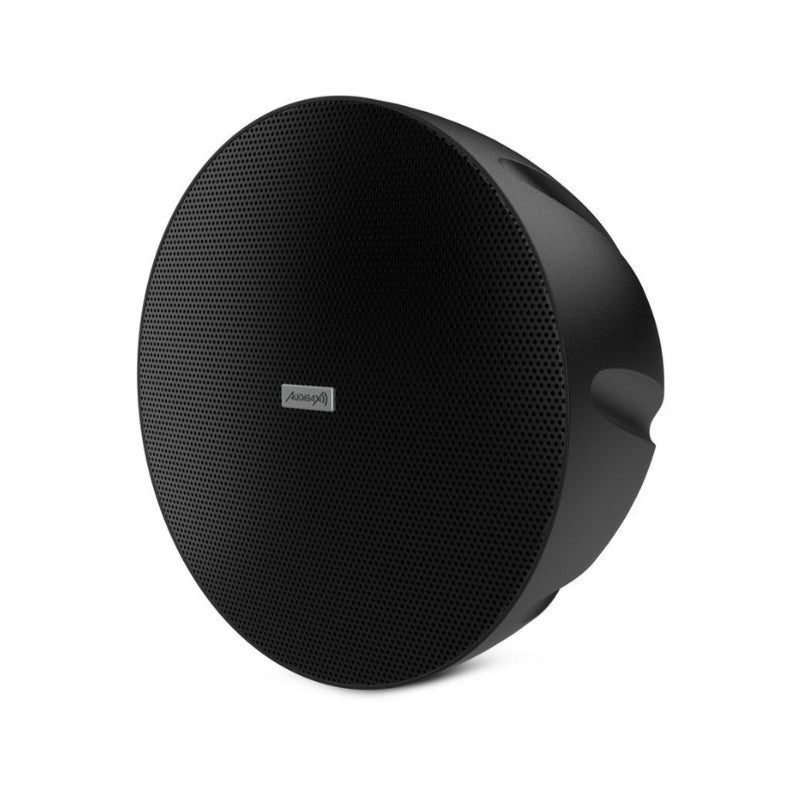

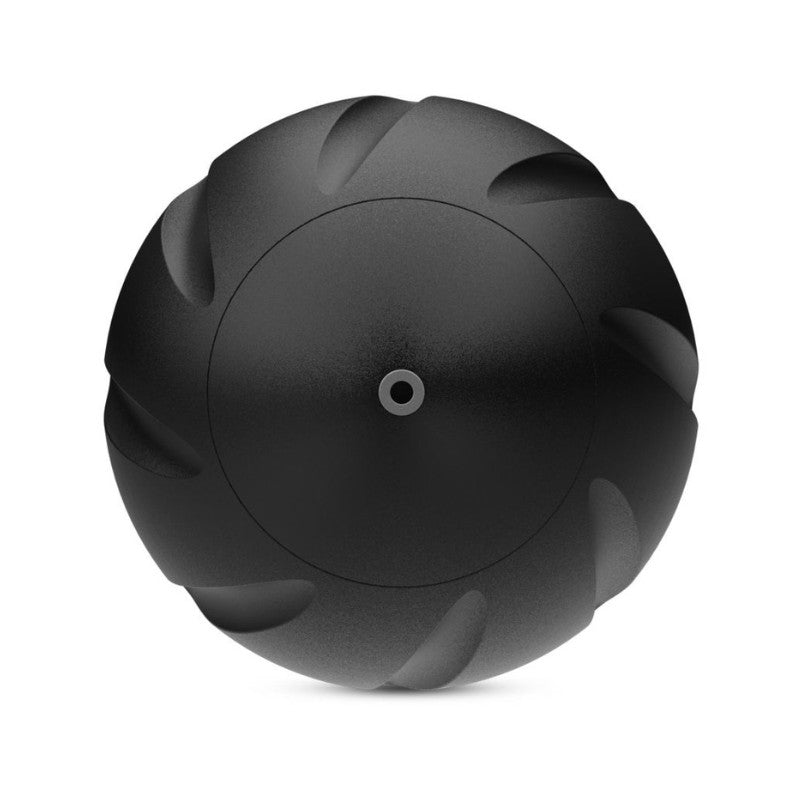

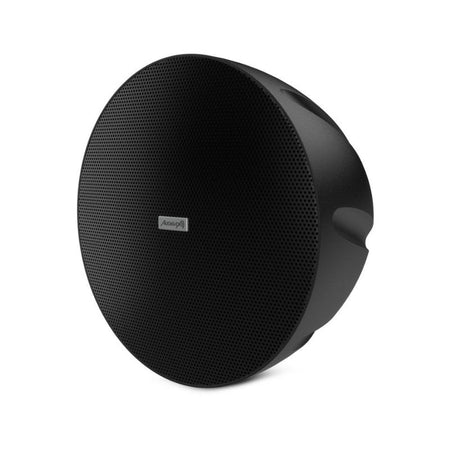

Audibax Drop 6 Black - 6.5" 100V Passive Ceiling Pendant Speaker

Audibax Drop 6 Black - 6.5" 100V Passive Ceiling Pendant Speaker

The Audibax Drop 6 Black is a 2-way pendant speaker designed for distributed sound reinforcement in commercial and public spaces. Its pendant design provides uniform coverage from standard ceiling heights, and its discreet black finish blends seamlessly into museums, restaurants, retail spaces, entertainment centers, and waiting rooms. It features a 6.5” woofer and a dome tweeter, with a line transformer for 70/100 V systems and a low-impedance (8 Ω) operating option, allowing for precise power selection for each zone and optimizing the number of units installed. With a wide 162° dispersion and extended frequency response, it delivers clear and consistent audio for background music and voice announcements.

Main features

• Passive 2-way speaker (6.5” woofer + high-frequency tweeter).
• 100V/70V line operation with selectable power levels on the speaker itself.
• Option 8 Ω (40 W) for integration with low impedance stages.
• Wide frequency response (60 – 22 kHz) for ambient music with good speech intelligibility.
• 162° dispersion for uniform coverage in open areas.
• Sound pressure level: 88 dB (@1 W/1 m).
• Durable ABS construction and black finish.

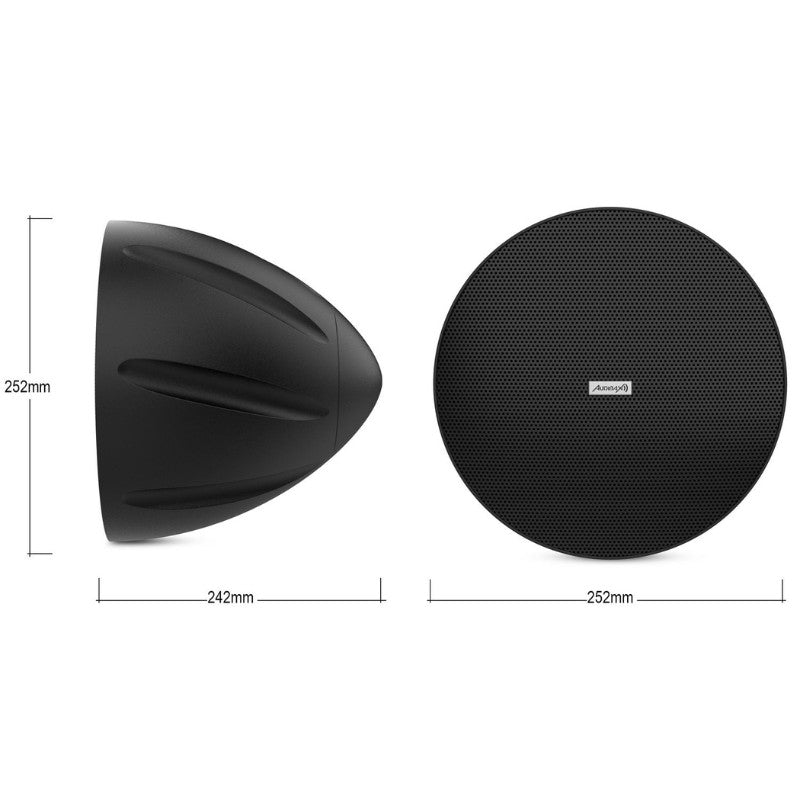

• Compact dimensions: 252 mm (diameter) × 242 mm (height).
• Hanging installation from the ceiling, ideal for high ceilings or spaces without false ceilings.

Product benefits

• Installation flexibility: tap power selection (5/10/20/40 W at 100 V; 2.5/5/10/20/40 W at 70 V) to adjust levels by zone without recalculating impedances.
• Wide and homogeneous coverage: the 162° angle reduces acoustic shadows and the number of units needed in open spaces.
• Clear audio in music and voice: 2-way system that improves speech intelligibility and presence in background music.
• Full compatibility: Works with both 70/100V PA/public address systems and conventional 8Ω amplifiers.
• Aesthetic integration: minimalist pendant design in black, discreet and professional.

Use cases

• Museums, galleries and exhibition centers with high ceilings.
• Restaurants, cafes and hotels that require uniform background music.
• Stores and retail spaces where wide coverage reduces dead spots.
• Gyms, leisure centers and common areas in offices.
• Waiting rooms, clinics and reception areas with voice messages and background music.

Frequently Asked Questions

Is it self-powered? No. It's a passive speaker and requires an amplifier. You can use a 70/100V amplifier (recommended for multi-unit installations) or an 8Ω amplifier if you're using it in a low-impedance environment.

Can I mix power levels by zone? Yes. On a 70/100V line, select the tap (5/10/20/40W) on each speaker according to the desired level in each zone.

What cable cross-section should I use? In 70/100 V installations, 1.5–2.5 mm² is typical, depending on the length and total power. At 8 Ω, keep runs short and use enough cable to minimize losses.

Can it be used outdoors? This model is designed for indoor use. If you need weather resistance, look for models with a specific IP rating.

Installation and recommendations

• Plan the layout taking into account the 162° dispersion and the mounting height to evenly cover the area.
• In 70/100 V systems, add the selected taps to size the amplifier with margin.
• In 8 Ω (40 W) mode, check the total load if you connect multiple units to the same stage.

Project description

2-way passive pendant speaker with 6.5” woofer and tweeter, 70/100 V line operation with selectable taps of 5/10/20/40 W (100 V) and 2.5/5/10/20/40 W (70 V), 8 Ω (40 W) option, frequency response 60–22 kHz, SPL 88 dB (@1 W/1 m), dispersion 162°, ABS enclosure, black color, dimensions 252 mm (Ø) × 242 mm (height), ceiling suspended installation.
