Audibax Control 384 - 384-channel DMX512 console with 24 programmable fixtures and chases

Audibax Control 384 - 384-channel DMX512 console with 24 programmable fixtures and chases

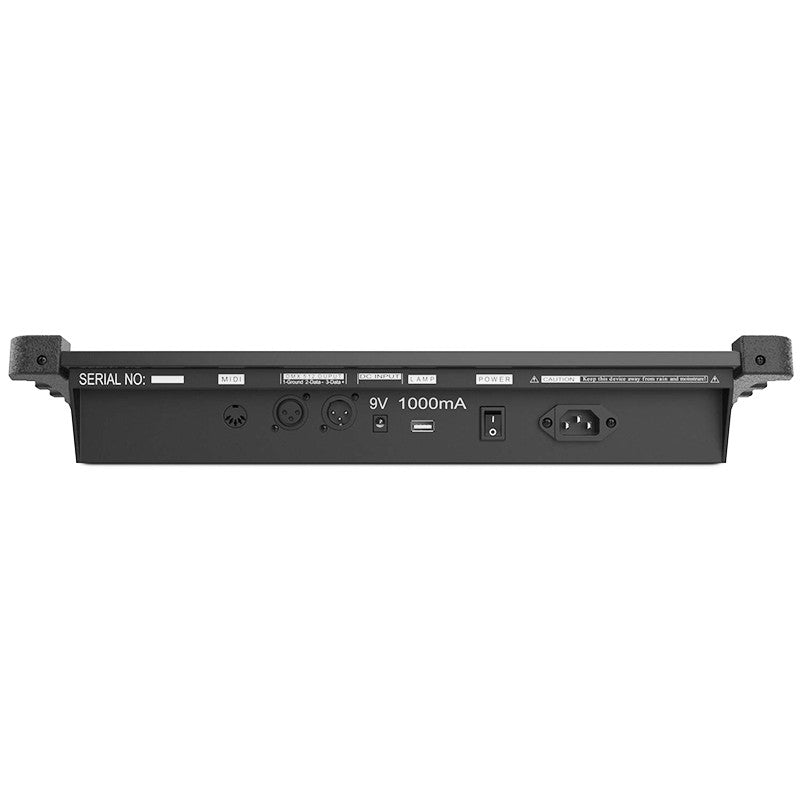

The Audibax Control 384 is a DMX512 lighting controller designed to provide smooth, reliable control of your lighting rig with a simple learning curve. It offers 384 DMX channels organized into 24 fixtures of up to 16 channels each, with 16 channel faders and paging for quick access to all parameters. It allows you to store programming in 30 banks of 8 scenes (up to 240 scenes in total) and create 6 chases of up to 240 steps, with dedicated speed and fade time control. It features music triggering via a built-in microphone, automatic or manual triggering , and a MIDI input for launching banks, chases, and blackouts from external controllers. The rear panel includes a locking 3-pin XLR connector for DMX input and output , a USB port for a gooseneck lamp , and a 9–12V DC power supply. Its black chassis, LED display , and blackout button make it a versatile console for both rental and permanent installations.

Main features

• 384 DMX channels (USITT DMX-512) to control mobile equipment, spotlights, LED bars, dimmers and effects.
• 24 fixtures × 16 channels with quick selection by fixture buttons and channel paging.
• Large memory: 30 banks × 8 scenes (up to 240 scenes); 6 chases of up to 240 steps.
• Agile editing: create, copy, insert and delete scenes or chases; Tap Sync button to adjust tempos.
• Dedicated faders: 16 channel faders, Speed ​​fader and Fade Time fader.
• Execution modes: Manual, Automatic and Music (integrated microphone).
• MIDI control: activation of banks , chases and Blackout via MIDI input.
• Safety and visibility: master Blackout button and LED display for navigation.
• DMX connectivity: XLR 3-pin (male) input and XLR 3-pin (female) output with locking.
• Power supply: DC 9–12 V (90–240 V adapter included) and USB socket for included gooseneck lamp.
• Robust construction and desktop format; black color.

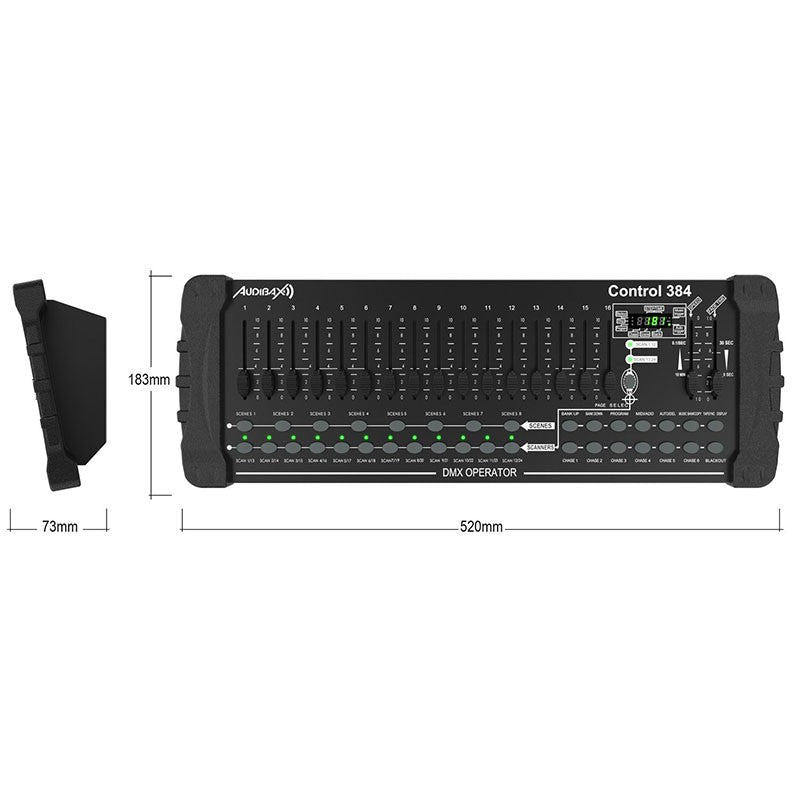

• Dimensions: 520 × 183 × 73 mm; Weight: 3.0 kg.

Product benefits

• Total control with just a few gestures: faders, paging, and dedicated buttons reduce programming time.
• Enough memory for full shows: 240 scenes and 6 chases provide ample space for live performances and DJ sets.
• Precise transitions: speed and fade faders for consistent timing and professional looks.
• Trigger versatility: You can operate by music, automatically or manually, and add MIDI if you work with external controllers.
• Hassle-free integration: standard 3-pin XLR connectors and integrated microphone for quick setup and startup.

Use cases

• Rental and mobile events: weddings, festivals, fairs, mobile discos and corporate productions.
• Fixed installation: concert halls, theaters, music bars, temples, gyms and clubs .
• Education and training: classrooms for show technique and DJ/production schools.

Frequently Asked Questions

• How many scene banks does it have? 30 banks of 8 scenes (up to 240 scenes in total), according to the official manual.
• Can it be used with sound? Yes, it has a built-in microphone for Music mode.
• Does it include a reading lamp? Yes, it includes a gooseneck LED lamp and a USB port on the panel.
• Can I trigger from a keyboard/controller? Yes, banks, chases, and blackouts are controlled via MIDI input .
• What DMX connectors does it have? 3-pin XLR with locking for data input and output .

Recommended workflow

Address your fixtures in 16-channel steps, create scenes by bank, and chain them together in chases. Adjust speed and fade with dedicated faders, use Tap Sync to beatmatch, and trigger via MIDI if needed. For long lines, terminate the DMX chain with a 120 Ω terminator at the last fixture to ensure a stable signal.

Project description

384-channel DMX512 controller; 24 fixtures × 16 channels; 30 banks × 8 scenes (240 scenes) and 6 chases up to 240 steps; Manual/Auto/Music modes; MIDI input; 16 channel faders, speed and fade faders; Blackout button; LED display; 3-pin XLR (male) DMX input and 3-pin XLR (female) DMX output with locking switch; USB lamp socket; DC 9–12 V power supply (90–240 V adapter); dimensions 520 × 183 × 73 mm; weight 3.0 kg; color black.
