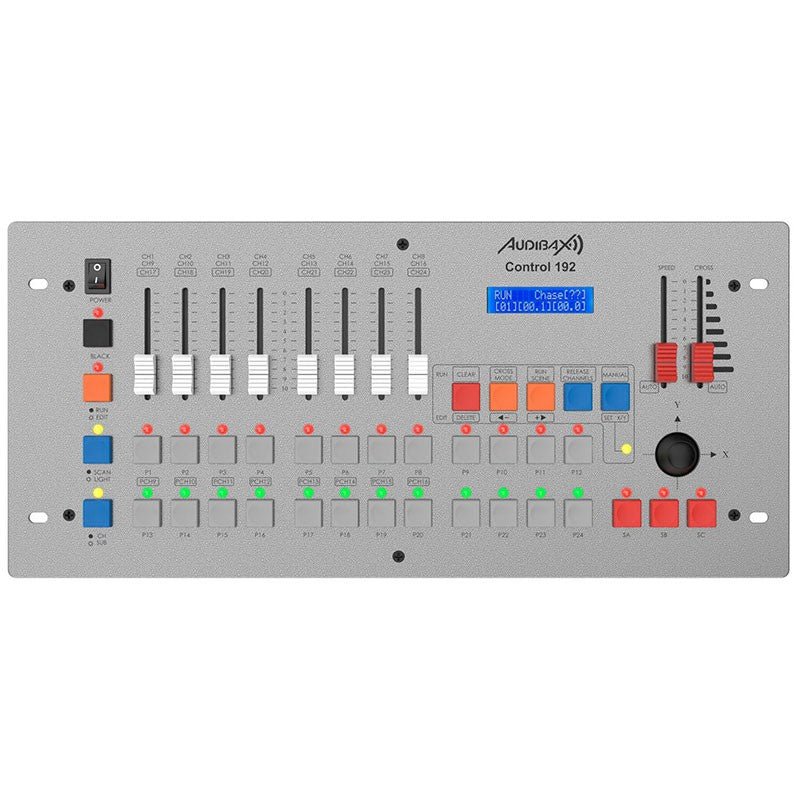

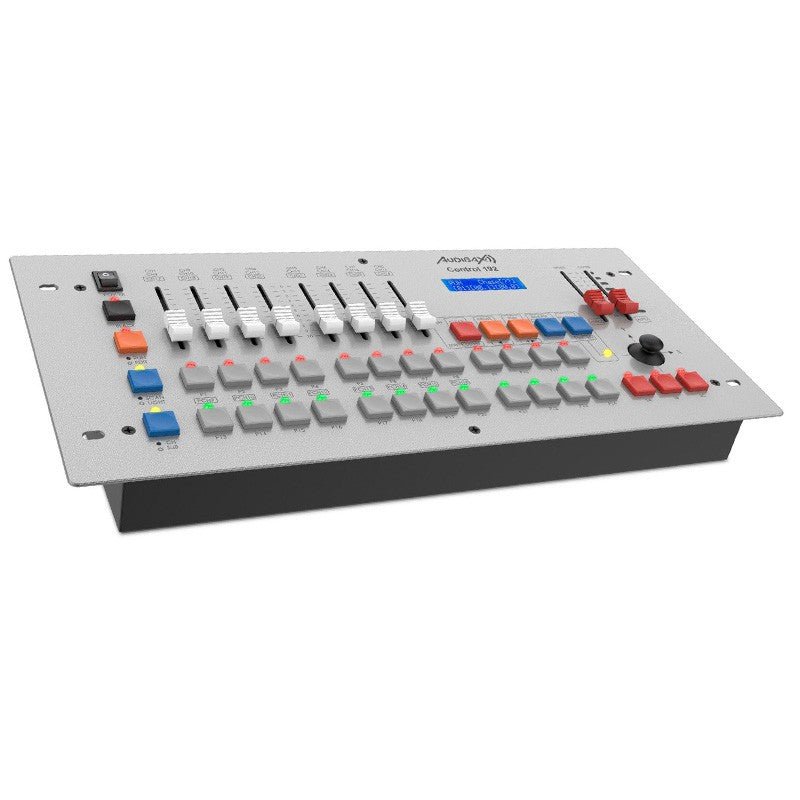

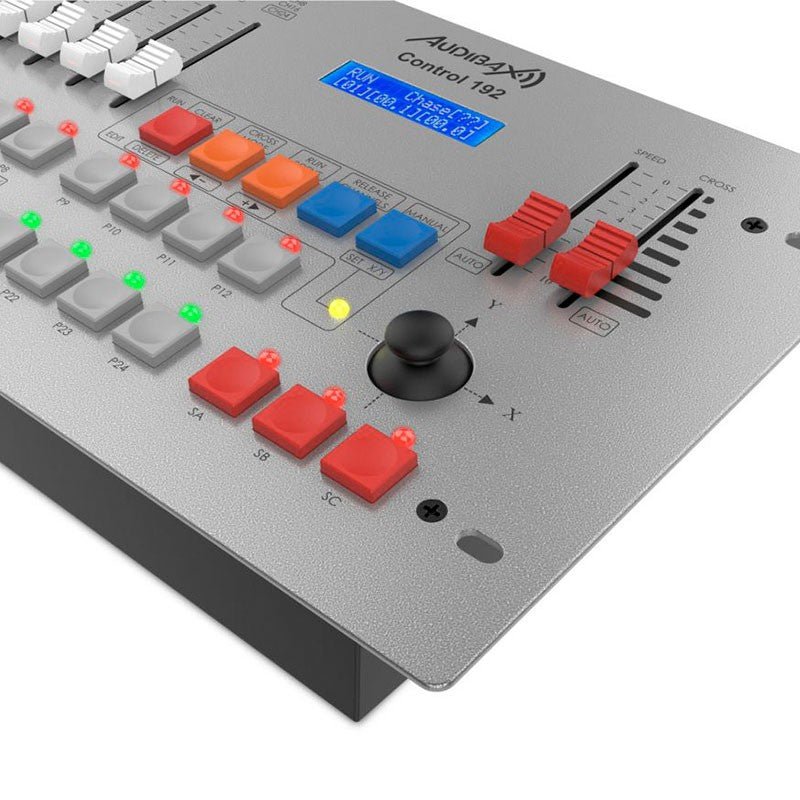

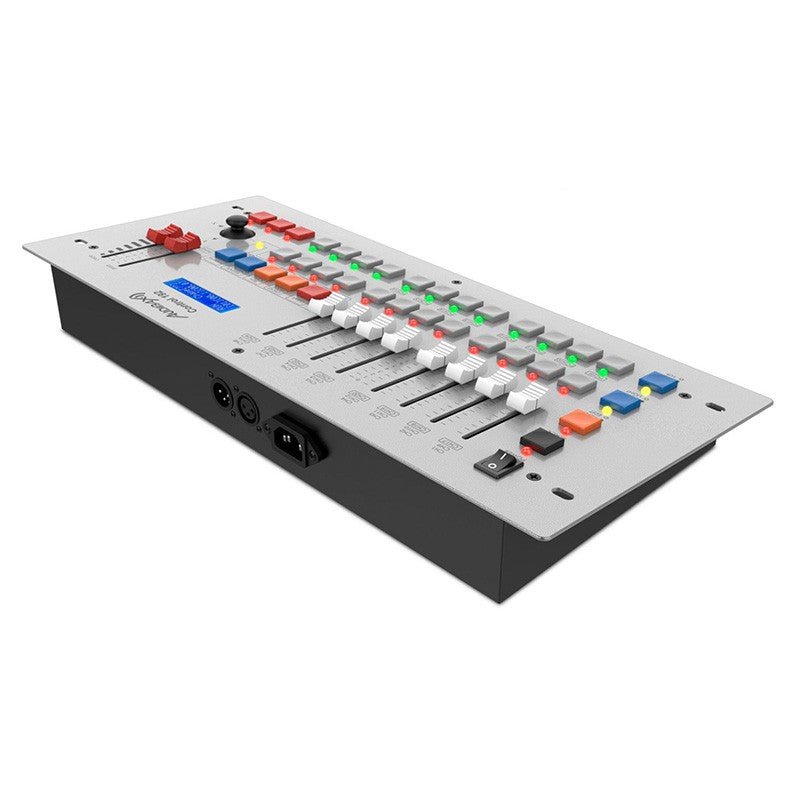

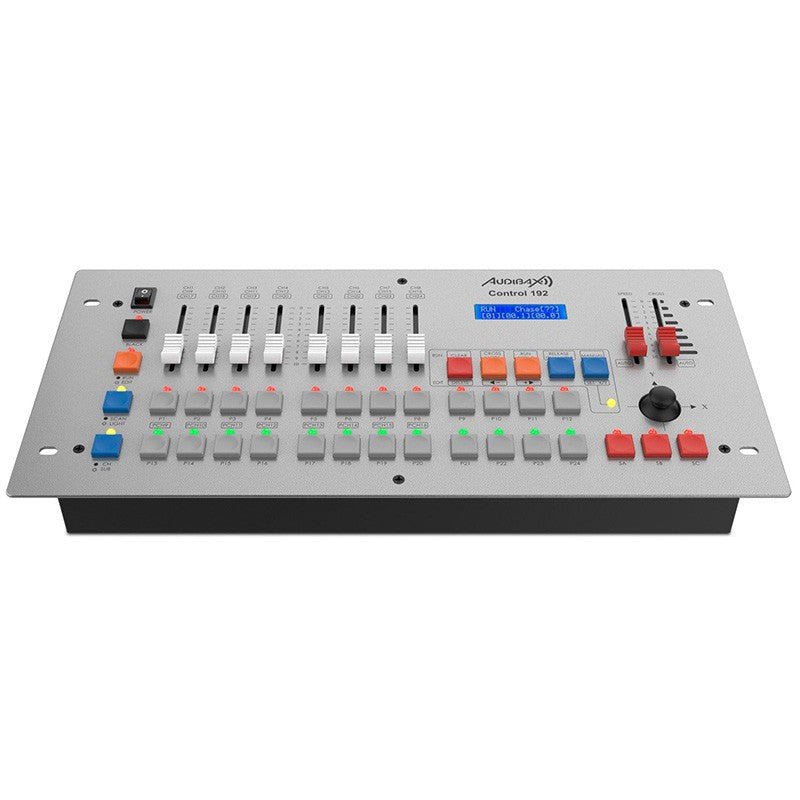

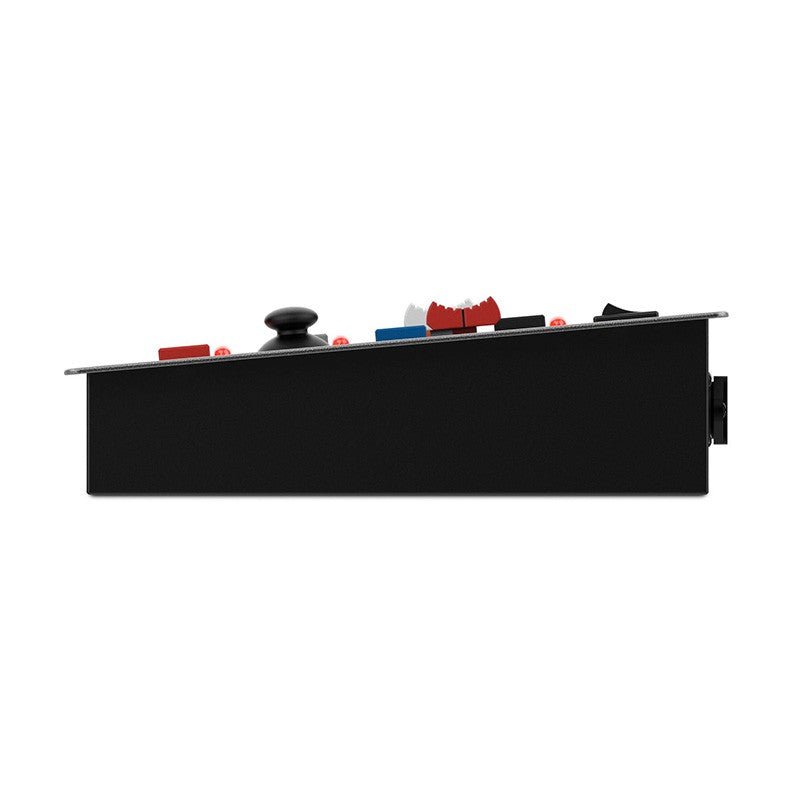

Audibax Control 192 - 192-Channel DMX512 Controller

192-Channel DMX512 Controller | Audibax Control 192

• The Audibax Control 192 is a DMX 512 controller, which has 192 channels
• Capable of controlling 12 fixtures with 16 DMX channels each.
• Total number of channels: 192 channels
• Control of 12 fixtures with 16 DMX channels each
• Program 30 banks of 8 steps per scene
• 19" rack format

• Characteristics
  • It has the possibility of programming 30 banks of 8 steps per scene
  • Works in manual, stand-alone and sound modes

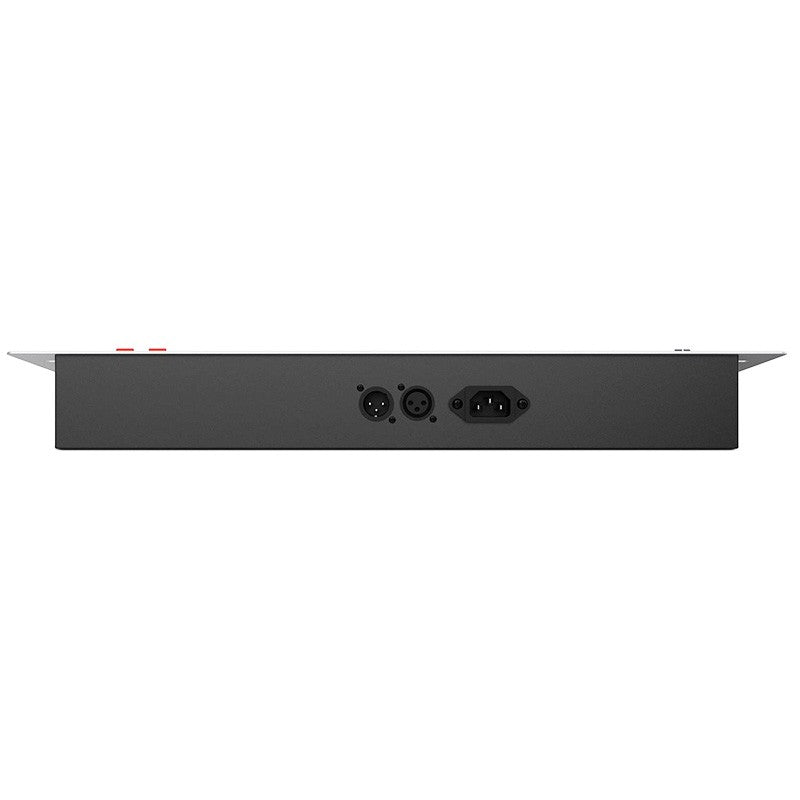

  • On the back it has a 3-pin XLR connector for DMX512 output.

• Specs
  • Number of channels: 192
  • Control of 12 fixtures with 16 DMX channels each
  • Control Mode: Manual, Auto, Sound
  • Possibility of pre-programming chases and sequences on faders
  • Control scene time and chase time.
  • International standard DMX512 output signal specifications
  • Program 30 banks of 8 steps per scene
  • Maximum number of chase steps (scene): 40 steps
  • Total number of chase steps (scene): 480 steps
  • Scene pause time: 0.1-25.5 seconds/step
  • Scene crossing speed: 0.1-25.5 seconds
  • Dimmer channel: 24
  • LCD display screen, 16×2 characters
  • DMX512 output interface 3-pin XLR connector
  • Memory Capacity: 128K High Capacity Memory Card
  • Voltage: 220-240V 50/60Hz

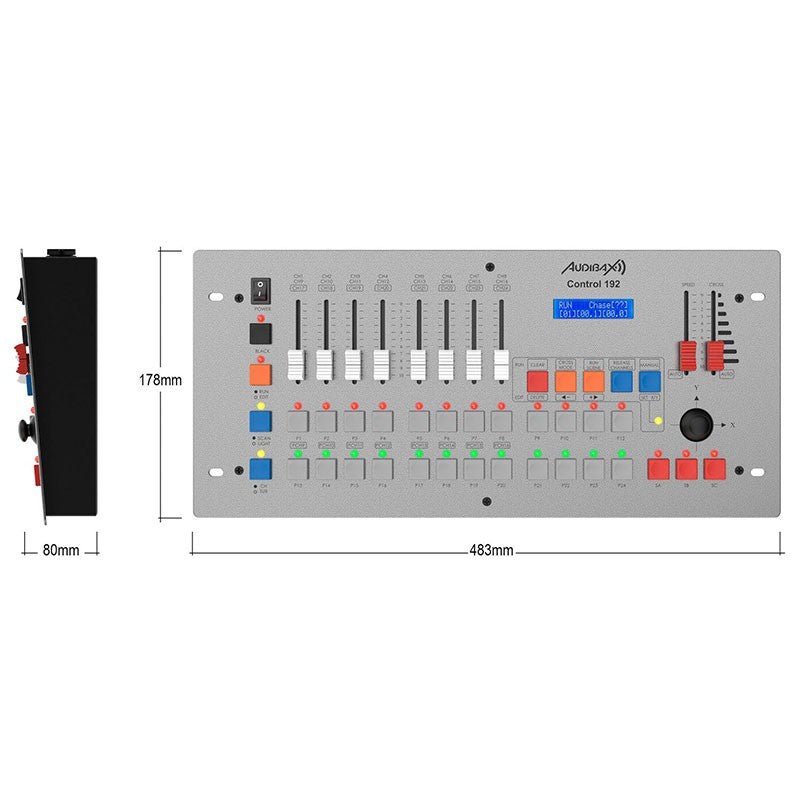

  • Measurements: 483 × 178 × 80 mm (19" rack format)
  • Weight: 3.25 kg

• Package contents

  • 1 Control 192
  • 1 User Manual

• ID
  • Brand: Audibax
  • Model: Control 192
  • Order code: 10223691
  • EAN code: 7427244398329
