Audibax Haze 1500 PRO - Professional 1500W Hazer-type machine with continuous output and DMX control

Audibax Haze 1500 PRO - Professional 1500W Hazer-type machine with continuous output and DMX control

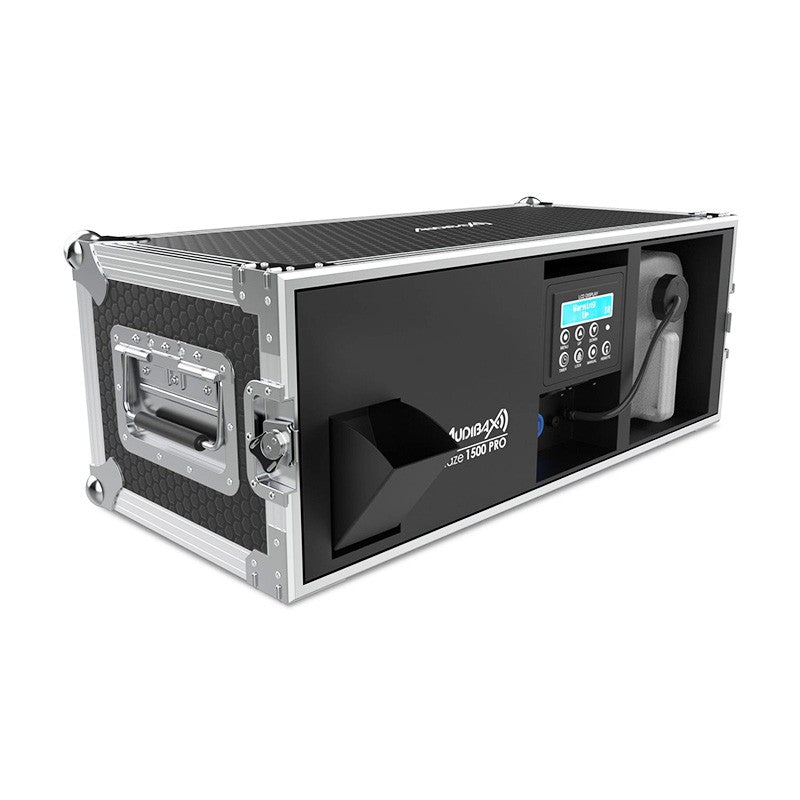

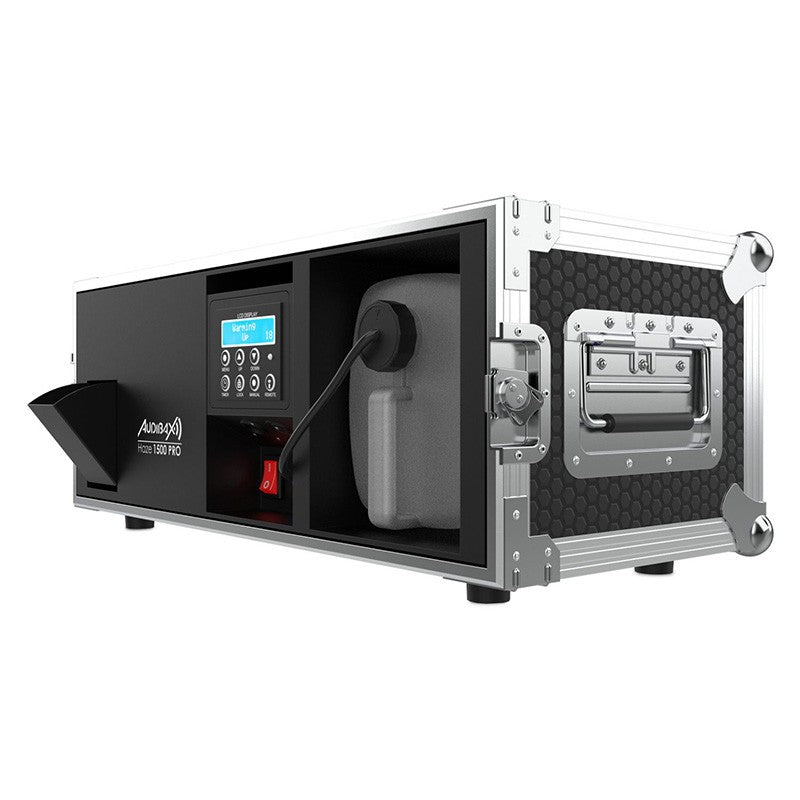

The Audibax Haze 1500 PRO is a hazer-type fog machine designed to create a fine, homogeneous, and stable curtain of fog that enhances light beams without saturating the environment. With 1500W of power , ultra-fast 2-minute warm-up time , and continuous output after preheating , it allows for precise ambiance creation in stages, theaters, nightclubs, film studios, and corporate events. Its 3.1-liter tank offers extended runtime, and the 2-channel DMX-512 controller independently adjusts the fog output and fan speed . It features a 3-pin XLR DMX input/output , a 4-digit LCD screen with 4 pushbuttons for configuration, and is powered by a 16A PowerCON . It operates in DMX mode or autonomously (manual/timer), with a production rate of 350 m³/min in a robust IP20-rated enclosure with a black finish.

Main features

• Power and performance: 1500W, flow rate of 350 m³/min and heating in 2 minutes .
• Continuous output: stable mist emission after preheating for prolonged environments.
• DMX-512 control (2 channels): CH1 fog output, CH2 fan speed.
• Operating modes: DMX, standalone (manual/timer) with fine volume and fan adjustment.

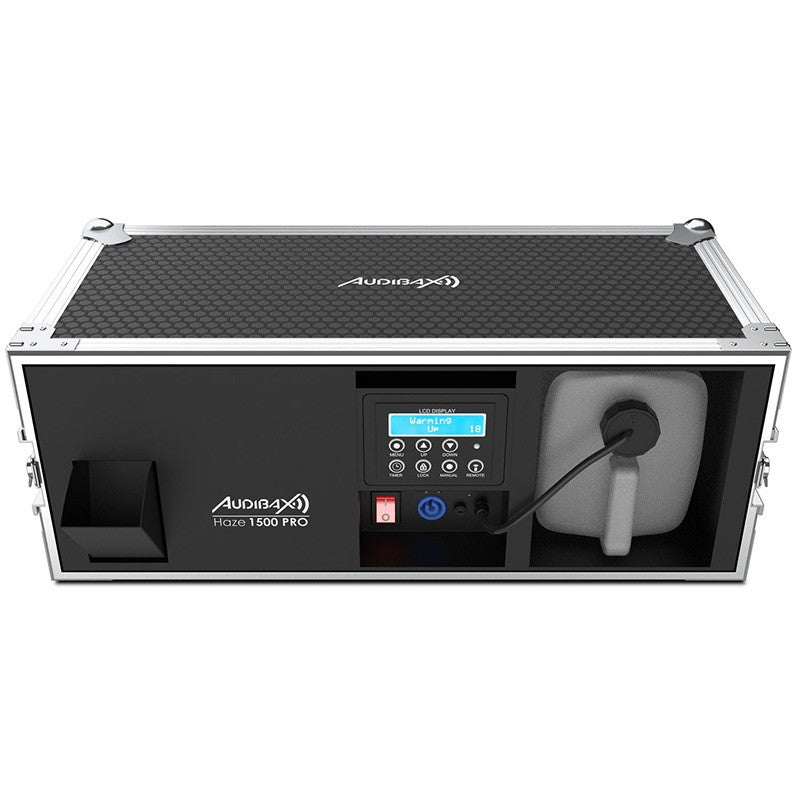

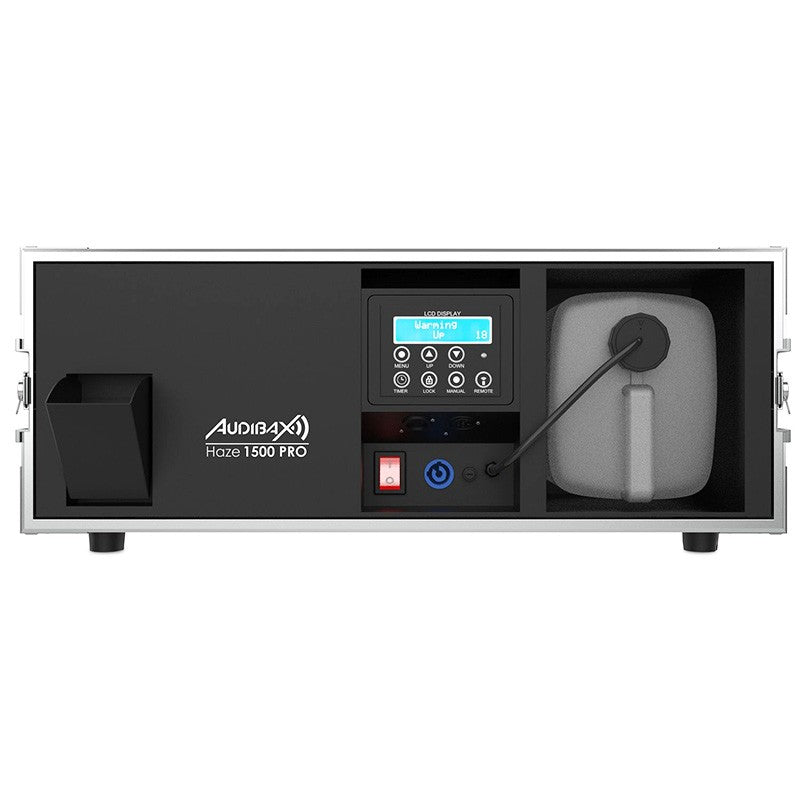

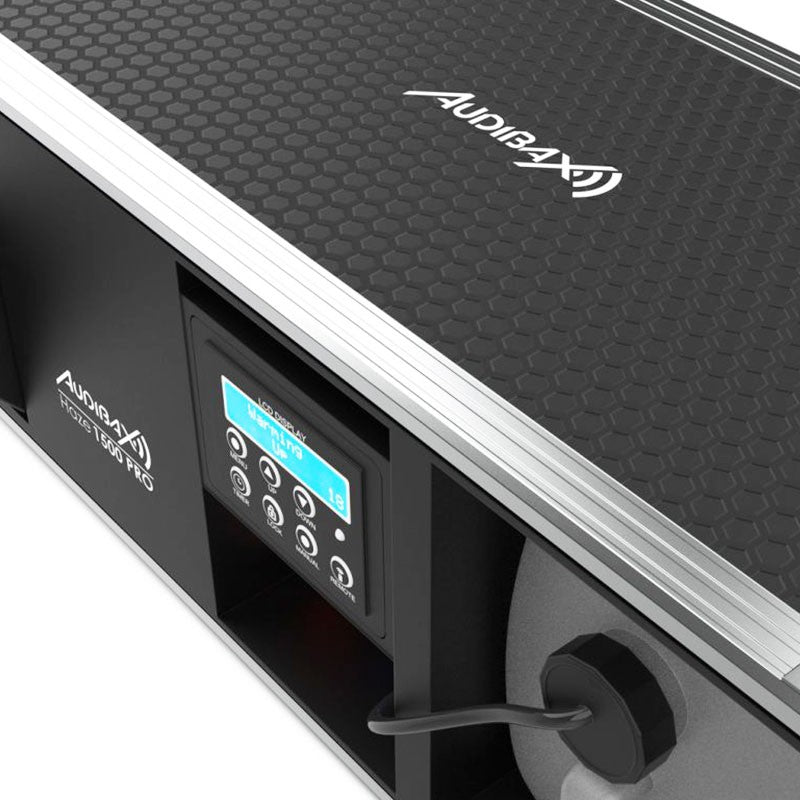

• Professional interface: 4-digit LCD screen and 4 navigation/adjustment keys.
• Connectivity: DMX In/Out via 3-pin XLR ; PowerCON 16A power supply.
• Long autonomy: 3.1 L tank for extended sessions.
• Indoor design: IP20 rating, black color.

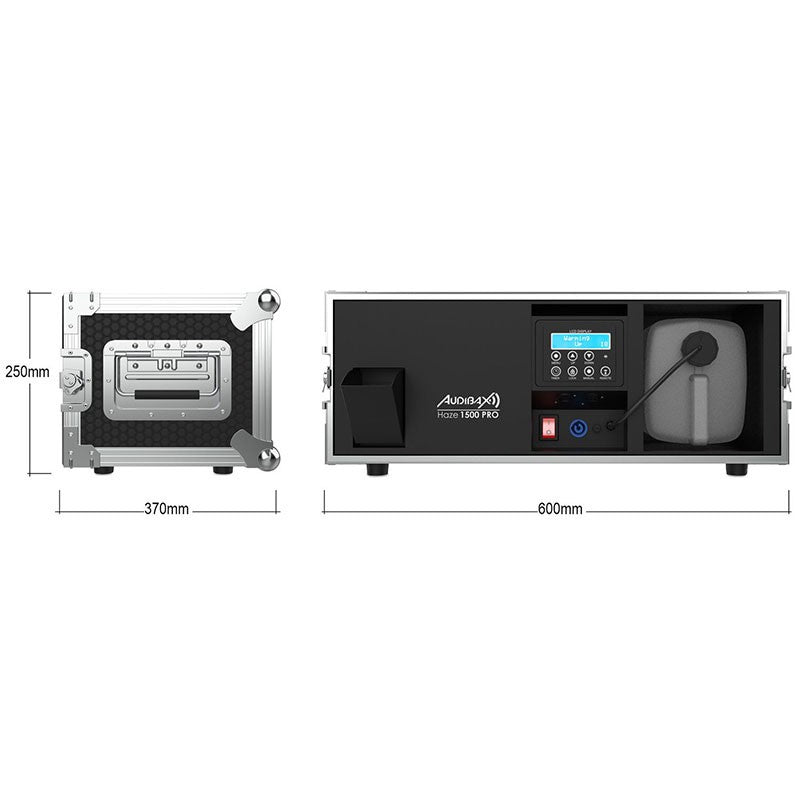

• Practical format: 600 × 370 × 250 mm and 15.8 kg .

Product benefits

• Professional ambiance without saturation: fine mist that enhances the beams of spotlights, moving heads and lasers.
• Precise effect control: instantly adjust density and projection thanks to dual control (haze + fan).
• Ready to show in minutes: just 2 minutes of preheating and continuous operation.
• DMX rig integration: simple addressing and daisy-chaining via 3-pin XLR.
• Versatile operation: standalone mode with manual and timer when no console is available.

Use cases

• Events and clubs: uniform ambiance that enhances the lighting without creating dense clouds.
• Theatre and dance: subtle atmosphere for volume of light and scenic depth.
• Concerts and tours: stable fog for beam effects and defined gobos.
• TV and streaming studios: controlled and repeatable haze with DMX settings.
• Corporate and trade fairs: stand enhancement, mapping and presentations.

Frequently Asked Questions

• How long does it take to become operational? Approximately 2 minutes of initial warm-up.
• Is the output continuous? Yes, after warm-up it maintains a continuous, adjustable output .
• How many DMX channels does it use? 2 channels : fog output (CH1) and fan (CH2).
• What connections does it include? DMX In/Out XLR 3 pins and PowerCON 16A power supply.
• What fluid should I use? Water-based hazer fluids, such as Audibax HF-5 Hazer Fluid or Triton Blue Hydra NHF5 (832-1062) .
• Is it suitable for outdoor use? It has an IP20 rating; recommended for indoor use or under adequate protection.

Control and connection modes

In DMX-512 mode , it assigns the initial address and controls two channels: CH1 regulates the amount of mist, and CH2 regulates the fan speed. In standalone mode , the LCD screen allows you to select the output volume, fan speed, and timer; it also features manual triggering (100% output) and a LOCK function. Connectivity is via 3-pin XLR (input/output), and power is supplied by a universal-range 16A PowerCON AC adapter (110–240V 50/60 Hz) .

Maintenance and best practices

• Always use water-based liquids recommended by the manufacturer.
• Allow the warm-up cycle to complete before forcing the exit.
• Empty the tank after long periods of non-use and keep the unit indoors (IP20) .
• Follow the cleaning procedures outlined in the manual to preserve the heating block.

Recommended fluids

For a fine, neutral haze with no visible residue, Audibax HF-5 Hazer Fluid (5 L) and Triton Blue Hydra NHF5 (832-1062, 5 L) are recommended, both water-based and odorless, compatible with hazer machines with a heating block.

Project description

Professional indoor hazer machine; 1500W power; 2 min warm-up time; 350 m³/min output; 3.1 L tank; DMX-512 modes (2 channels: haze/fan) and stand-alone (manual/timer); DMX In/Out XLR 3-pin connectivity; 4-digit LCD + 4-key control; PowerCON 16A power supply; AC 110–240V 50/60 Hz voltage; IP20; black color; dimensions 600 × 370 × 250 mm; weight 15.8 kg.
