Audibax Volcano 1500 RGBW - CO₂ Effect Smoke Machine with 24 RGBW LEDs (1500 W) and DMX/IR Control

Audibax Volcano 1500 RGBW - CO₂ Effect Smoke Machine with 24 RGBW LEDs (1500 W) and DMX/IR Control

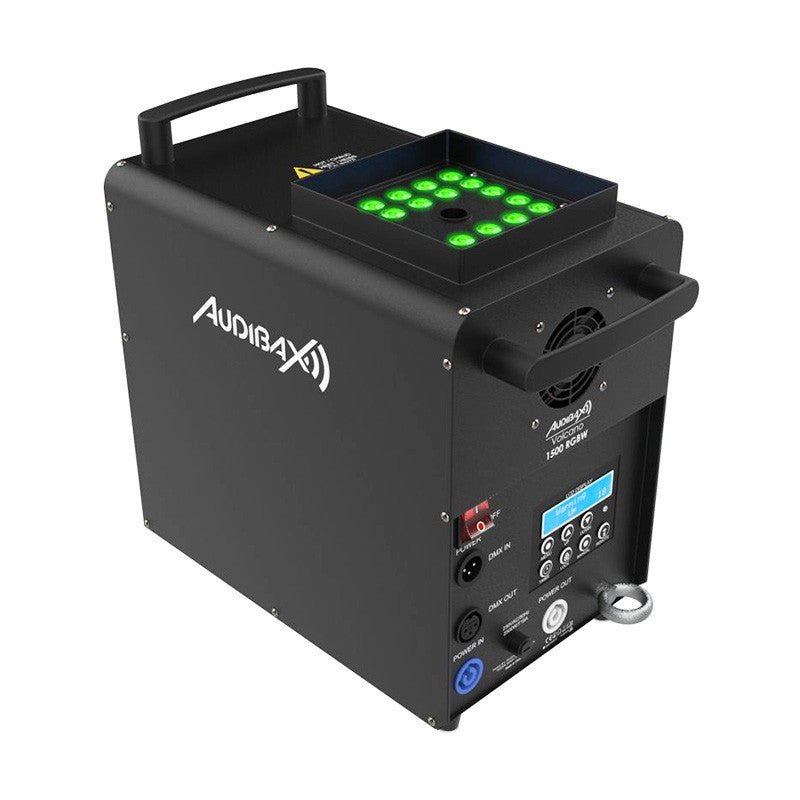

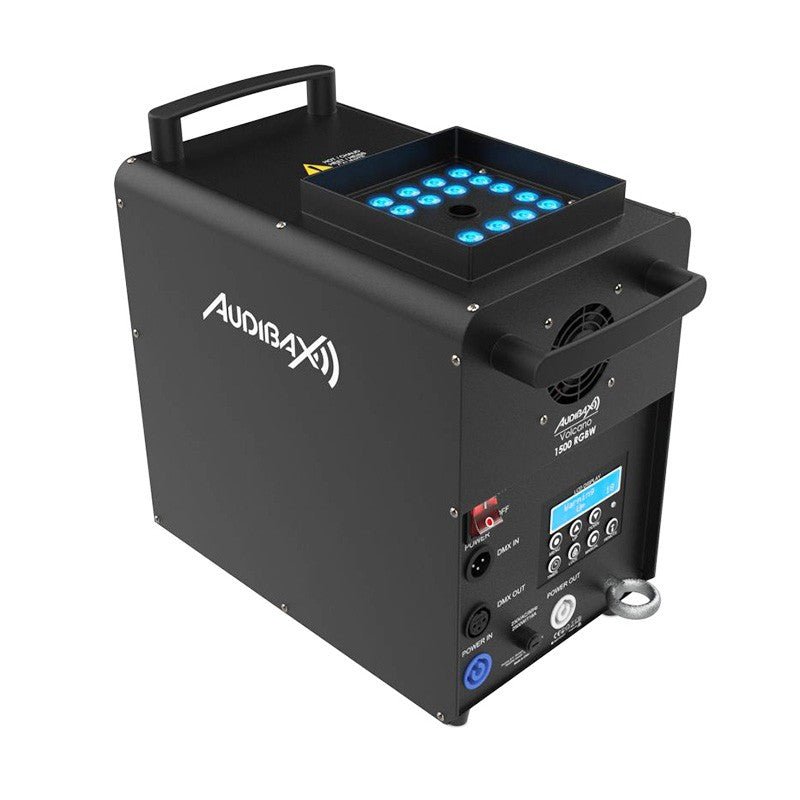

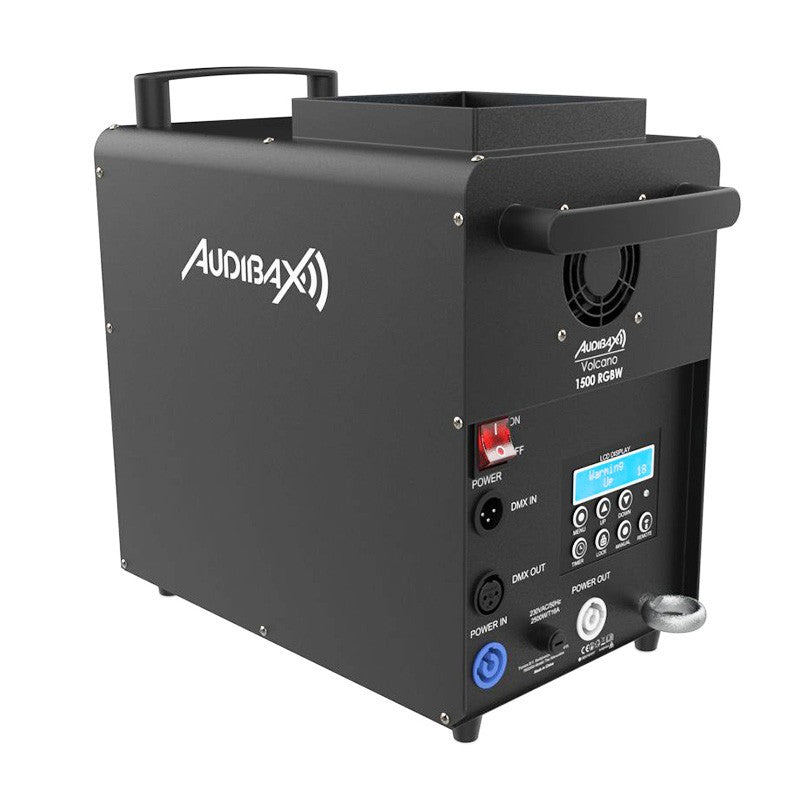

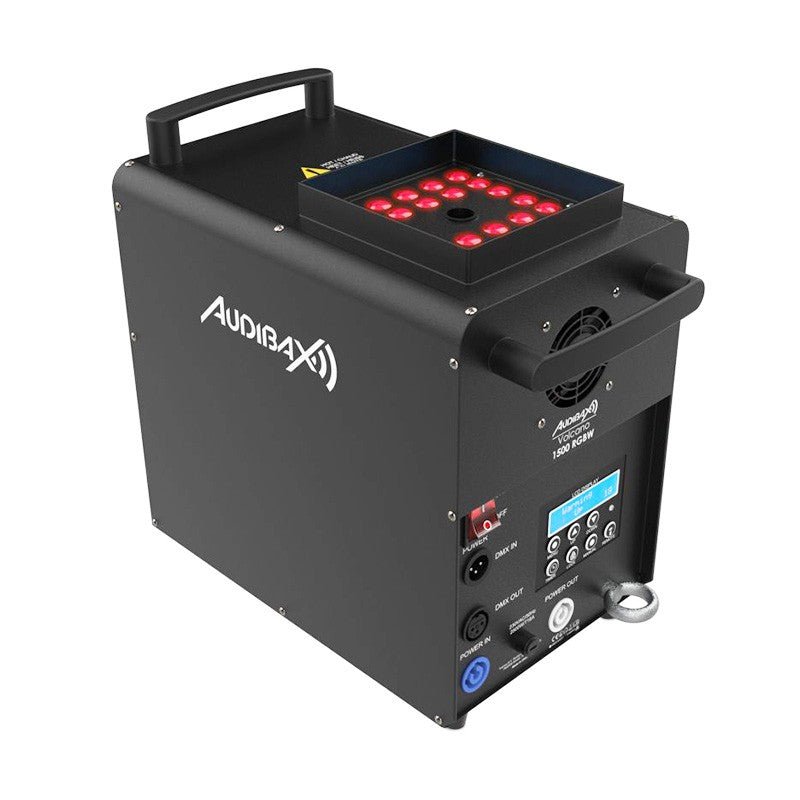

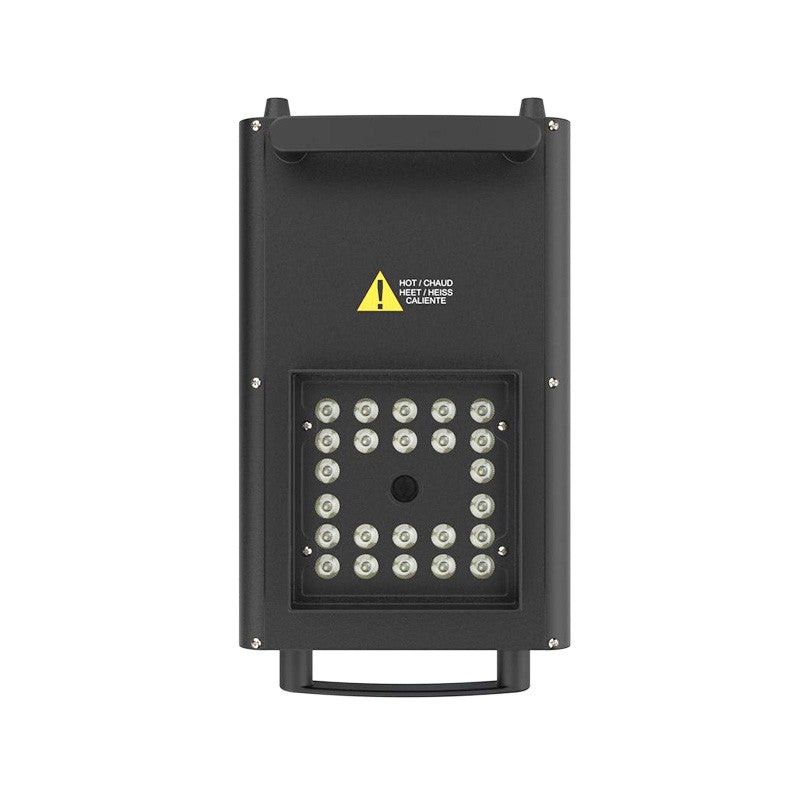

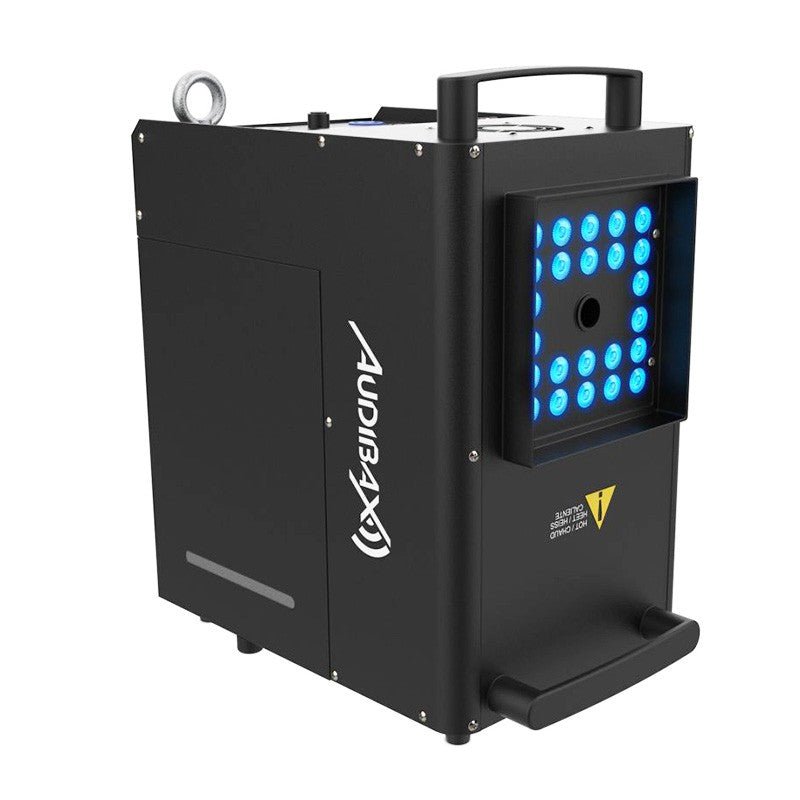

The Audibax Volcano 1500 RGBW is a high-performance effects machine designed for events, venues, and stages seeking the classic CO₂-style smoke "geyser," enhanced by a powerful 24 x 10W (240W) RGBW LED light source. Its 3.5-liter tank and 530 m³/min flow rate generate dense, well-defined columns of smoke, while the integrated lighting colors the stream in red, green, blue, or white for striking transitions and visual impacts. It features a digital display with a timer, operates in standalone mode , DMX , and via IR remote control , and supports horizontal and vertical orientations to adapt the direction of the effect to your stage setup.

Control is simplified with a 6-channel DMX profile that manages smoke intensity, LED dimming, colors, and strobe, plus a non-return valve for reliable operation. Powered by 110–240 V AC 50/60 Hz , with a black metal chassis and a compact form factor ( 370 × 190 × 350 mm ), the Volcano 1500 RGBW integrates easily into trusses, platforms, and booths without sacrificing power or versatility.

Main features

• Effect: vertical/horizontal CO₂ type jet with integrated LED coloring.
• Heater power: 1500 W.

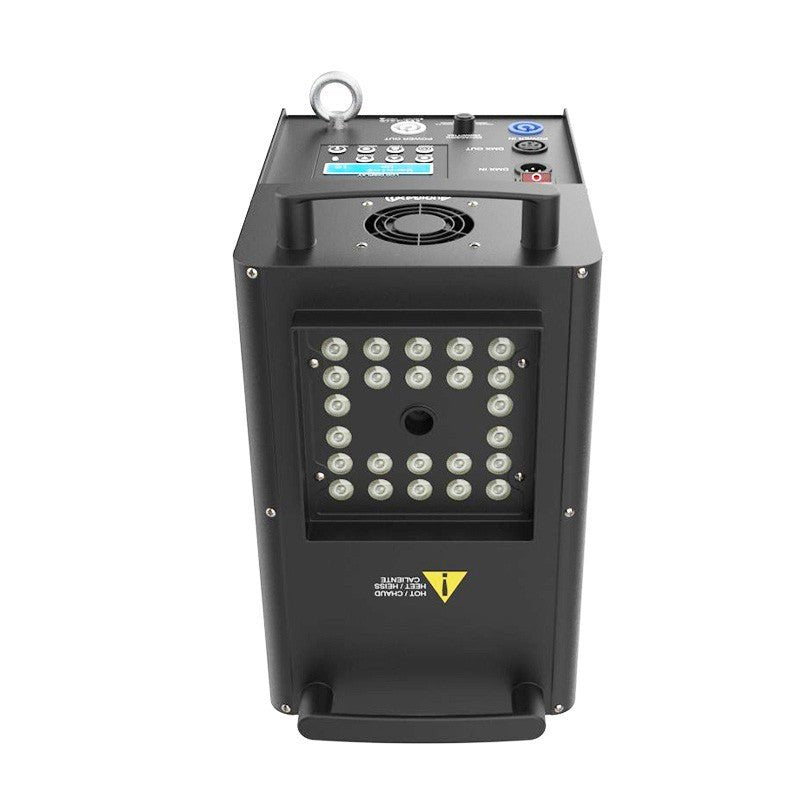

• Light source: 24 × 10 W RGBW LEDs (240 W total).
• Tank: 3.5 L with non-return valve .
• Smoke output: 530 m³ per minute.
• Warm-up time: 4 minutes.
• Operating modes: DMX, Autonomous (Auto) and IR remote control.
• DMX control: 6-channel profile (smoke intensity, LED dimmer, R/G/B, strobe).

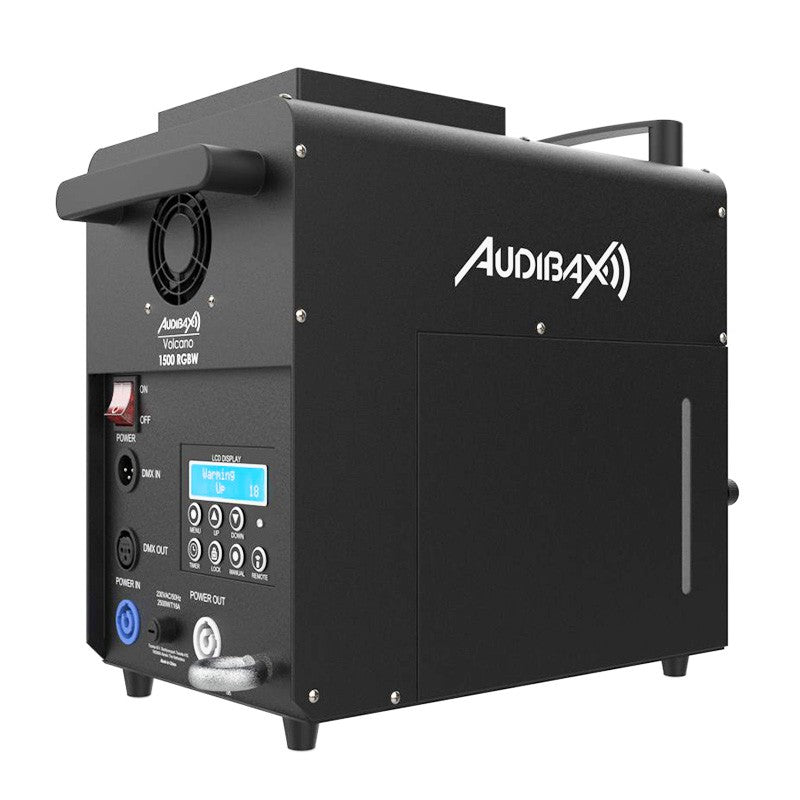

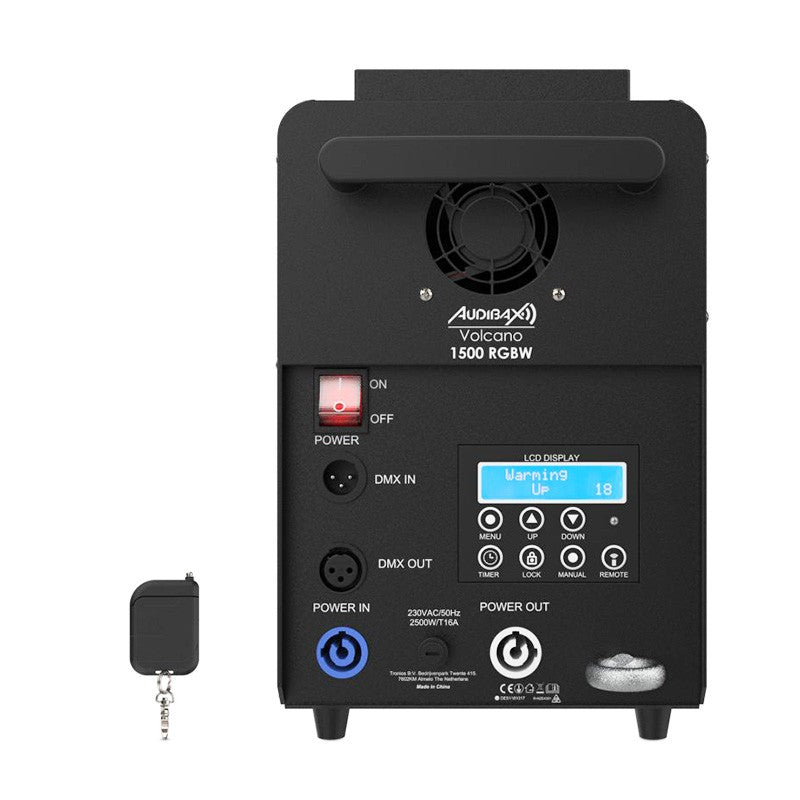

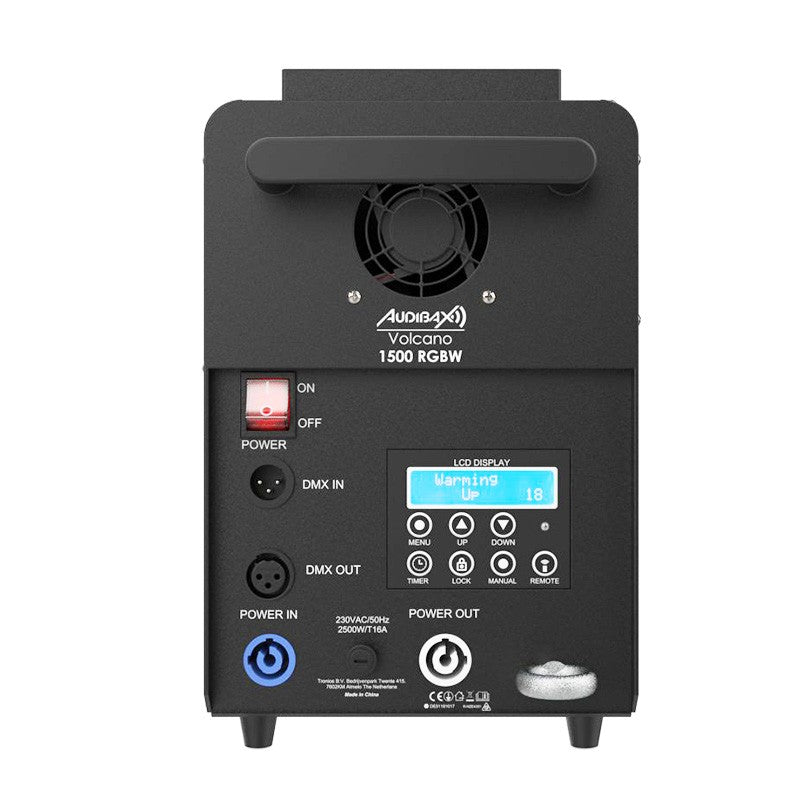

• Interface: digital display with timer and settings menus.
• Power supply: AC 110–240 V, 50/60 Hz.
• Orientation: vertical or horizontal use.

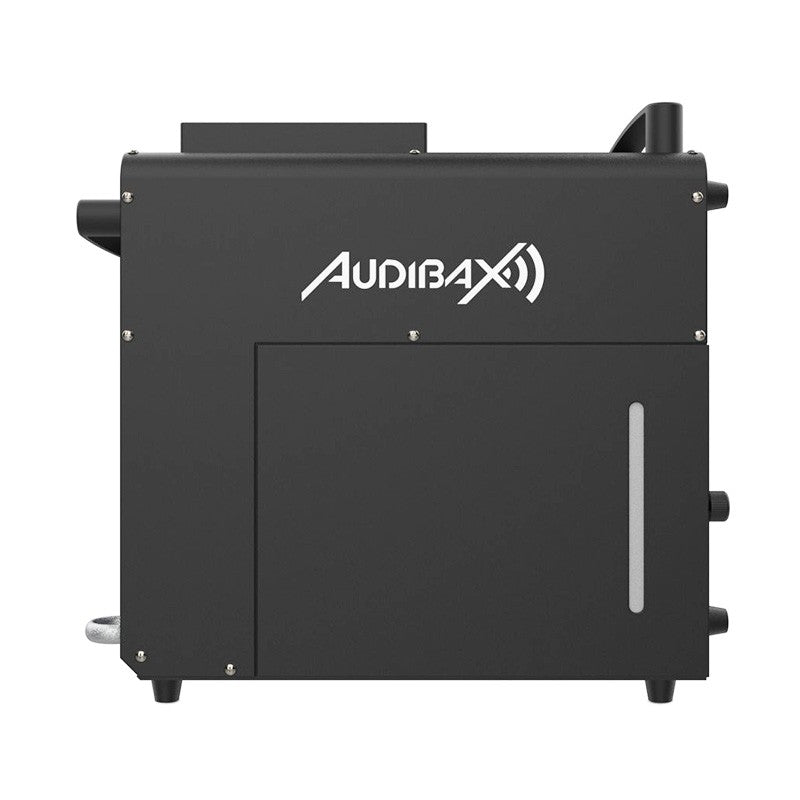

• Construction: metal chassis, black color.
• Use: indoors (IP20).

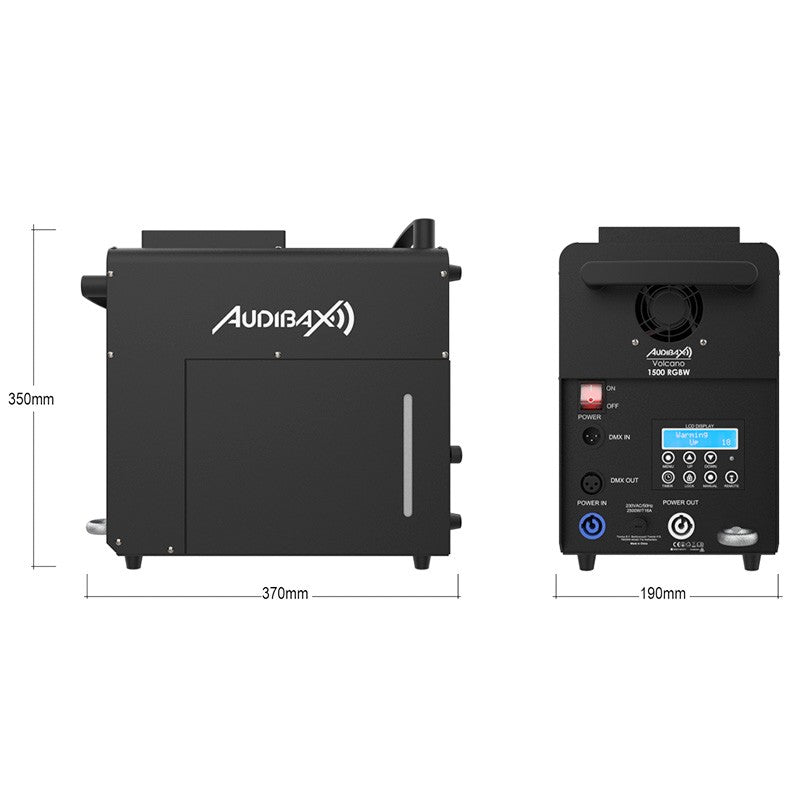

• Dimensions: 370 × 190 × 350 mm.

Product benefits

• Immediate visual impact: dense and well-defined columns of smoke, with RGBW LED color for dramatic impacts and transitions.
• Quick setup: built-in timer, Auto/IR modes and simple DMX profile for seamless integration into any show.
• Constant and reliable flow: 3.5 L tank and non-return valve that optimize fluid supply and reduce incidents.
• Versatile mounting: works horizontally or vertically to adapt the effect to stages, catwalks, booths and fronts.
• Professional format: universal 110–240 V power supply and robust metal chassis for intensive use in rental and fixed installation.

Use cases

• Live shows and festivals: bursts of smoke in rhythm with color for climaxes and drops.
• Clubs and corporate events: vertical effects synchronized with music or lighting cues.
• Theater and shows: fast entrances and transitions with centralized DMX control.
• Fixed installation: DJ booths, multipurpose rooms and indoor leisure venues.

Frequently Asked Questions

• What smoke fluid should I use? Use a good quality smoke fluid recommended for 1500W machines. Do not mix fluids or use unsuitable fluids.
• ¿Incluye mando a distancia? El equipo puede operarse mediante mando IR ; consulta el contenido del paquete de tu distribuidor. El control directo se realiza desde la pantalla y por DMX.
• ¿Cuántos canales DMX utiliza? El perfil es de 6 canales (humo, dimmer LED, R, G, B y estrobo), lo que facilita la programación básica de colores y golpes.
• Can it be used outdoors? Its IP20 rating makes it suitable for indoor use or locations protected from rain and humidity.
• Warm-up time? Approximately 4 minutes from cold.

Good usage practices

• Before the show: periodically purge and rinse the system with clean water as indicated in the manual to avoid blockages.
• Mounting: Secure the unit on a stable surface; ensure adequate ventilation and smoke jet clearance. For DMX control, terminate the line with 120 Ω at the last device.
• Safety: Use only indoors, away from direct heat sources, liquids, and flammable materials.

Project description

1500W CO₂ effect smoke machine with 24 x 10W RGBW LED lighting; 3.5L tank; 530 m³/min output; 4 min warm-up time; Auto/DMX/IR modes; 6-channel DMX control; digital display with timer; IP20 indoor use; AC 110–240V 50/60Hz power supply; vertical or horizontal orientation; black metal chassis; dimensions 370 x 190 x 350 mm.
