Audibax Thunder 450 RGB – Pixelable LED Strobe/Blinder/Wash (984 LEDs, 6/16/42 CH, 0–30 Hz)

Audibax Thunder 450 RGB – Pixelable LED Strobe/Blinder/Wash (984 LEDs, 6/16/42 CH, 0–30 Hz)

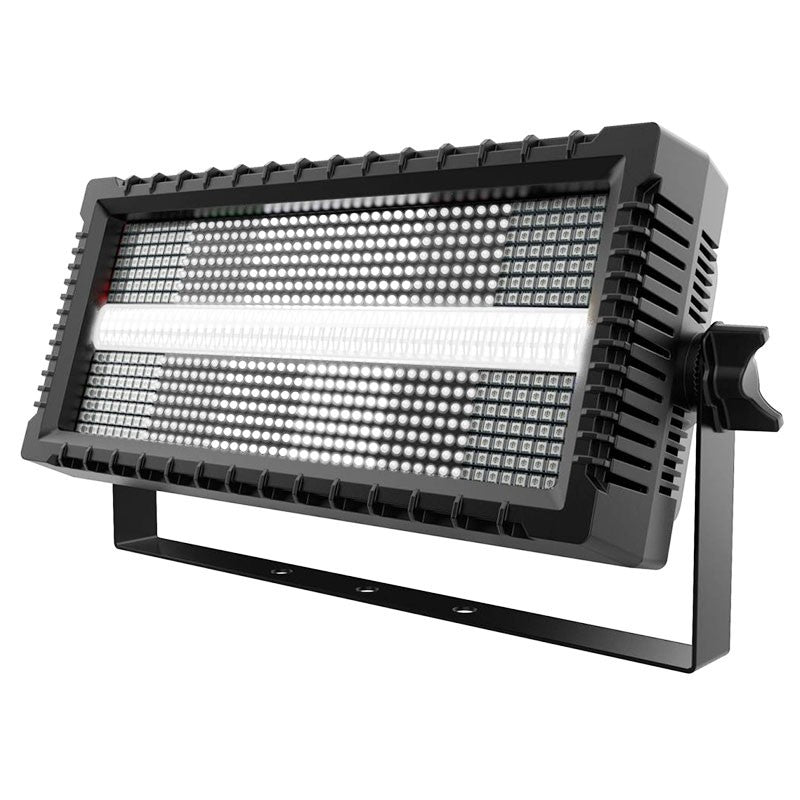

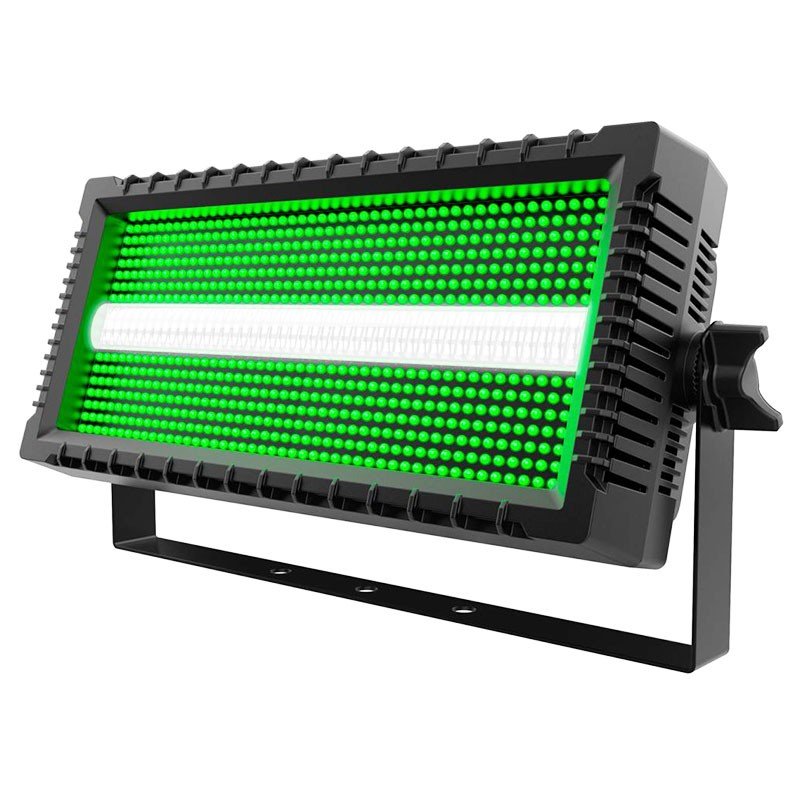

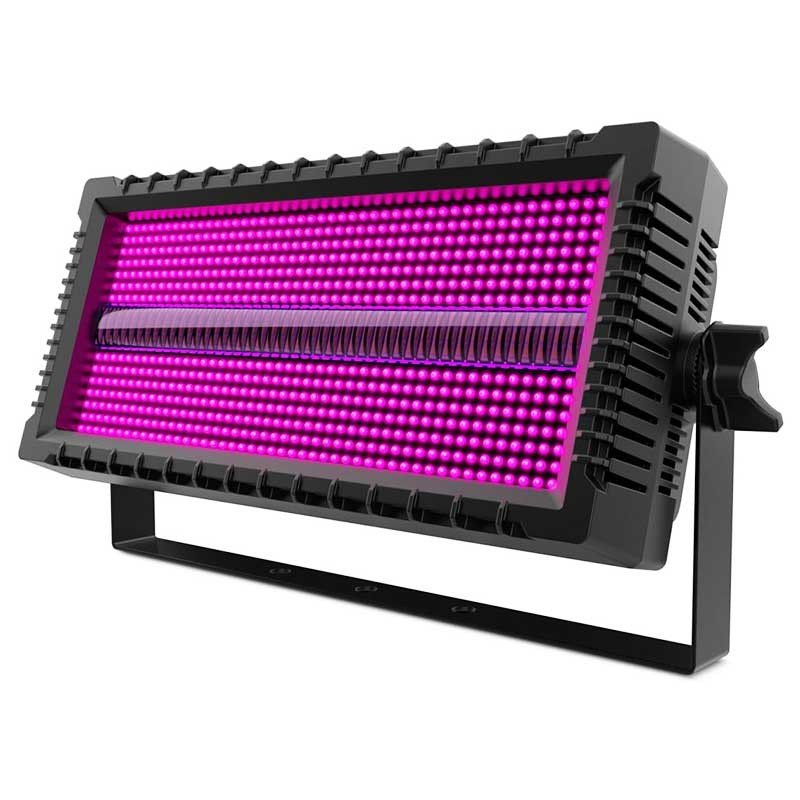

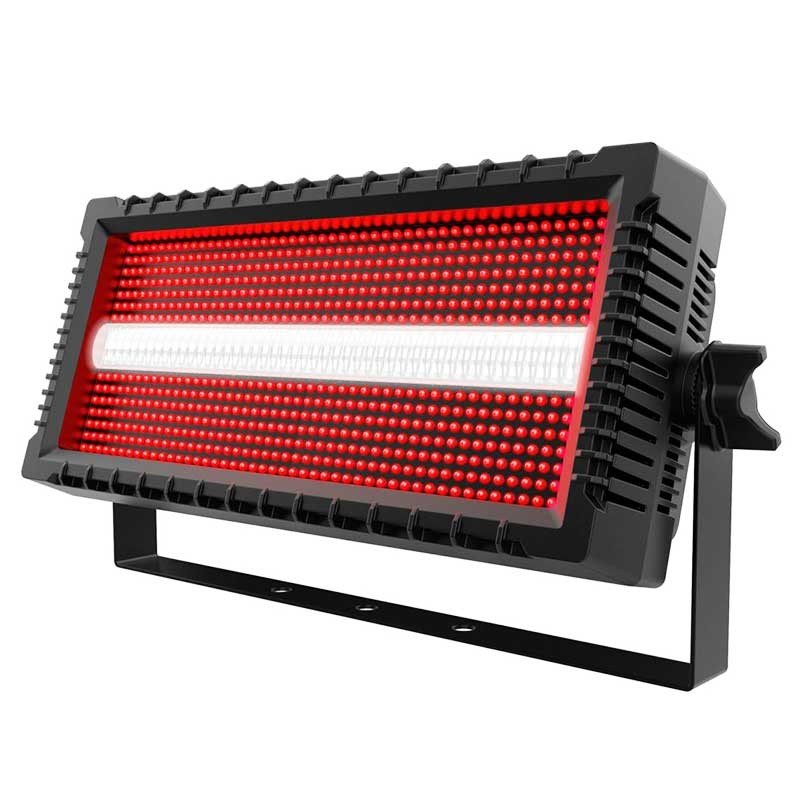

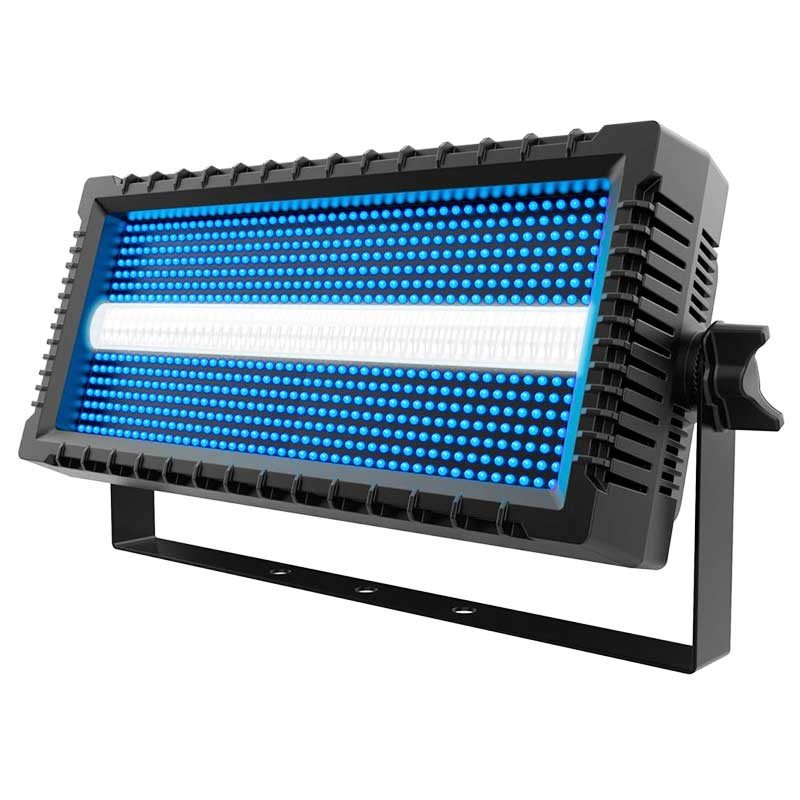

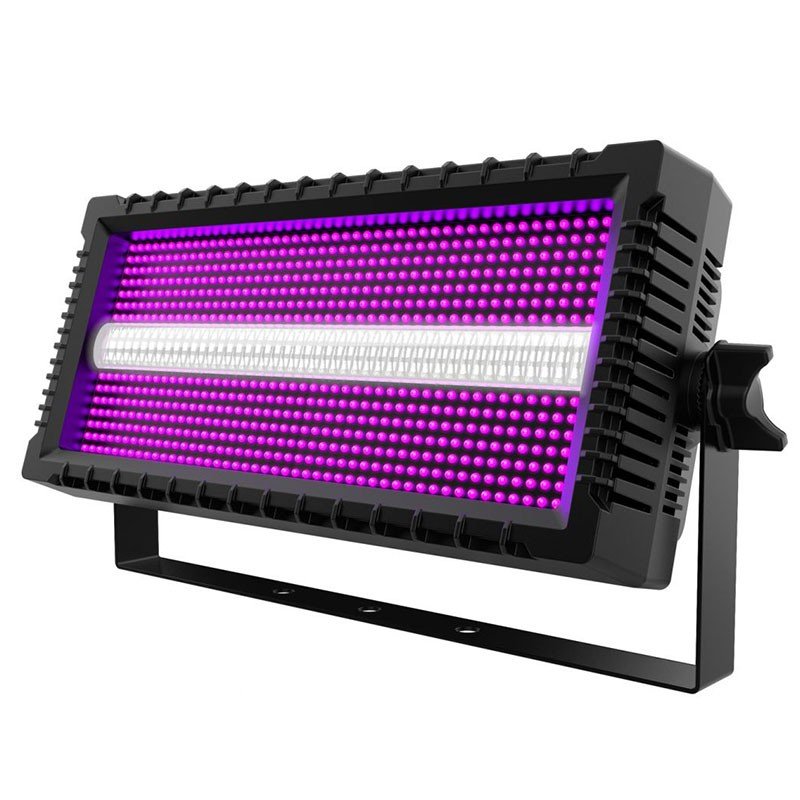

The Audibax Thunder 450 RGB combines a strobe , blinder , and wash with pixel mapping into a single projector. Its matrix combines 216 1W white LEDs for the strobe/blinder and 768 0.4W 3-in-1 RGB LEDs for the color "aura" ( 984 LEDs in total ), achieving powerful flashes, smooth fades, and advanced color effects. It operates with 18 pixelable blocks (12 RGB + 6 white) and offers 6, 16, and 42-channel DMX512 modes , as well as master-slave, automatic, and manual operation. The white beam uses 80° optics, and the color aura covers 120° , with 0–100% dimming and a strobe frequency of 0–30 Hz . It incorporates silent fans , a fire-resistant plastic housing and 3/5 pin XLR DMX and powerCON connections, in a compact and lightweight format for indoor installation (IP20) .

Main features

• Hybrid light source: 216 white LEDs 1W (strobe/blinding) + 768 RGB LEDs 0.4W (color aura).

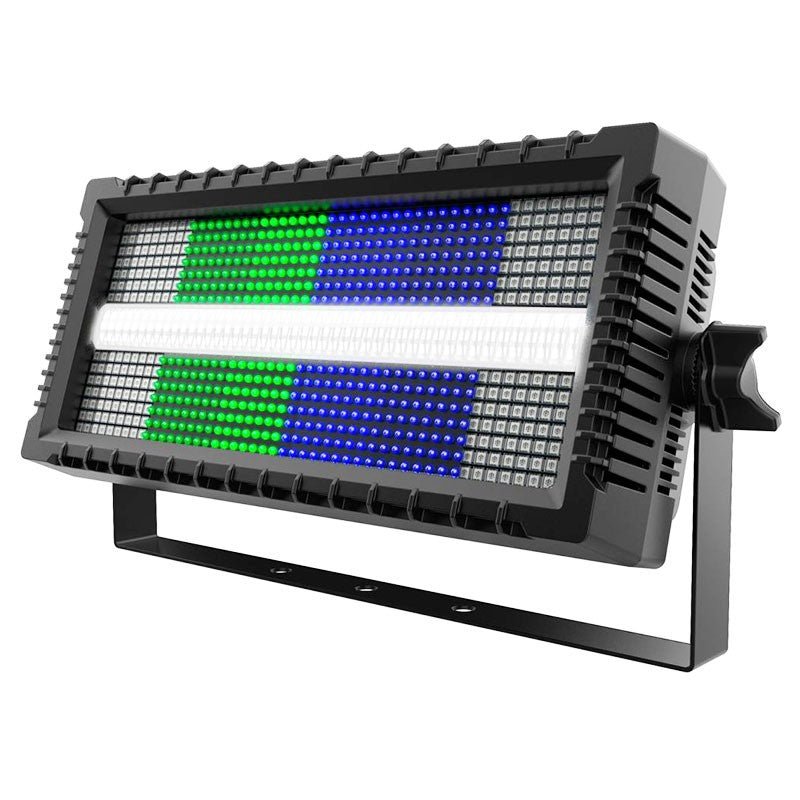

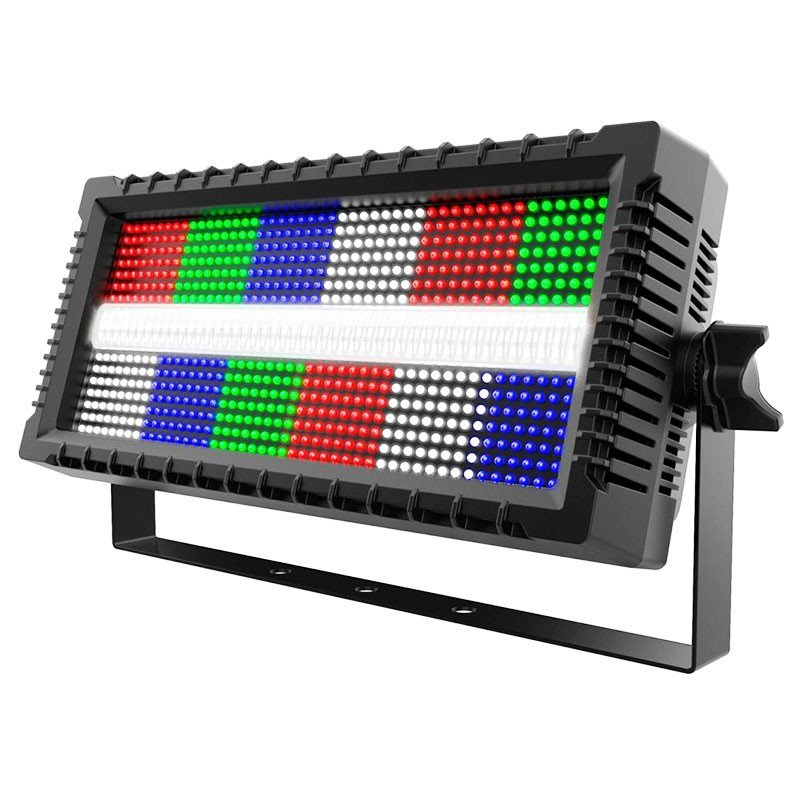

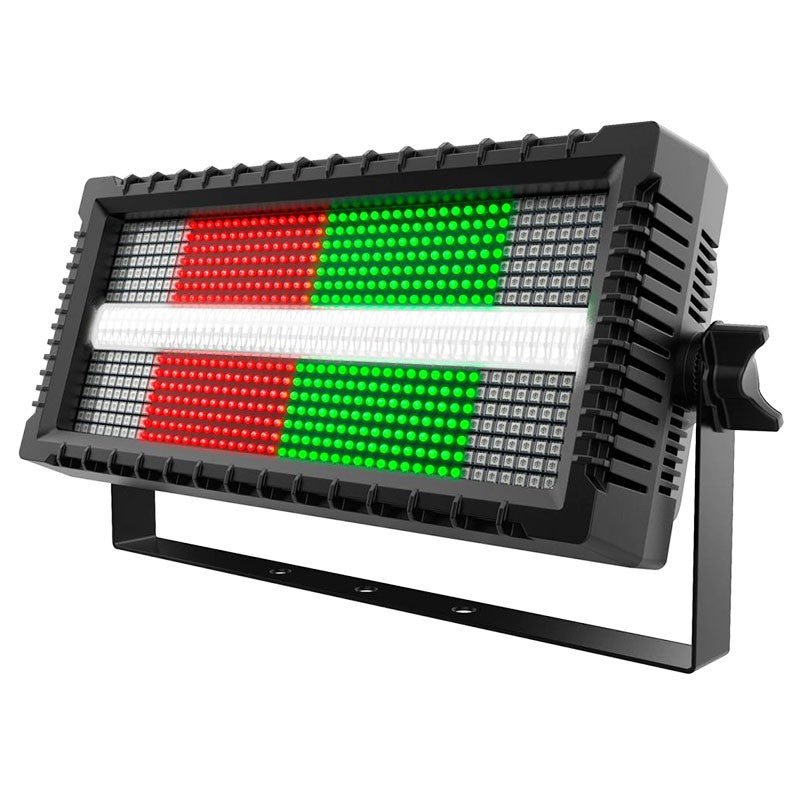

• Pixel mapping: 18 controllable blocks (12 RGB + 6 white) for complex effects and chases.
• DMX modes: 6 / 16 / 42 channels depending on the required level of control.
• Optics: 80° (white with reflection pattern) and 120° (RGB aura).
• Performance: dimmer 0–100%, strobe 0–30 Hz, white color temperature 5,000–6,500 K.

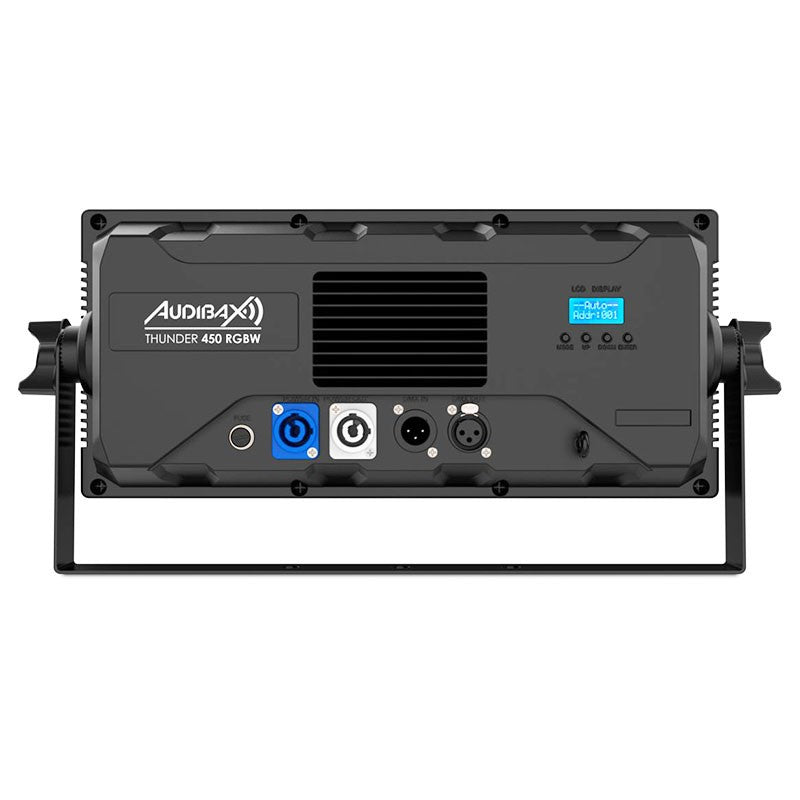

• Connectivity and control: DMX512, master-slave, auto and manual; display with Mode/Enter/Up/Down buttons; XLR 3/5 pin and powerCON input.
• Power consumption: up to 500 W in strobe mode ; 300 W in continuous lighting .

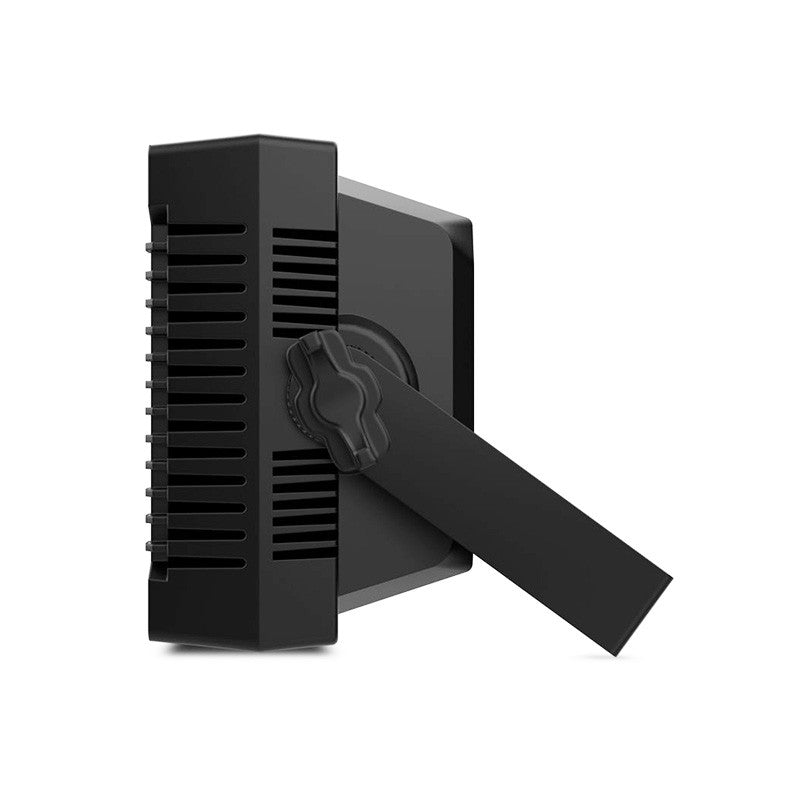

• Construction: fireproof plastic casing, silent ventilation, IP20 for indoor use.

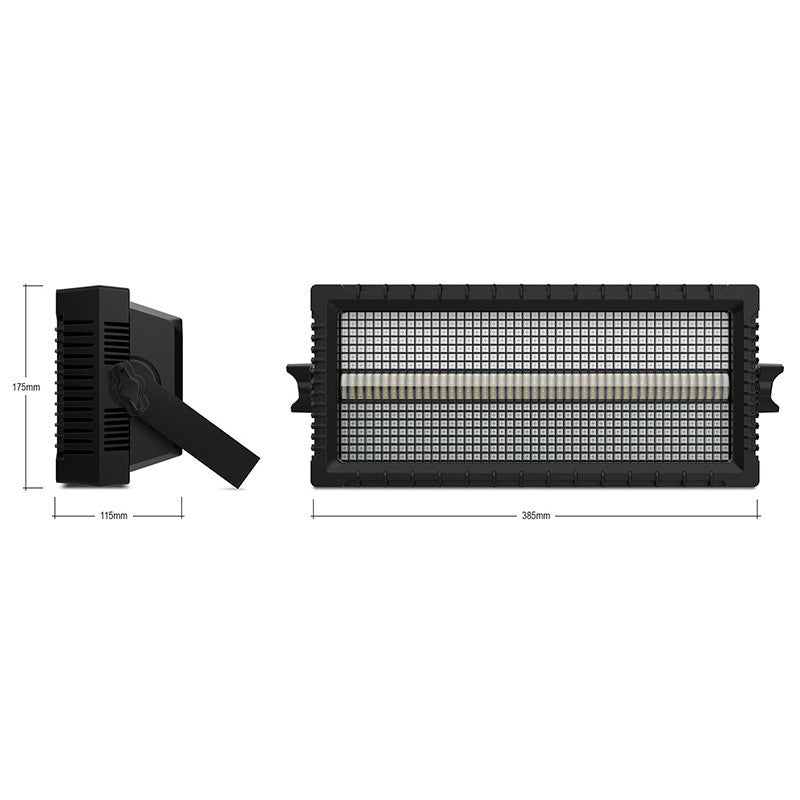

• Compact format: spotlight dimensions 460 × 220 × 125 mm ; weight 4.3 kg .

Product benefits

• Three effects in one device: a powerful strobe, a blinding flash with wide coverage, and a color wash with RGB aura.
• Designed for creative programming: 18 pixelable blocks and 42-channel DMX mode for granular control of groups and effects.
• Wide and homogeneous coverage: 80° in white for defined light bursts and 120° in color for enveloping wash.
• Professional integration: 3/5 pin DMX XLR and powerCON connectors, master-slave operation and automatic modes for quick start-up.
• Reliable operation: quiet ventilation and fireproof chassis for intensive indoor use.

Use cases

• Live and stage: synchronized strobe flashes, front blinder and color fill at concerts and festivals (indoor).
• Clubs and rooms: dynamic zone effects with pixelated chases and strobes in build-ups.
• Corporate events and theater: accents, chromatic transitions and precisely controlled flashes.
• Rental and fixed installation: versatility to cover riders and varied schedules with a single fixture.

Frequently Asked Questions

• Is it suitable for outdoor use? No. Its IP20 rating limits it to dry indoor use.
• How many DMX channels does it have? 6, 16 and 42 channels (advanced mode with group/block control).
• What electrical consumption should I expect? Up to 500 W in strobe mode; 300 W in continuous use.
• What connectors does it use? 3 or 5 pin XLR for DMX and powerCON network input.
• How are the blocks distributed? 12 RGB blocks for color and 6 white blocks for the strobe/blinder (18 in total).

DMX Modes and Control

• 6 channels: master dimmer, strobe and basic RGBW control.
• 16 channels: dimmer, white/RGB strobes, duration, internal programs, presets and auto-run direction.
• 42 channels: group/block control (RGB by groups and 6-group white dimmer) for detailed mapping.

Installation tips

• Use an Omega-type clamp and safety cable . Keep at least 50 cm free for ventilation.
• When programming pixelated chases, combine white strobe (80°) with RGB aura (120°) for depth and contrast.
• Do not operate above 40°C ambient temperature. Indoor use only.

Project description

IP20 rated indoor LED strobe/blinding/wash spotlight with 216 x 1W white LEDs + 768 x 0.4W RGB LEDs (18 blocks). DMX512 control with 6/16/42 channels , master-slave, auto, and manual modes. Beam angles: 80° (white) / 120° (RGB aura). Dimmer: 0–100%. Strobe frequency: 0–30 Hz. Color temperature (white): 5000–6500 K. Power supply: AC 100–240 V, 50/60 Hz, powerCON . Power consumption: 500 W (strobe) / 300 W (continuous). Connectivity: DMX XLR 3/5-pin. Dimensions: 460 x 220 x 125 mm; weight: 4.3 kg.
