Audibax Dallas 72 RGBW - 72W 4-in-1 LED Par Spotlight, 12×6W, 15° and DMX 4/8 channel control

Audibax Dallas 72 RGBW - 72W 4-in-1 LED Par Spotlight, 12×6W, 15° and DMX 4/8 channel control

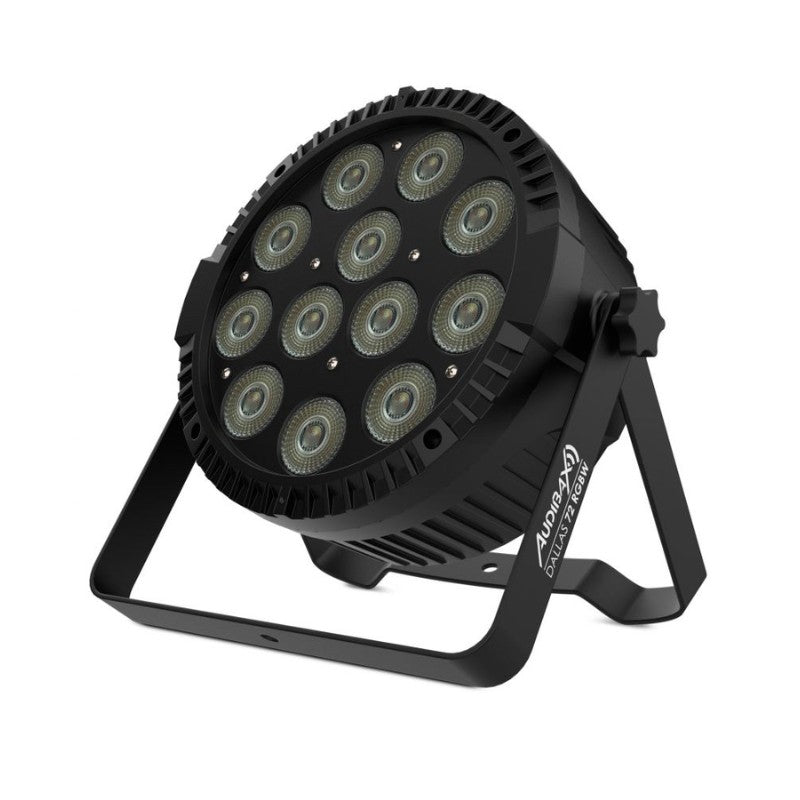

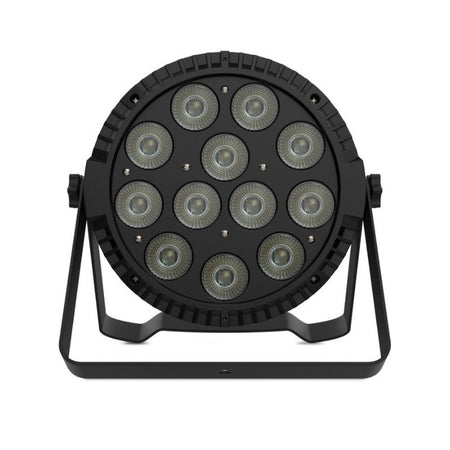

The Audibax Dallas 72 RGBW is a high-performance professional LED PAR light that combines twelve 6W RGBW LEDs to deliver clean, uniform, and highly saturated color mixes. With 90W of power , a 15° beam angle (60° option available depending on the version), and 4- or 8-channel DMX control , it offers a reliable solution for rental and permanent installation in venues, stages, bars, schools, and events. Its die-cast aluminum housing maximizes durability and heat dissipation, while quiet ventilation keeps noise to a minimum. It includes a multi-function bracket for truss, pedestal, or wall mounting and versatile operating modes: DMX512, master-slave, automatic, and sound-activated . Its compact dimensions of 220 × 160 × 210 mm and black finish allow for discreet integration into any lighting rig.

Main features

• Light source: 12 x 6W 4-in-1 RGBW LEDs (72W combined optical; 90W consumption).
• Optics: 15° beam ( 60° option available in certain versions).
• Control: DMX-512 with 4/8 channels , master-slave, automatic and sound activation.

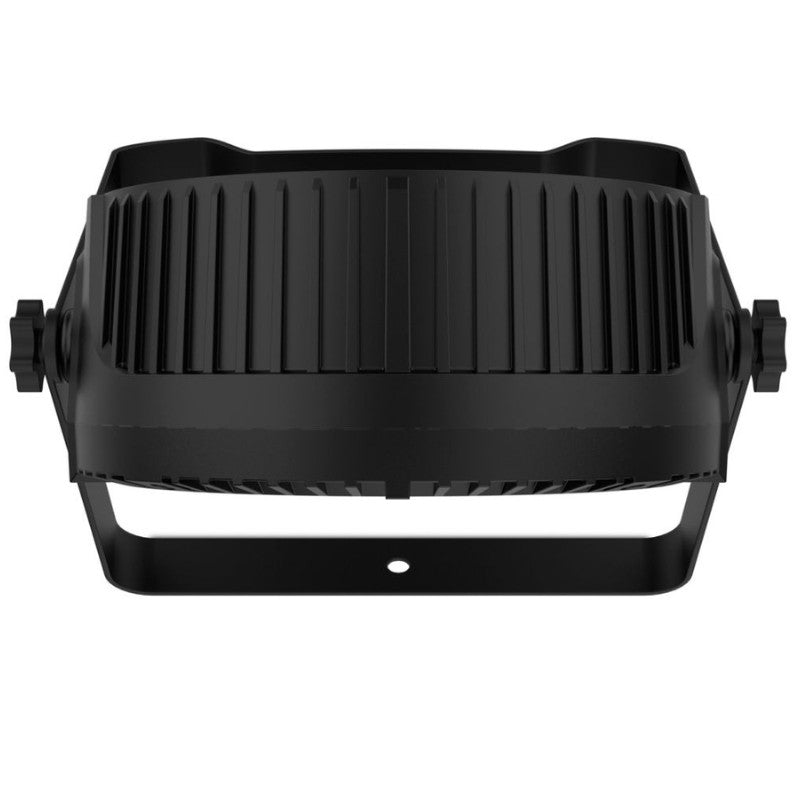

• Construction: die-cast aluminum housing and silent ventilation .

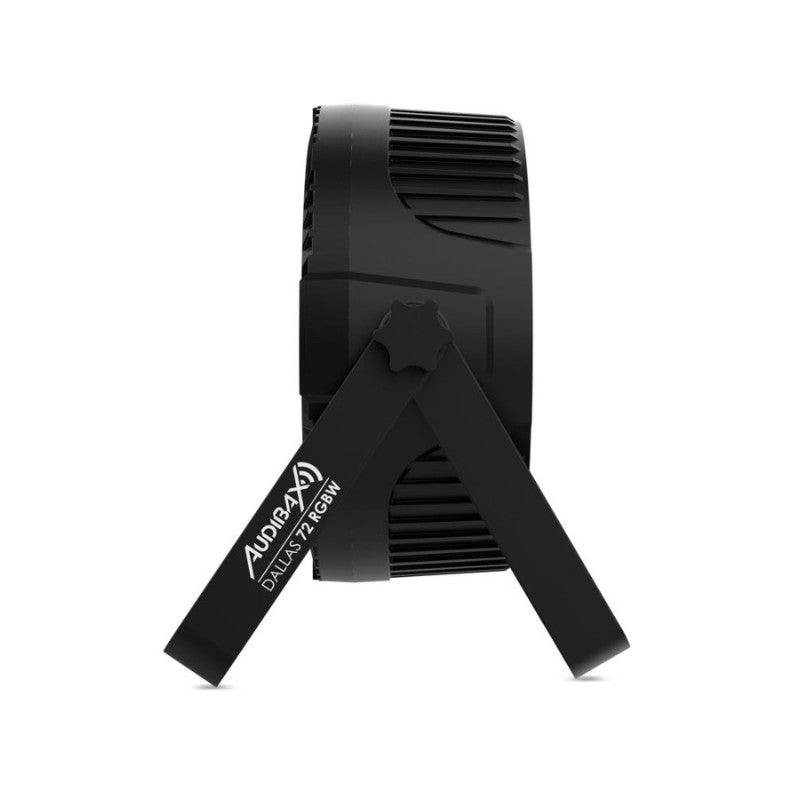

• Installation: Multifunctional stand with multiple mounting options.

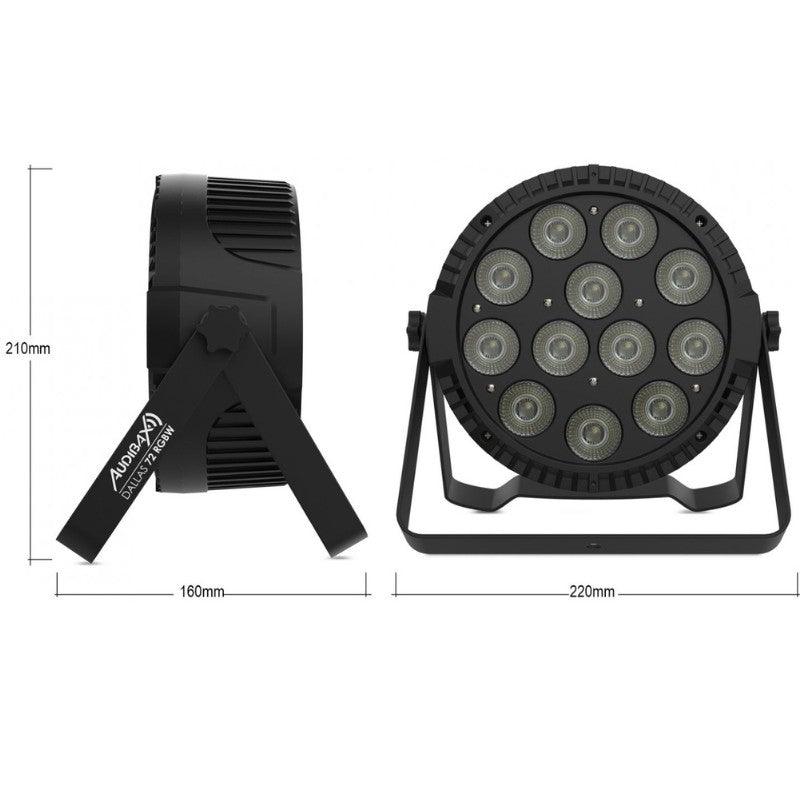

• Compact format: 220 × 160 × 210 mm ; black finish.
• Power supply: AC 90–220 V, 50/60 Hz .

Product benefits

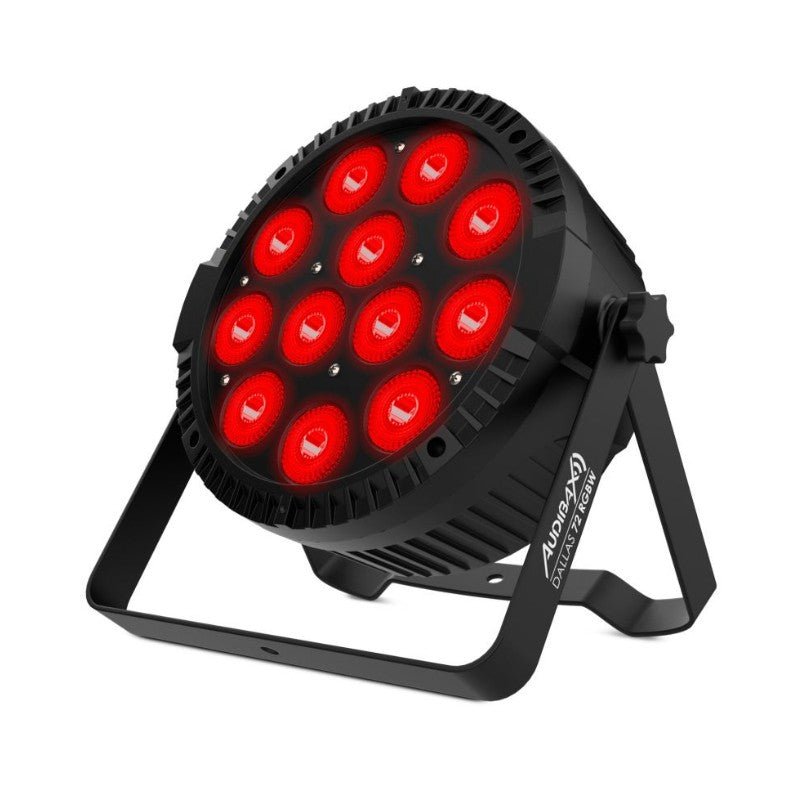

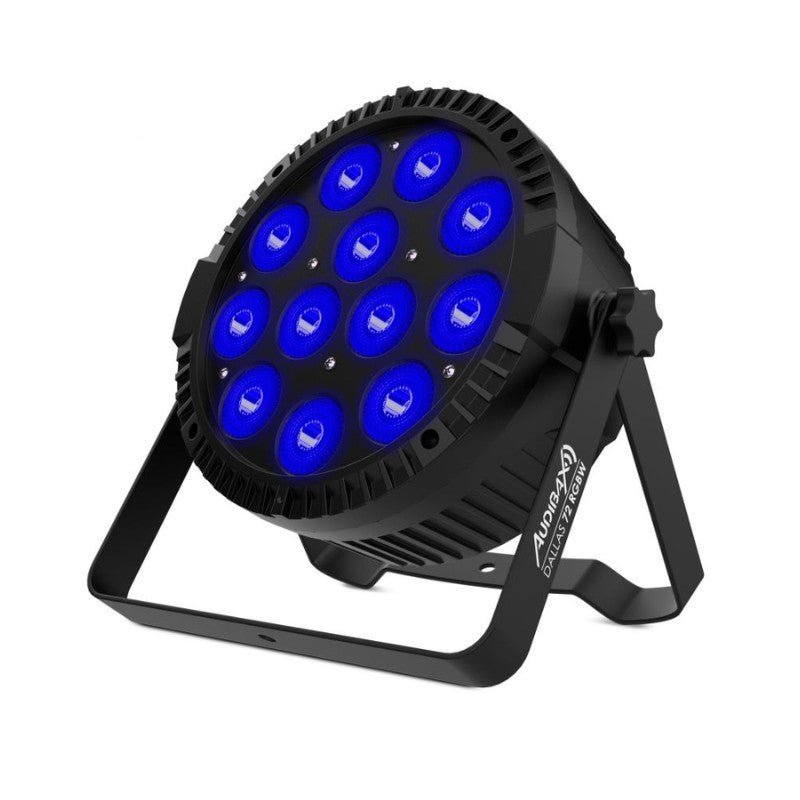

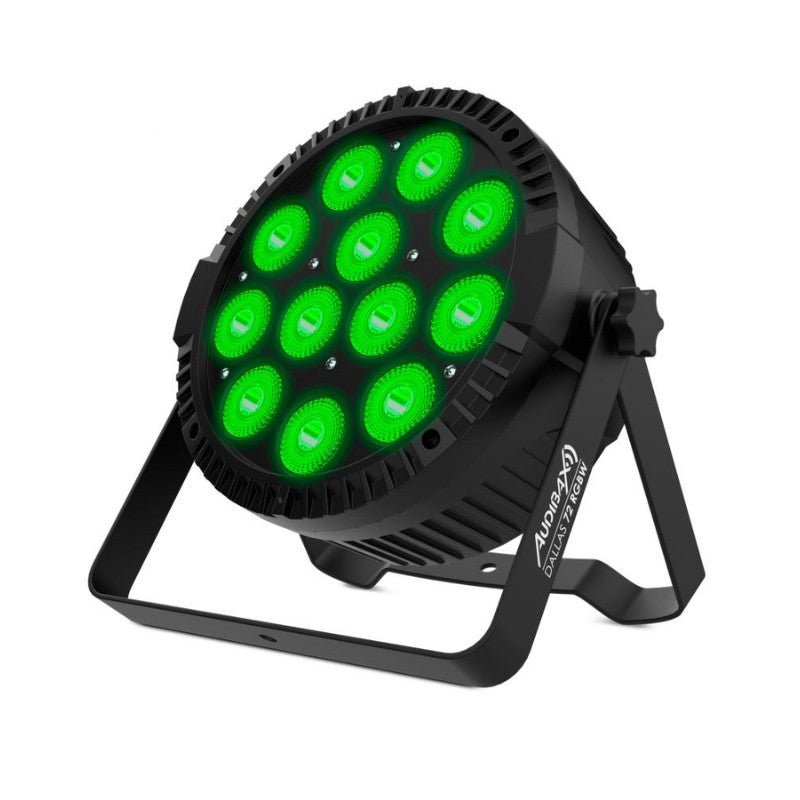

• Versatile colorimetry: 4-in-1 RGBW mixing for pastel shades, adjustable whites, and highly saturated solid colors.
• Flexible control: Choose between 4-channel (basic) or 8-channel (advanced) DMX mapping depending on the show's programming.
• Silent operation: ideal for small rooms, corporate events and environments requiring low noise.
• Ready to work: internal automatic programs and sound mode when there is no console.
• Strength and reliability: robust metal chassis designed for rental and continuous installation.

Use cases

• Stage lighting in bowling alleys , halls and theaters of medium capacity.
• Corporate events, showrooms , trade fairs and product launches.
• Bars, pubs and schools: fixed setup with pre-programmed scenes and colors.
• Mobile producers and DJs: lightweight, reliable and easy-to-program rig.

Frequently Asked Questions

• Can it work without a DMX controller? Yes, it has AUTO and sound modes as well as master-slave .
• What DMX configurations does it allow? 4 channels (basic RGBW control) or 8 channels (total dimming, strobe and functions/speed).
• What is the beam angle? 15° as standard; 60° versions are available depending on availability.
• Does it make a lot of noise? No, it has quiet ventilation suitable for enclosed spaces.
• Does it include hardware? Yes, it comes with a multi-function bracket for quick assembly.

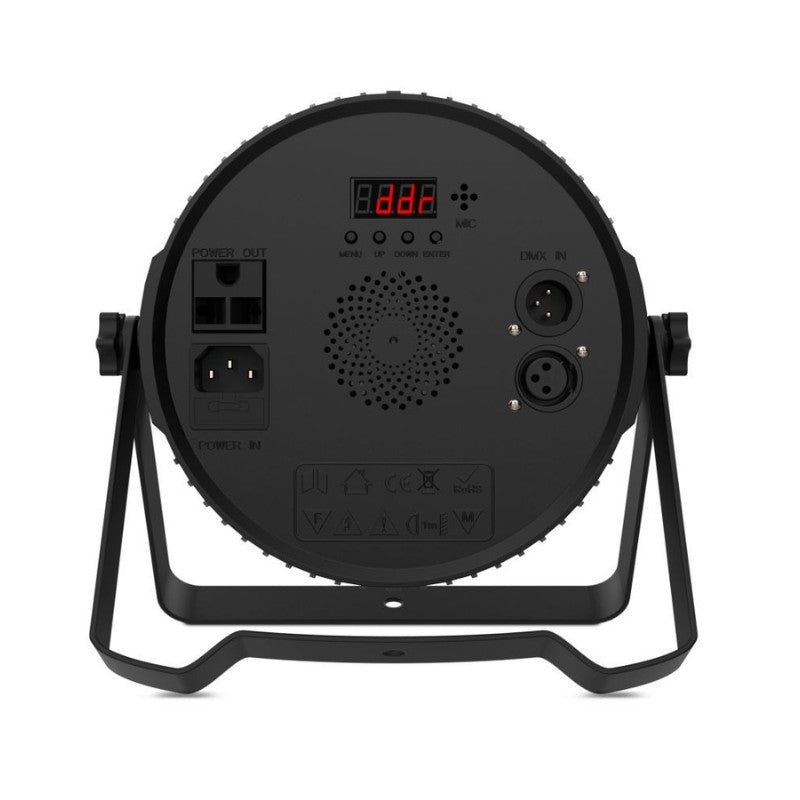

DMX modes and control (summary)

The 4-channel version offers independent dimming of R, G, B, and W. The 8-channel version adds master dimming, strobe, program selection (fixed colors, jump, gradient, half-tone sound), and function speed control. Internal programs allow for standalone operation and audio synchronization when a console is unavailable.

Package contents

• 1 × Audibax Dallas 72 RGBW LED Par Light
• 1 × Power cable
• 1 × User Manual

Project description

Aluminum LED Par spotlight; 90W power; 12 × 6W RGBW 4-in-1 light source; 15° beam angle (60° option depending on version); DMX-512 control with 4/8 channels; master-slave, automatic and sound modes; AC 90–220V, 50/60Hz power supply; black color; dimensions 220 × 160 × 210 mm; includes multifunction bracket.
