Audibax PRO12P G2 - 12" Passive Speaker (2-way) 600W max., 8 Ω, 95 dB and 90°×60° dispersion

Audibax PRO12P G2 - 12" Passive Speaker (2-way) 600W max., 8 Ω, 95 dB and 90°×60° dispersion

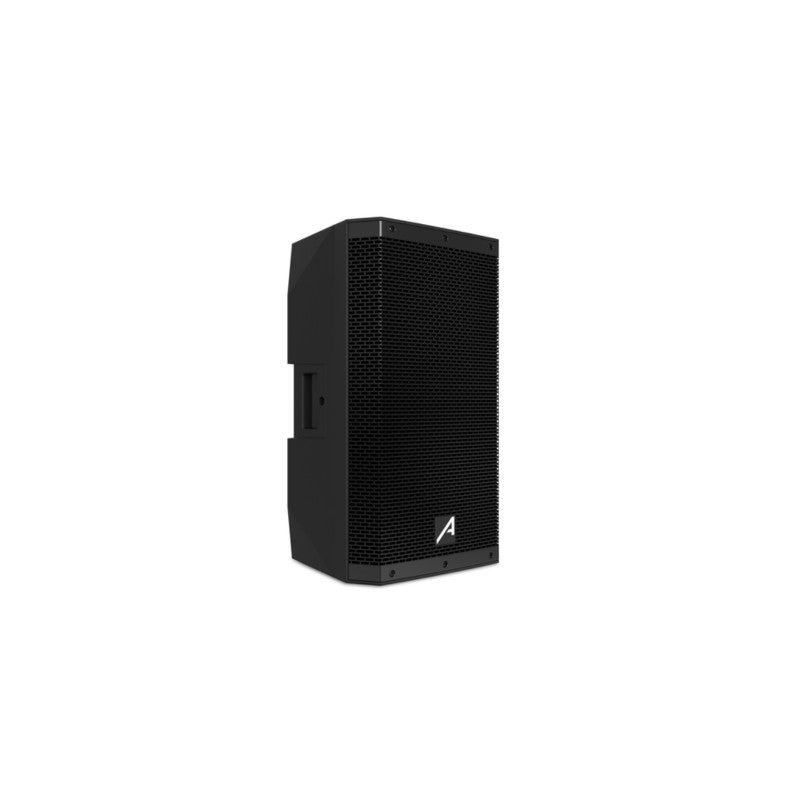

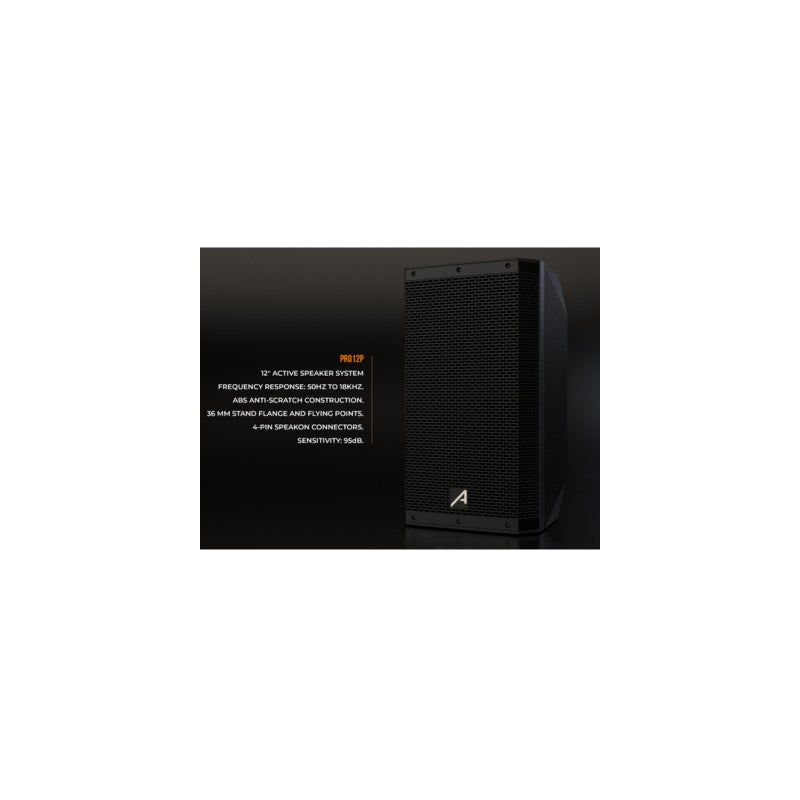

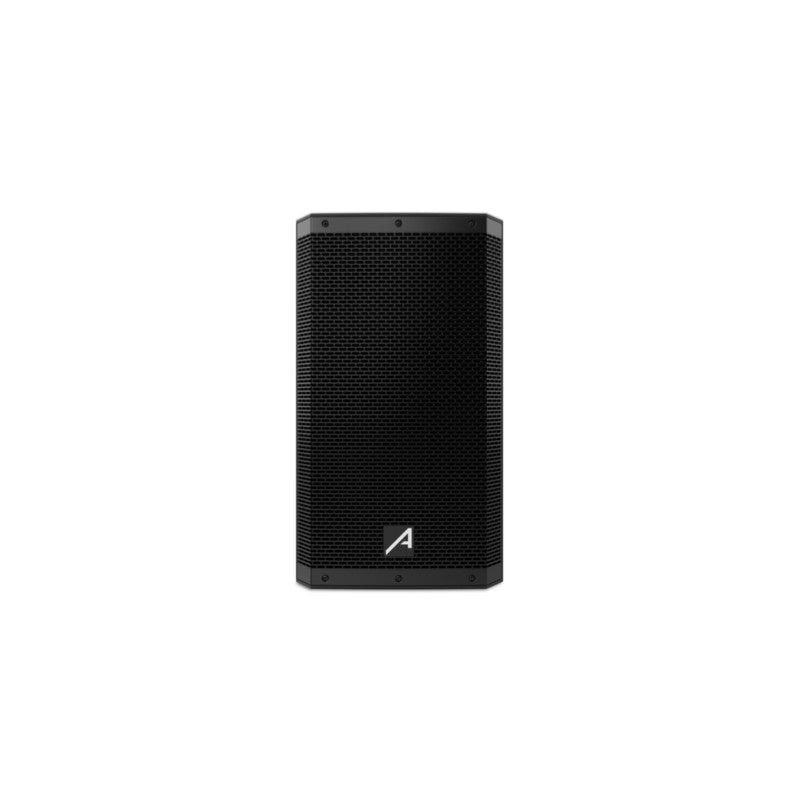

The Audibax PRO12P G2 is a two-way passive loudspeaker with a 12" woofer and a 3.5" titanium tweeter mounted in a horn, designed to deliver clear, powerful sound in rental and fixed installation applications. With a frequency response of 50 Hz–18 kHz (±3 dB) , sensitivity of 95 dB (1W/1m) , and a maximum SPL of 123 dB , it performs admirably for live music, events, and vocal reinforcement. Its 8 Ω load and 300 W RMS / 600 W peak power handling make it compatible with a wide range of power amplifiers.

The ABS enclosure incorporates a 36 mm mounting base and rigging points for suspended installation. Its 90° x 60° coverage ensures even distribution in small to medium-sized rooms. For connectivity, it features integrated 4-pole Speakon connectors for amplifier input and linking to other speakers, simplifying system wiring. Measuring 35.5 x 34.5 x 61.8 cm and boasting a robust construction, it is a reliable solution for heavy-duty use.

Main features

• 2-way configuration: 12" woofer (2.5" voice coil) + 3.5" titanium compression driver in horn.
• Power and load: 300 W RMS / 600 W peak at 8 Ω; sensitivity 95 dB (1W/1m); max. SPL 123 dB .
• Response and coverage: 50 Hz–18 kHz (±3 dB) with 90°×60° dispersion for uniform coverage.

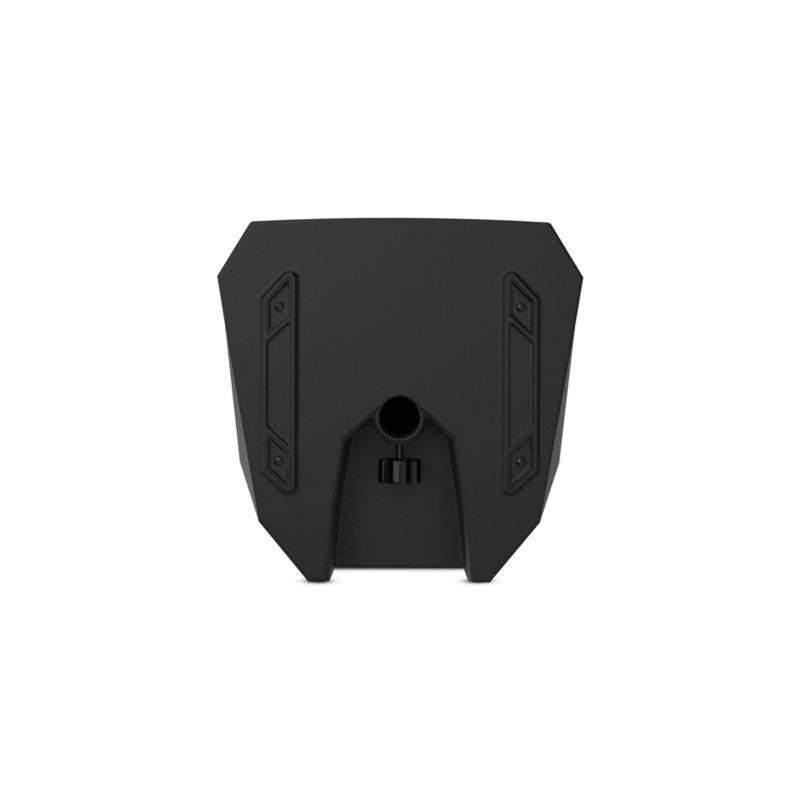

• Enclosure and assembly: ABS box with 36 mm socket for tripod and flying points .

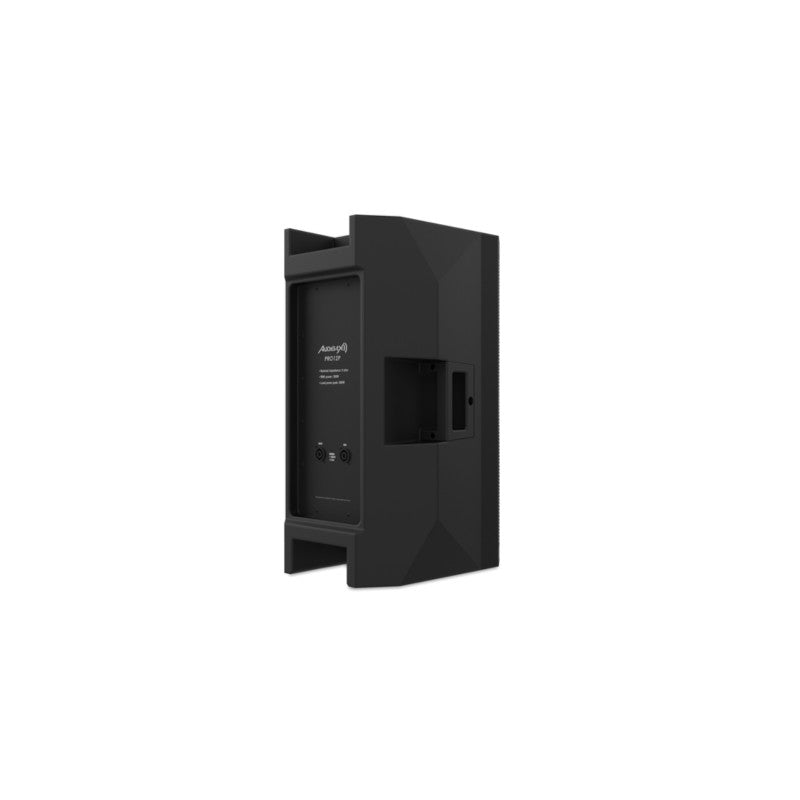

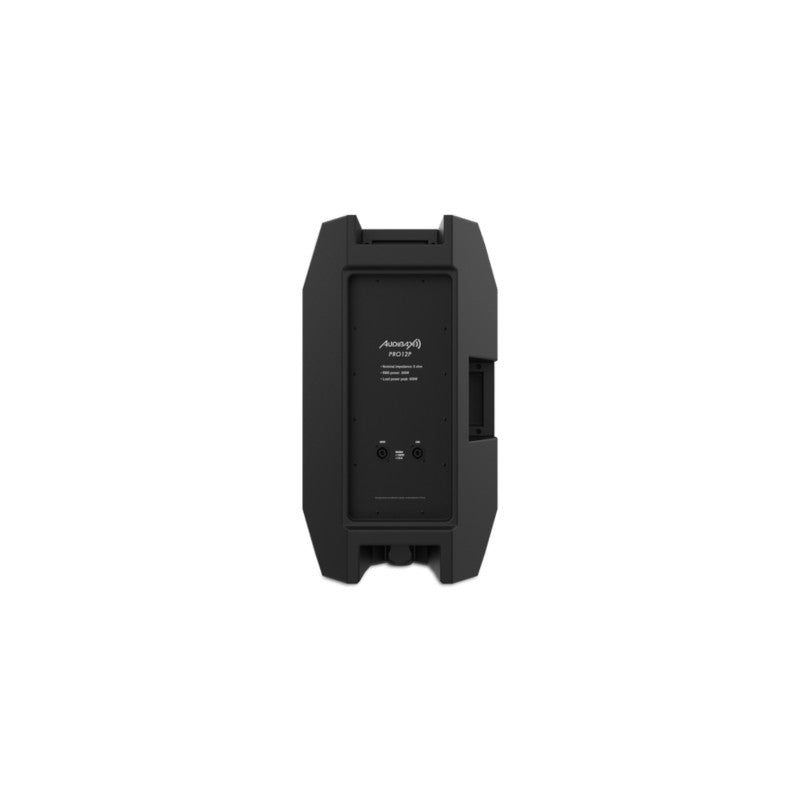

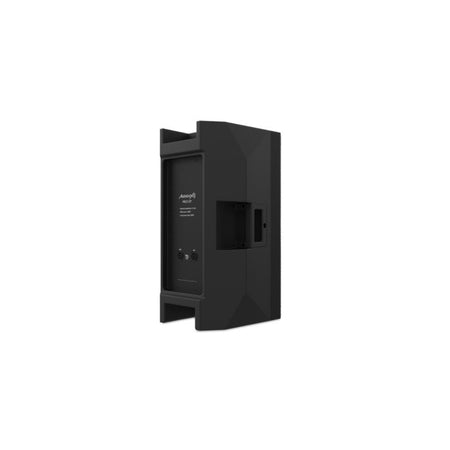

• Professional connections: 4-pole Speakon (input from stage and link).

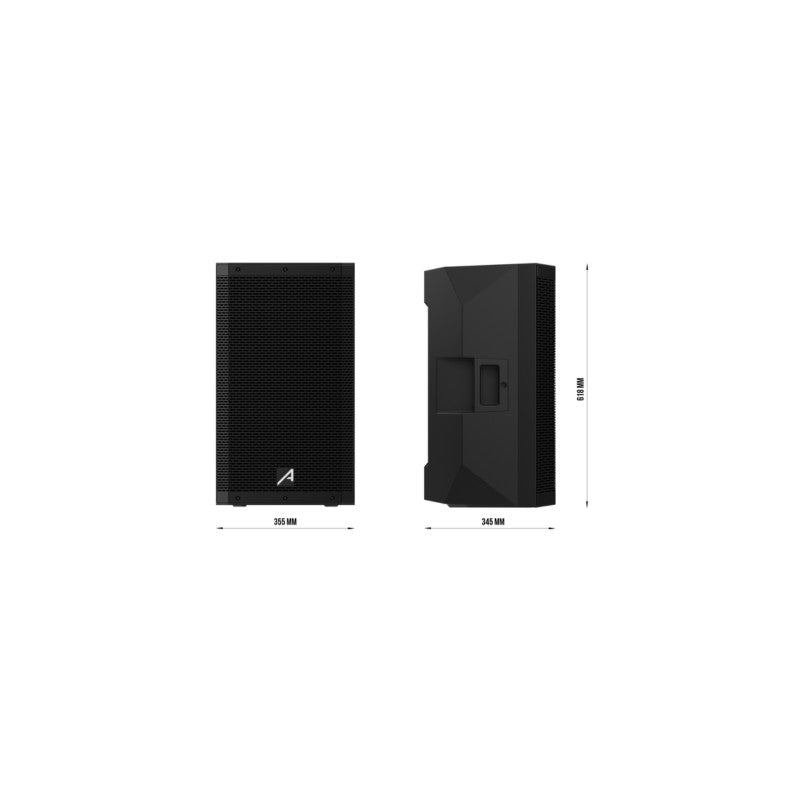

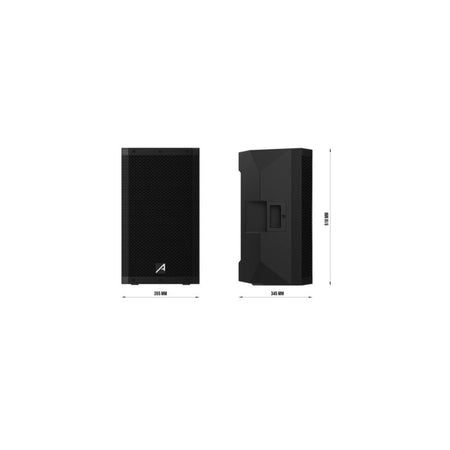

• Versatile format: 35.5 × 34.5 × 61.8 cm; designed for mobile events and permanent installation.

Product benefits

• Balanced and powerful sound: solid bass from the 12" and defined treble from the titanium motor.
• Full compatibility with standard amplifiers: 8 Ω load and typical working power (300–600 W per channel environments).
• Easy deployment: 36mm socket for tripod mounting and anchor points for hanging.
• Controlled coverage: 90°×60° pattern that helps reduce reflections and dead zones.
• Durable construction: ABS enclosure for heavy-duty rental and event use.

Use cases

• Corporate and social events: voice reinforcement and background music with homogeneous coverage.
• Schools, auditoriums and cultural centers: fixed installation in multipurpose rooms.
• Bars, pubs and restaurants: stereo or distributed systems with 8 Ω stages.
• Rental companies: versatile box parks for main PA in small/medium rooms or as fills .

Frequently Asked Questions

Is it an active speaker?
No, it's passive. It requires an external 8 Ω power stage.

What amplifier power do I need?
As a general guideline, use a stage that delivers between 300 and 600 W per channel at 8 Ω to take advantage of the speaker without saturating the signal.

Can it be hung?
Yes. It has flying points and a 36mm socket for tripod mounting.

What connectors does it use?
Professional 4-pole Speakon connector for input from amplifier and link to other speakers.

Project description

2-way passive loudspeaker; 12" (VC 2.5") + 3.5" titanium HF driver in horn; frequency response 50 Hz–18 kHz (±3 dB); sensitivity 95 dB (1W/1m); max. SPL 123 dB; power 300 W RMS / 600 W peak; impedance 8 Ω; dispersion 90°×60°; Speakon 4P connector (input/link); ABS enclosure; 36 mm socket and flying points; dimensions 35.5 × 34.5 × 61.8 cm.
