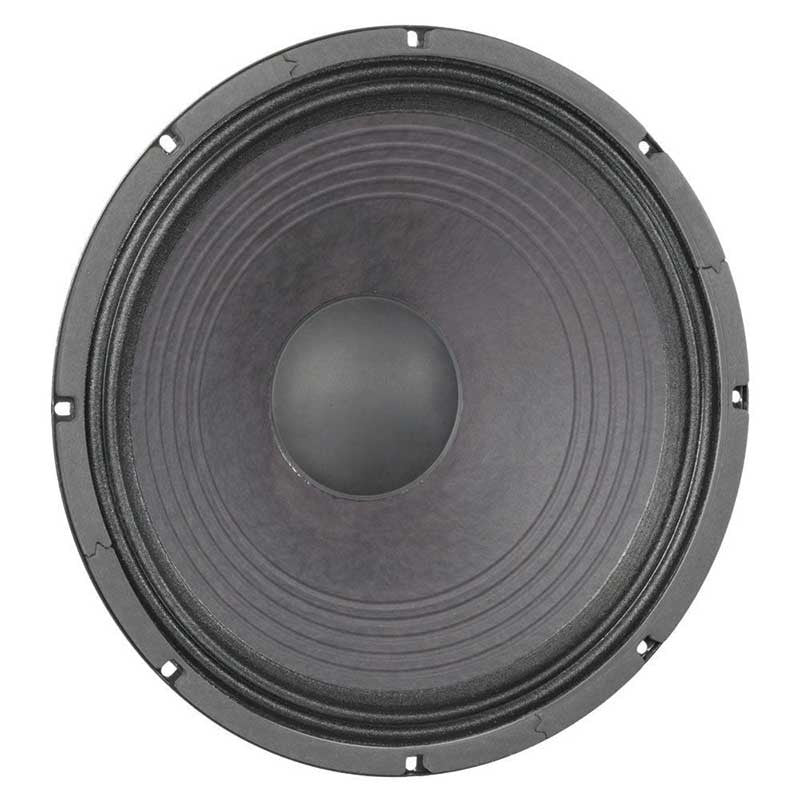

Audibax GR12-DE - Professional 12" Woofer (4 Ω, 180 W RMS, vented magnet)

Audibax GR12-DE - Professional 12" Woofer (4 Ω, 180 W RMS, vented magnet)

The Audibax GR12-DE is a 12-inch woofer designed for replacement and construction of speaker enclosures in PA systems, installations, and rental applications. It features a vented magnet for improved heat dissipation, a rigid suspension for enhanced motion control, and a 1.5" voice coil , delivering a sensitivity of 93 dB (1 W/1 m) and a frequency response of 30 Hz to 3.5 kHz . Its 4 Ω impedance and 180 W RMS continuous power handling (up to 360 W max. ) make it a solid choice for two-way speakers and bass-reflex enclosures where punch and reliability are paramount. Spade terminals facilitate quick and secure wiring during service or workshop installation.

Main features

• Nominal diameter: 12" (30 cm).

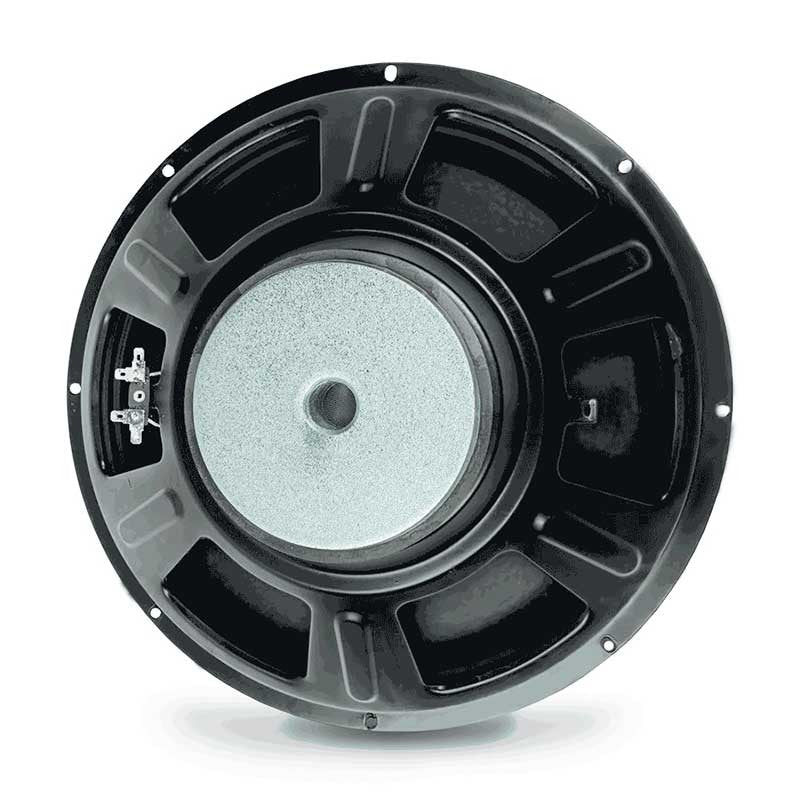

• Ventilated magnet: improves cooling and stability during prolonged use.
• Rigid suspension: displacement control for more defined bass.
• Voice coil: 1.5" for thermal management according to 180 W RMS.
• Impedance: 4 Ω, compatible with standard passive amplifiers and filters.
• Sensitivity: 93 dB @ 1 W / 1 m.
• Frequency response: 30 Hz – 3.5 kHz (typical range for use as a woofer).
• Connection: spade-type terminals for quick assembly.
• Lightweight construction: weighs approximately 2 kg for easy transport and assembly.
• Overall dimensions: 300 × 300 × 125 mm.
• Mounting dimensions: 320 × 320 × 140 mm.
• Finish: black color.

Product benefits

• Balanced performance: 180 W RMS with good sensitivity to achieve adequate sound pressure levels without requiring excessive amplification.
• Reliability in continuous use: the ventilated magnet helps keep the temperature under control, reducing heat compression.
• Easy maintenance and replacement: sword terminals and chassis accessible for quick replacements on tours or installations.
• Versatility: suitable as a woofer in 2-way systems for sound reinforcement in halls, pubs, rehearsal rooms, schools and mobile events.

Use cases

• PA speaker repair: replacing the bass driver in 12" cabinets
• DIY construction or retrofit: upgrade of 12" bass-reflex enclosures with 4 Ω impedance.
• Fixed installation and rental: speakers for multipurpose rooms, cultural centers, gyms or rental backline.

Frequently Asked Questions

• What is the actual power? The continuous power is 180 W RMS and the maximum recommended power is 360 W.
• Is it a passive speaker? Yes, it requires external amplification and, in 2-way systems, a suitable crossover .
• Does it work at 4 Ω? Correct, its nominal impedance is 4 Ω .
• What connectors does it use? Spade-type terminals for crimping or snapping into Faston female connectors.

Compatibility and assembly

Before installation, verify the mounting dimensions and the enclosure volume/port to ensure optimal performance. Use appropriately sized wiring and adjust the passive filter or DSP processing to the system's cutoff points to protect the transducer.

Project description

12" passive woofer with vented magnet, 4 Ω, 180 W RMS power (360 W max.), 93 dB sensitivity (1 W/1 m), 30 Hz–3.5 kHz response, 1.5" voice coil, spade terminals, dimensions 300 × 300 × 125 mm and mounting dimensions 320 × 320 × 140 mm; weight 2 kg; black color.
