Audibax 1002 - 8-channel analog mixing console with switchable phantom power, 3-band EQ and Master/Control Room outputs

Audibax 1002 - 8-channel analog mixing console with switchable phantom power, 3-band EQ and Master/Control Room outputs

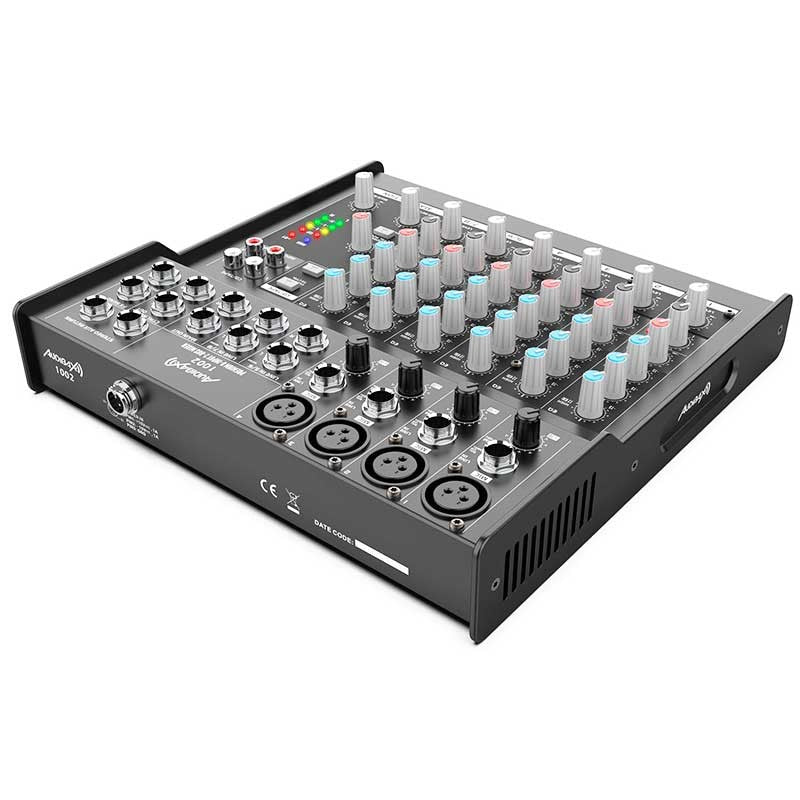

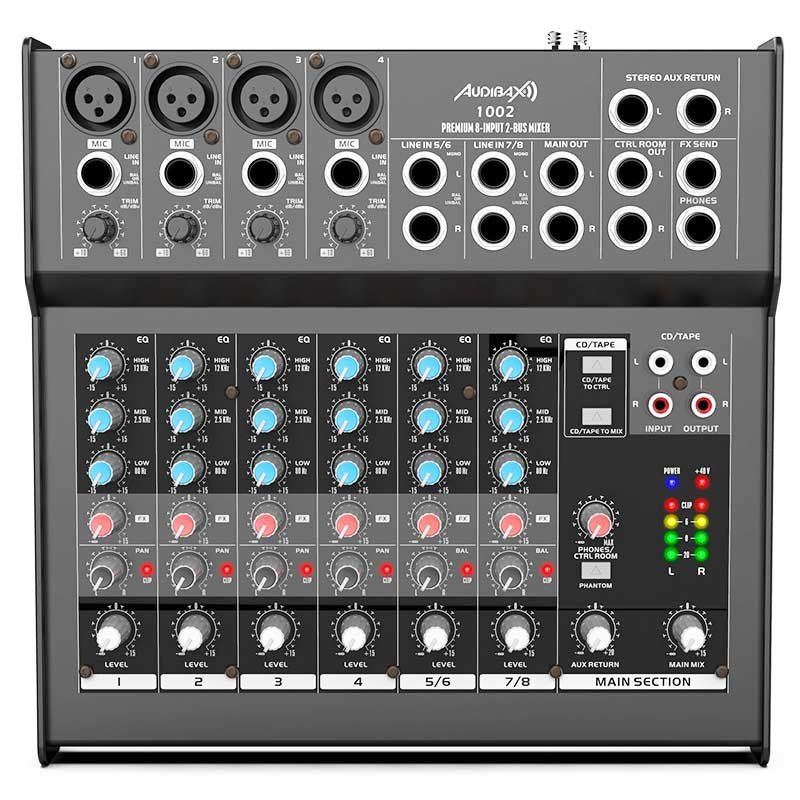

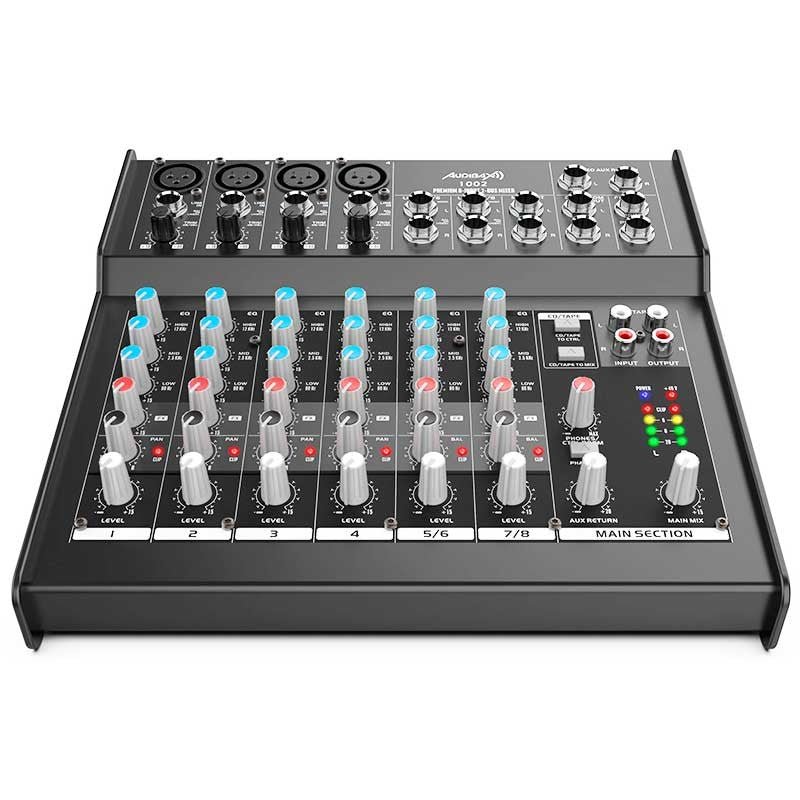

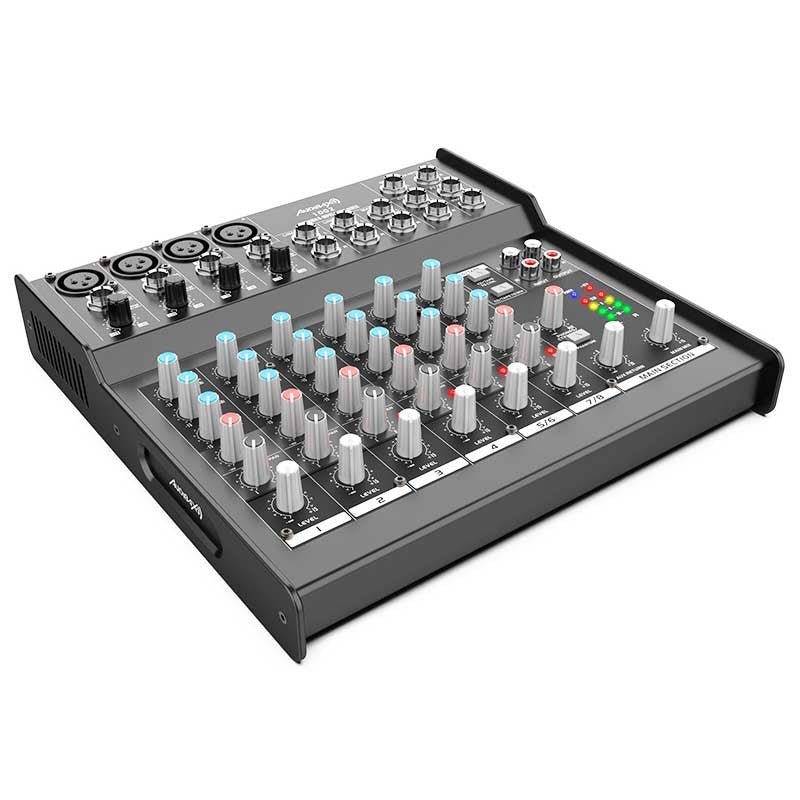

The Audibax 1002 is an 8-channel mixer designed for compact sound reinforcement and home studios . It features four mono channels with microphone preamps and switchable phantom power , and two stereo channels (each with two jack inputs ) for line-level sources. It includes a 3-band EQ and balance/pan control per channel, a master output via two jacks , a control room output for monitors, two-track RCA input/output , and a headphone output with independent level control. Its lightweight design with an external power supply facilitates transport and setup for rental and installation, ensuring a simple and reliable workflow.

Main features

• 8 total channels : 4 mono (mic/line) + 2 stereo for players, keyboards and returns.
• 4 microphone inputs with switchable phantom power for condenser and dynamic microphones.

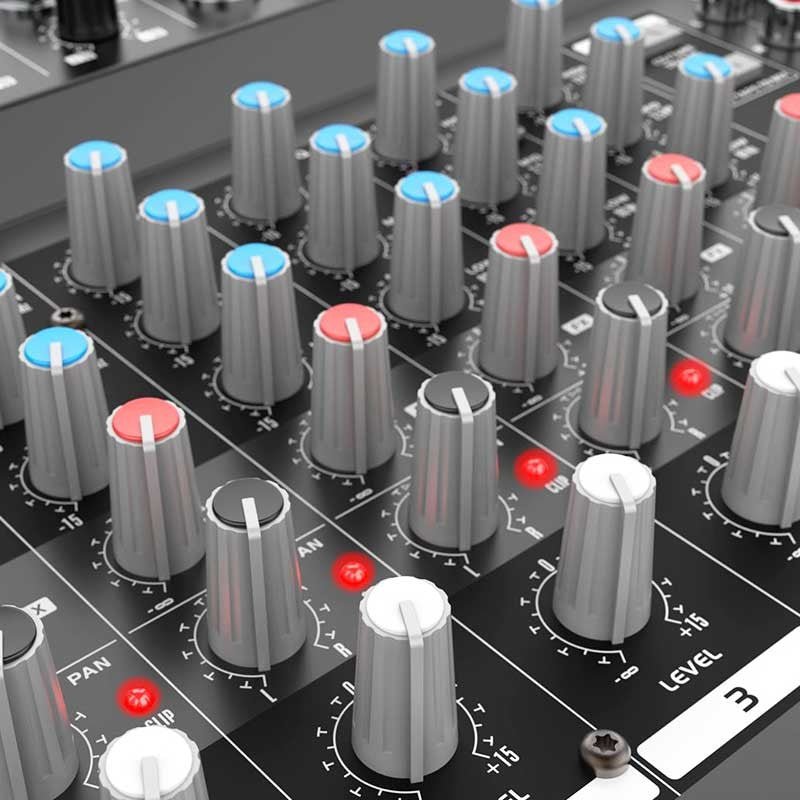

• 3-band EQ per channel and balance/pan to sculpt mix and stereo image.
• Full connectivity : Master via 2 jacks, dedicated Control Room , 2-Track RCA In/Out and headphone output with independent level control.
• Fast operation : clear arrangement of controls and external power source for greater reliability and easy maintenance.

Benefits for the user

• Real versatility in live and studio settings: connect microphones, instruments, and stereo sources without hassle.
• Immediate acoustic control with 3-band equalization per channel to correct feedback, enhancements, or coloration.
• Flexible monitoring : send mix to PA via Master and listen via Control Room or headphones with independent volume.
• Extended compatibility thanks to switchable phantom power for condenser microphones.

Use cases

• Events and small performances : vocals, acoustic guitars, keyboards and players.
• Podcast and multi-person streaming : up to 4 microphones with individual tone control.
• Fixed installation in classrooms, multipurpose rooms, cultural centers and rehearsal spaces.

Frequently Asked Questions

• Does it have effects or a USB interface? This 1002 model does not have built-in effects or USB. If you need them, check out the 1002 FX or 1002 FX USB series.
• Is the phantom power 48V? The console has switchable phantom power ; the product references indicate it as 48V .
• Can I record from the 2-track output? Yes, the RCA 2-Track connection allows you to send the mix to recorders/auxiliary inputs, as well as receive an external source.
• Does it work for powered speakers? Yes, connect the Master outputs to the line inputs of your powered speakers.

Usage tips

• Activate phantom power only when using condenser microphones and with the faders at minimum to avoid spikes.
• Start with a flat EQ and correct subtly; use pan/balance to position each source in the stereo image.
• Use Control Room for reference listening without altering the signal sent to the public.

Project description

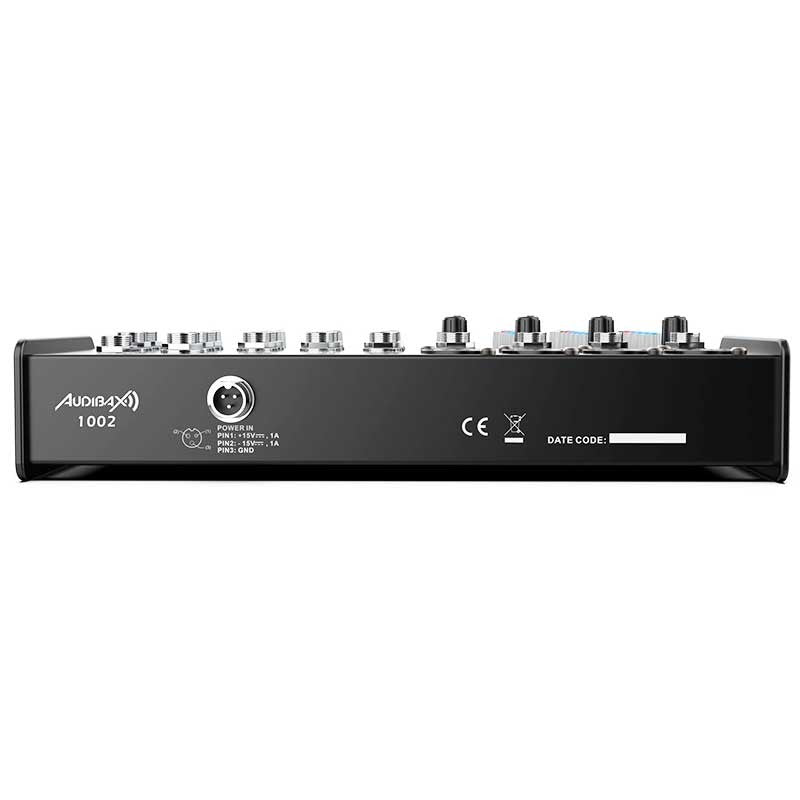

8-channel analog mixing console with 4 microphone inputs with switchable phantom power , 2 stereo channels (each with 2 jacks), 3-band equalizer per channel and balance/pan ; Master outputs via 2 jacks, Control Room output , 2-Track RCA input/output , headphone output with independent level; external power supply .
