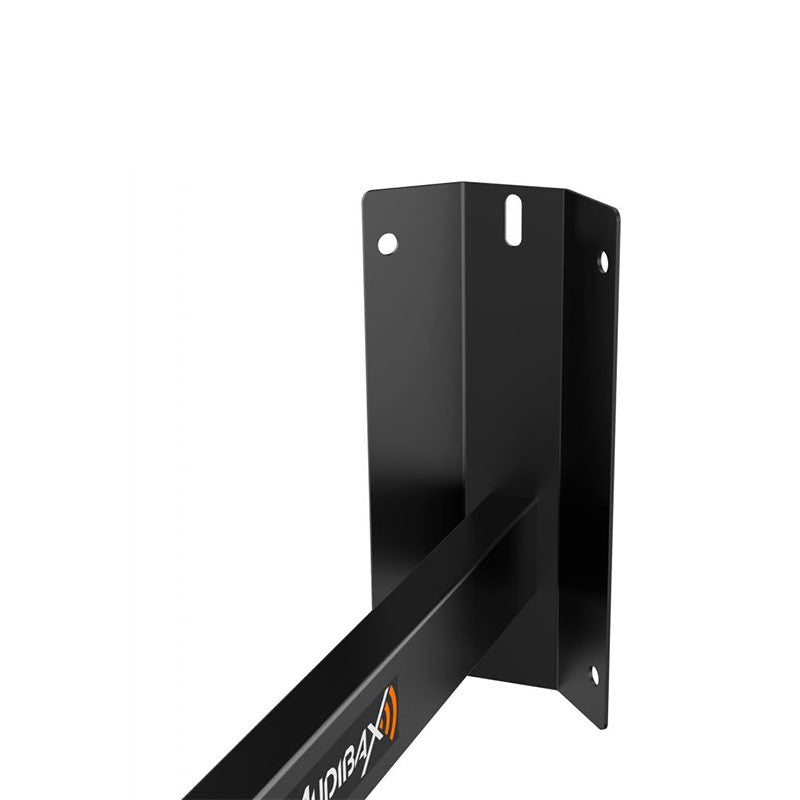

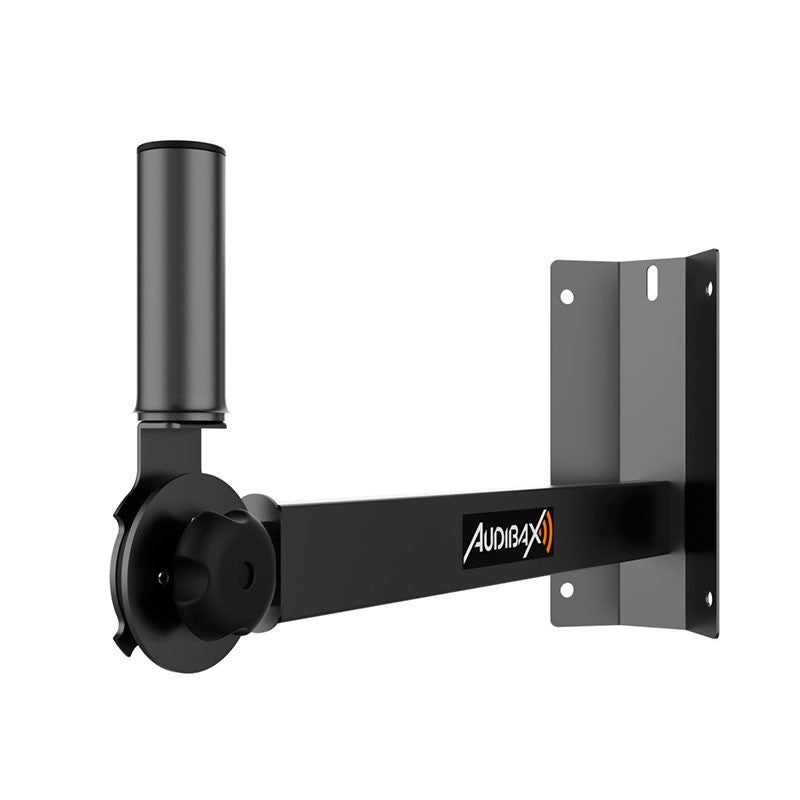

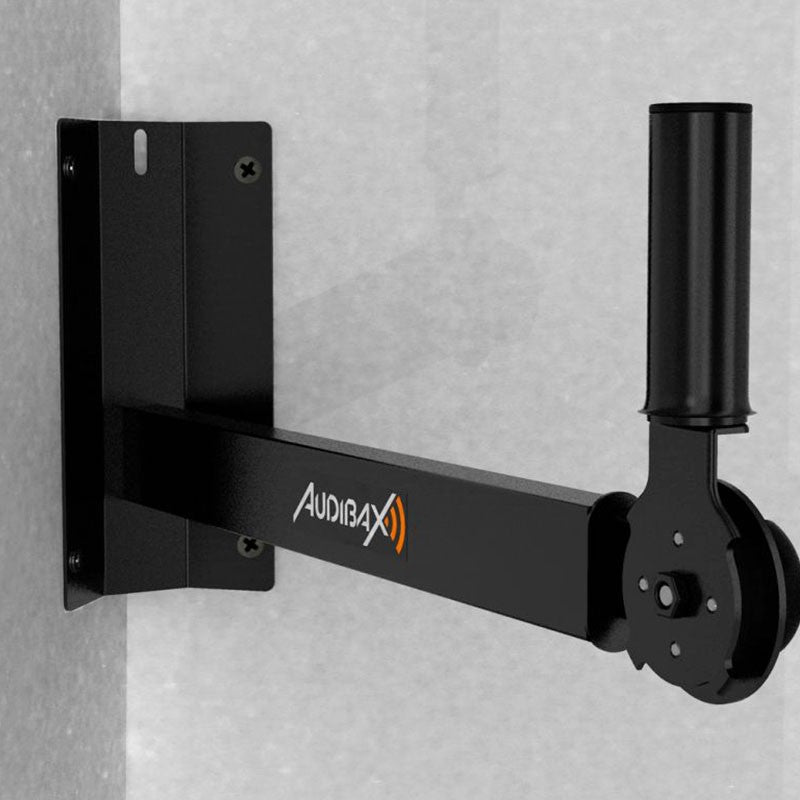

Audibax Neo 50 Corner - Tilting wall mount for speaker with 35mm socket, specifically designed for corner mounting

Audibax Neo 50 Corner - Tilting wall mount for speaker with 35mm socket, specifically designed for corner mounting

The Audibax Neo 50 Corner is a speaker wall mount specifically designed for corner installations, optimizing space without compromising on a solid and secure hold. Made of steel with a black finish, it features a mast with a standard 35 mm socket, ensuring compatibility with most PA speakers. Its design allows the speaker to be positioned up to 52.5 cm from the wall for optimal sound projection and offers an adjustable tilt range of 90° to 110°, facilitating orientation towards the audience or listening area. With a load capacity of up to 35 kg and a 25 x 12 cm mounting base with 5 cm side tabs, it is a robust solution for permanent installations in venues, rehearsal rooms, entertainment spaces, and rental applications where speaker placement at the intersection of two walls is essential.

Main features

• Corner design: plate and geometry designed to fix the support at the intersection of two walls, making the most of the available space.
• Universal compatibility (35mm cup): 35mm insert cylinder (nominal diameter) suitable for most standard cup-shaped speaker cabinets.

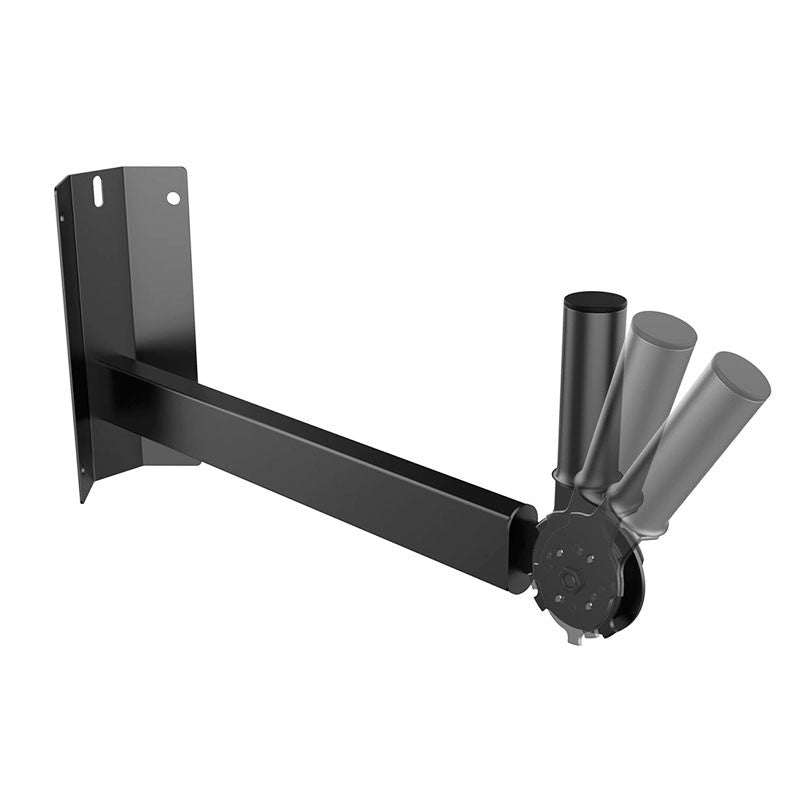

• Adjustable tilt 90°–110°: orients the speaker to correct reflections and improve coverage.
• Steel structure: high rigidity and stability for intensive use.
• 52.5 cm wall separation: promotes correct dispersion without "sticking" the box to the corner.
• Load capacity 35 kg: suitable for a wide range of active or passive speakers within the weight limit.
• Wide anchoring base: 25 cm (height) × 12 cm (width) with 5 cm side tabs for stable fixing.
• Black finish: discreet and professional to blend into any environment.

Product benefits

• Space saving and visual cleanliness: frees up floor space and avoids tripods in passage areas, ideal for premises with limited capacity.
• Better coverage: the adjustable tilt helps direct energy where it's needed and minimize dead spots.
• Versatile installation: designed for corners, it solves tricky wall locations where a flat bracket won't fit.
• Standardized compatibility: The 35mm socket allows it to be used with numerous speaker brands without adapters.
• Durability: The steel and black finish protect against continuous use in leisure and event environments.

Use cases

• Bars, restaurants and pubs where it is advisable to keep passageways clear.
• Rehearsal rooms and academies that need a fixed and tidy installation.
• Multicultural spaces, small auditoriums and gyms with PA reinforcement.
• Rental companies that install systems in semi-permanent facilities.

Frequently Asked Questions

• Is it compatible with my speaker? Yes, provided the speaker has a 35mm cup/glass and its weight does not exceed 35 kg.
• Can it be tilted? Yes, the adjustable tilt range is from 90° to 110°.
• What distance does it leave from the wall? Up to 52.5 cm from the fixing point, allowing for good projection.
• Does it include wall screws? The manufacturer does not specify the screws; it uses anchors and fixings appropriate for the wall material and the total weight of the system.
• What type of wall can I mount it on? The wall must be structurally sound (e.g., solid masonry or equivalent support). For plasterboard/drywall partitions, consult a professional and use anchors certified for at least the equivalent loads.

Installation and safety

Check the strength of the wall, use approved anchors and appropriate tools, and always respect the 35 kg load limit. Secure the speaker to the 35 mm cylinder and verify the tilt tension before use. In public installations, follow applicable local regulations and consider having it inspected by a qualified technician.

Package contents

• 1 x wall mount for speaker (corner mount). Fixing screws not specified.

Project description

Corner speaker wall mount; material: steel; finish: black; insert cup/cylinder 35 mm (nominal Ø 3.5 cm) and height 10.5 cm; adjustable tilt 90°–110°; distance to wall (length of bracket) 52.5 cm; wall base 25 × 12 cm with 5 cm tabs; maximum load 35 kg; application: fixed/rental installation; compatibility: speakers with 35 mm cup.
