Audibax GA05-T - 5" 2-way recessed ceiling speaker for 100V line (white)

Audibax GA05-T - 5" 2-way recessed ceiling speaker for 100V line (white)

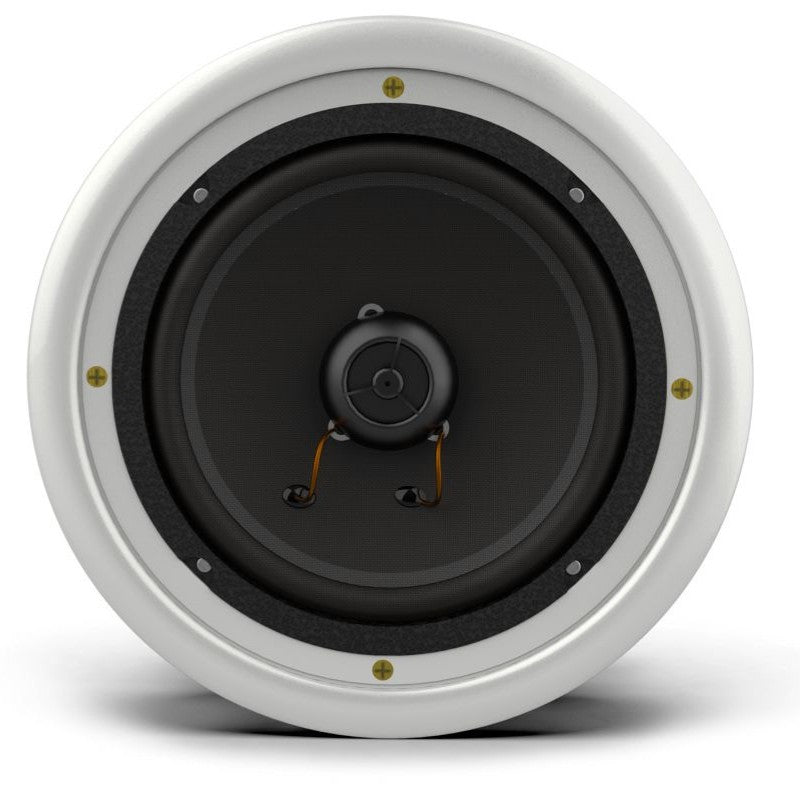

The Audibax GA05-T is a 2-way ceiling speaker with a 100V line transformer, designed for background music and announcements in commercial and corporate settings. It combines a 5" woofer with a 13mm tweeter to deliver clear sound in the 80Hz–20kHz range, with an SPL of 89dB . It features selectable 1.5/3/6W power inputs to adjust the level per zone and optimize coverage. Its ABS ring and white lacquered metal grille ensure durability and discreet integration into suspended ceilings. Installation is quick and secure using dog-ear clamps and the included cutting template. It requires a Ø 168mm hole, a clearance of 80mm , and sits flush with a Ø 203mm hole . With an IP20 rating, it is suitable for dry indoor environments.

Main features

• 2-way : 5" woofer + 13mm tweeter for good intelligibility of voice and background music.
• 100V line with selectable 1.5/3/6W taps per speaker.
• Frequency response : 80 Hz–20 kHz · SPL : 89 dB.

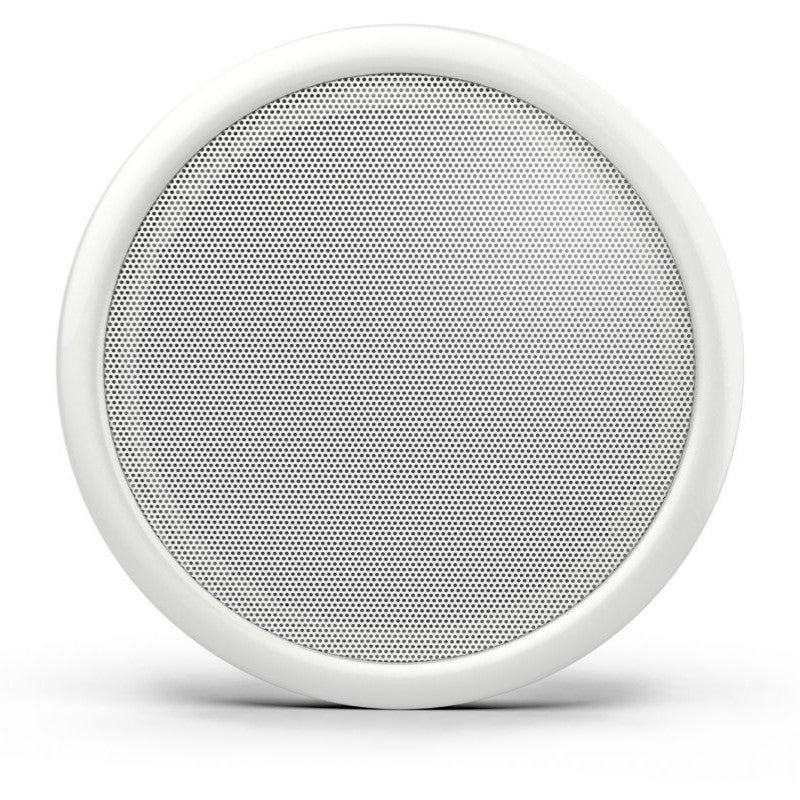

• Construction : ABS ring and removable metal grille , white finish.
• Quick assembly : dog-ear clamp system with cutting template.
• Measurements : Outer diameter 203 mm, depth 80 mm, cutting diameter 168 mm.
• Indoor use : IP20 rating.

Product benefits

• Clean and quick installation thanks to integrated clamps and click grid: less construction time and a flush finish.
• Zone flexibility : 1.5/3/6W sockets allow you to balance levels between areas with the same 100V amplifier.
• Clear announcements and background music with good intelligibility in everyday life.
• Reliability of materials (ABS + metal mesh) for continuous use.
• Aesthetic integration into the ceilings of shops, offices and hotels thanks to the discreet white finish.

Use cases

• Retail and shopping centers : homogeneous ambiance and signage.
• Hospitality and hotels : rooms, lobbies and corridors.
• Offices and coworking spaces : public address system and soft background music.
• Educational and healthcare centers : notices with good intelligibility in common areas.

Frequently Asked Questions

Does it need an amplifier? Yes. It's a 100V line -powered passive speaker; connect it to a compatible 100V amplifier and select the desired power input.

Which power output should I choose (1.5/3/6 W)? Generally, more watts equals higher volume. Use 1.5 W for small areas or quiet environments, 3 W for standard rooms, and 6 W when you need more sound pressure.

Is it suitable for outdoor use or bathrooms? No. Its IP20 rating limits it to dry indoor use. For humid areas, use models with a higher IP rating.

How is it installed? Make a Ø 168 mm cut, connect the 100 V wiring, and secure the speaker with the clips; the minimum clearance depth must be 80 mm. The grille is removable for easier assembly.

Installation and recommendations

• Check that there are no pipes or cables behind the ceiling before cutting (cutting template included).

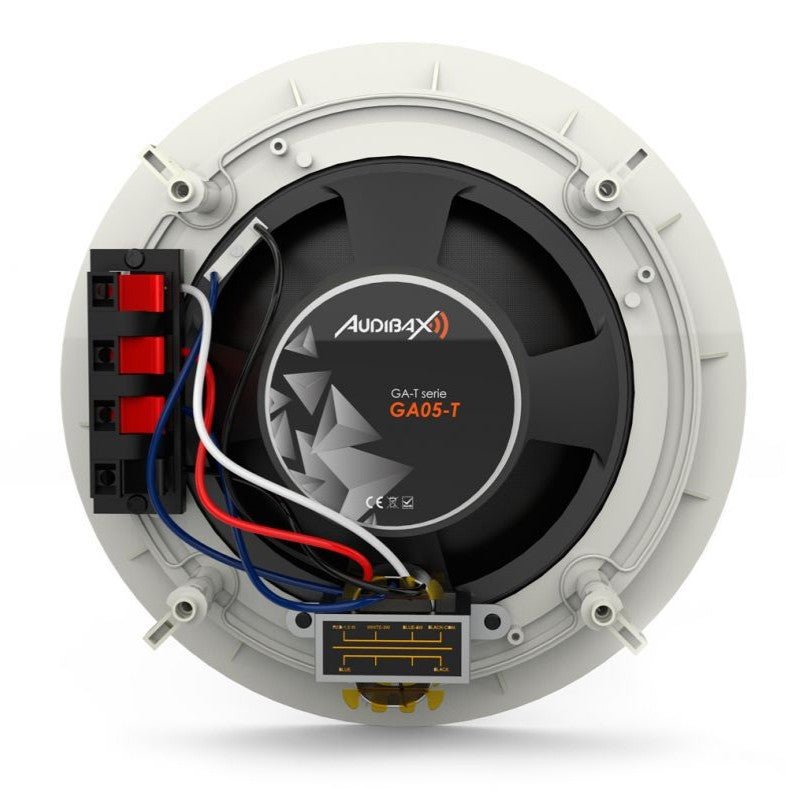

• Respect polarity and the selected power outlet on the 100V transformer.
• In 100V systems, connect the speakers in parallel and make sure that the sum of the selected power levels does not exceed the amplifier's rated power .
• Distribute enough units to avoid "dead zones"; adjust the power per speaker to balance the system.
• For indoor use only; do not expose to excessive moisture or dust ( IP20 ).

Project description

2-way recessed ceiling speaker for 100V line; selectable power 1.5/3/6W; transducers: 5" woofer + 13mm tweeter; frequency response 80Hz–20kHz; SPL 89dB; transducer impedance 8Ω; materials: ABS ring and metal grille; IP20 rating; dimensions: outer diameter 203mm, depth 80mm, cutout diameter 168mm; white color; dog-ear clamp mounting; removable grille.
