Audibax Dallas 210 Flat – RGBW 4-in-1 Flat PAR Spotlight (21 x 10 W, 210 W), DMX 8/4 channels, 30° angle

Audibax Dallas 210 Flat – RGBW 4-in-1 Flat PAR Spotlight (21 x 10 W, 210 W), DMX 8/4 channels, 30° angle

The Audibax Dallas 210 Flat is a flat PAR light with 21 x 10W Cree LEDs (210W total) and 4-in-1 RGBW color mixing, designed to deliver high illumination levels in a very flat and ergonomic body. Its quiet ventilation ensures very low noise operation, ideal for events, film sets, and spaces where ambient sound is important. It projects at a 30° angle and works in both standalone mode (with built-in programs and sound activation via an internal microphone) and master/slave and DMX modes. It features a backlit display with four buttons for quickly configuring functions such as dimmer , strobe, fixed color, or automatic color changes. The die-cast aluminum housing and included multi-function bracket facilitate versatile mounting on trusses, floors, or walls.

Main features

• Light source: 21 x 10W Cree LEDs (210W total), RGBW 4 in 1 .
• Optics: 30° aperture angle, flicker-free .
• Operating modes: standalone, master/slave, DMX (8-channel table and 4-channel alternate mode).
• DMX functions: RGBW control, master dimmer , strobe, color change/dimming, sound activation.

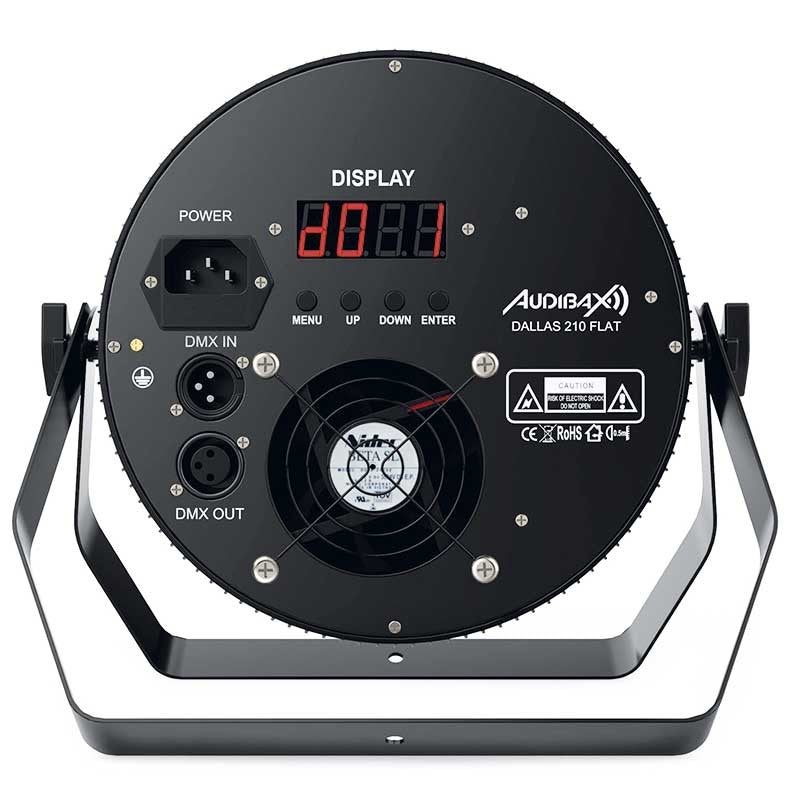

• Local control: backlit screen with Mode , Up , Down , Enter buttons.
• DMX connections: 3-pin XLR (input/output). Compatible with 5-pin networks via adapters when required.
• Construction: robust metal casing, flat and compact profile; low noise regulated ventilation .
• Power supply: AC 90–240 V , 50/60 Hz ; typical consumption : 200 W.

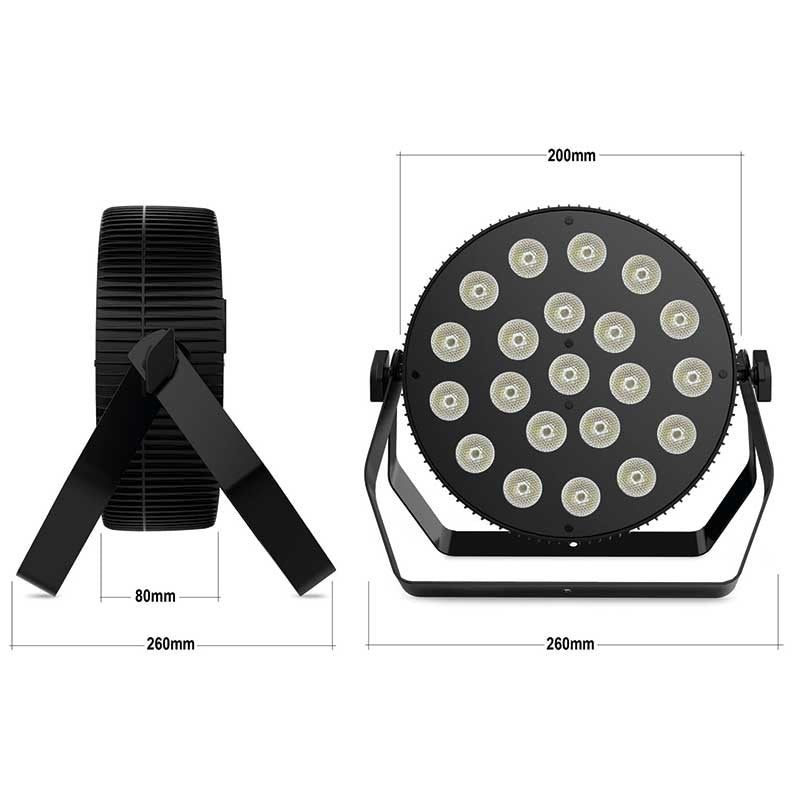

• Approximate dimensions with handle: 260 × 260 × 80 mm; case color: black.

Product benefits

• Power and color : 21 x 10 W with RGBW mixing to obtain from pastel tones to warm and highly saturated colors with smooth transitions.
• Silent : optimized ventilation for events, theater or video where equipment noise must be minimal.
• Versatile control : internal programs, sound activation and DMX control with 8/4 channel mapping for easy integration into any rig.
• Flexible installation : flat aluminum chassis and multi-function stand that allow mounting on the floor, wall or truss in tight spaces.

Use cases

• Events and rental : color washes on stages, fairs and presentations.
• Clubs and bars : color changes and strobes synchronized with the music.
• Theatre and studio : flicker-free ambient lighting for cameras.
• Fixed installation : auditoriums, cultural centers and multipurpose rooms.

Frequently Asked Questions

• How many DMX channels does it use? It has an 8-channel mode and an alternative 4-channel mode, documented in its manual.
• Does it have 5-pin DMX connectors? The unit offers 3-pin XLR input/output ; it can be integrated into 5-pin lines using standard adapters.
• Can it be used without a DMX console? Yes, it includes internal programs, fixed color, and sound activation .

DMX modes and control (summary)

• 8 channels: General dimmer, R, G, B, W, strobe, macros/auto, sensitivity/sound.
• 4 channels (alternative): General Dimmer + R/G/B/W (according to the table in the manual).

Project description

Flat PAR spotlight with 21 x 10W Cree LEDs (RGBW 4-in-1), total power 210W, 30° beam angle, standalone/master/slave/DMX modes (8/4 channels), RGBW, strobe and dimmer functions; internal microphone for sound activation; control via display and 4 buttons; DMX XLR 3-pin connections (In/Out); AC power supply 90–240V, 50/60Hz; consumption 200W; black aluminum housing; dimensions with handle 260 × 260 × 80 mm; includes multifunction bracket.
