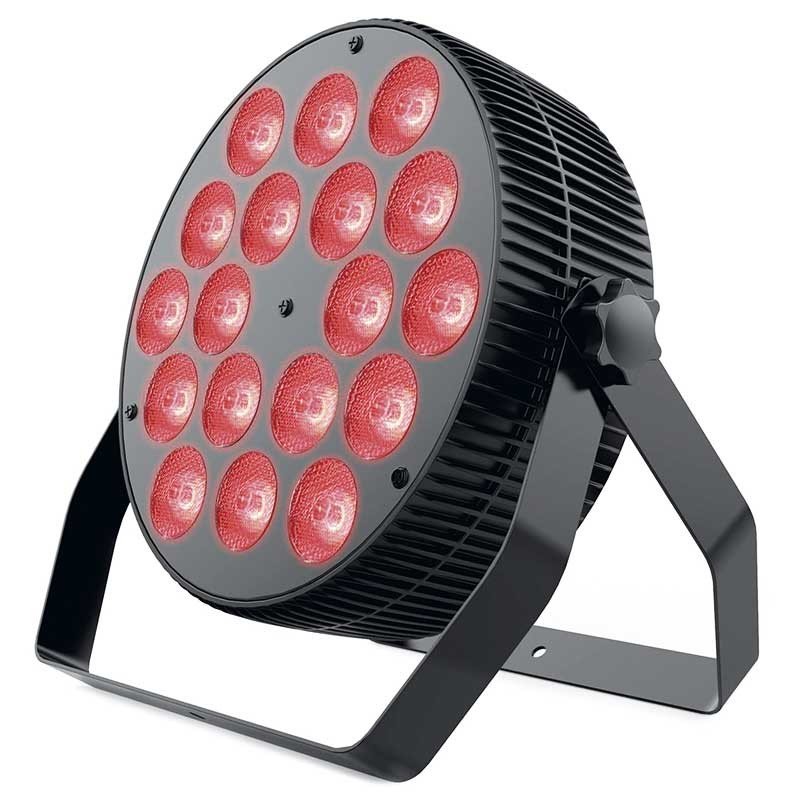

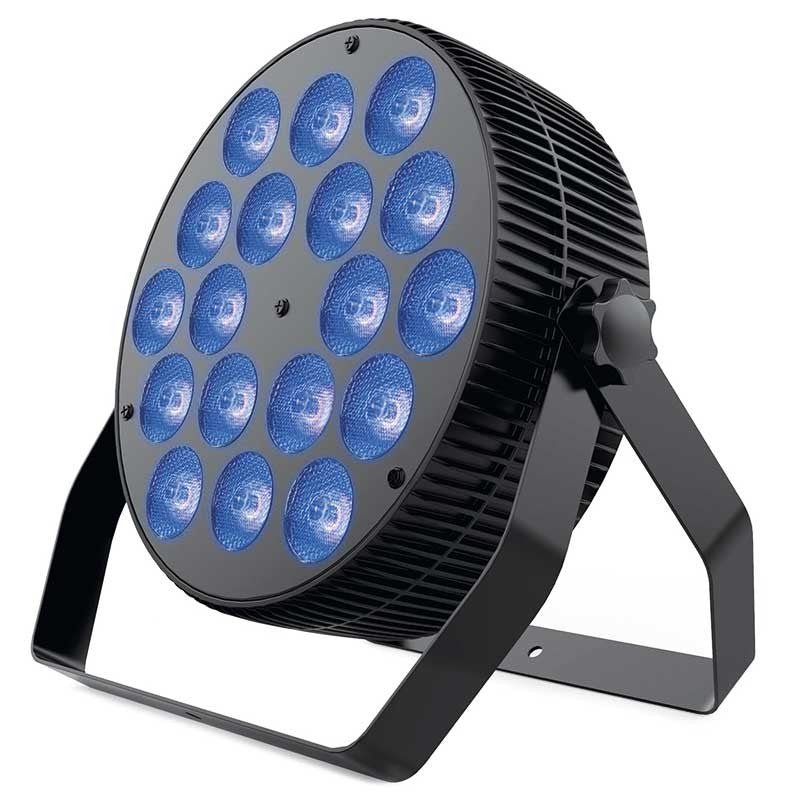

Audibax Dallas 180 Mk2 - RGBW 18×10 W (180 W) Flat LED PAR Spotlight with Silent Ventilation

Audibax Dallas 180 Mk2 - RGBW 18×10 W (180 W) Flat LED PAR Spotlight with Silent Ventilation

The Audibax Dallas 180 Mk2 is the evolution of the brand's well-known 180W PAR, now featuring quiet ventilation and an aluminum housing for more comfortable and durable professional use. It incorporates 18 x 10W RGBW 4-in-1 LEDs that allow for precise color mixing—from soft pastels to highly saturated solid colors—with a 30° beam angle and flicker-free performance. In addition to Standalone, Sound, and Master/Slave modes, it offers DMX512 control with two profiles (8/4 channels) for integration into any rig . Local operation is clear via a backlit display and four buttons (Mode, Enter, Up, Down). DMX connectivity is via 3-pin XLR (IN/OUT) , and the unit comes with a multi-function bracket for floor, truss, or wall mounting.

Main features

• Light source: 18 × 10 W RGBW LED 4-in-1 (total power 180 W).
• Optics: 30° beam angle for uniform coverage in stages and events.
• Control: DMX512 with 8/4 channels , Auto, Sound and Master/Slave modes.
• DMX functions: master dimmer, independent R/G/B/W dimmers, strobe, color changes (jump, fade, pulse), sound activation.

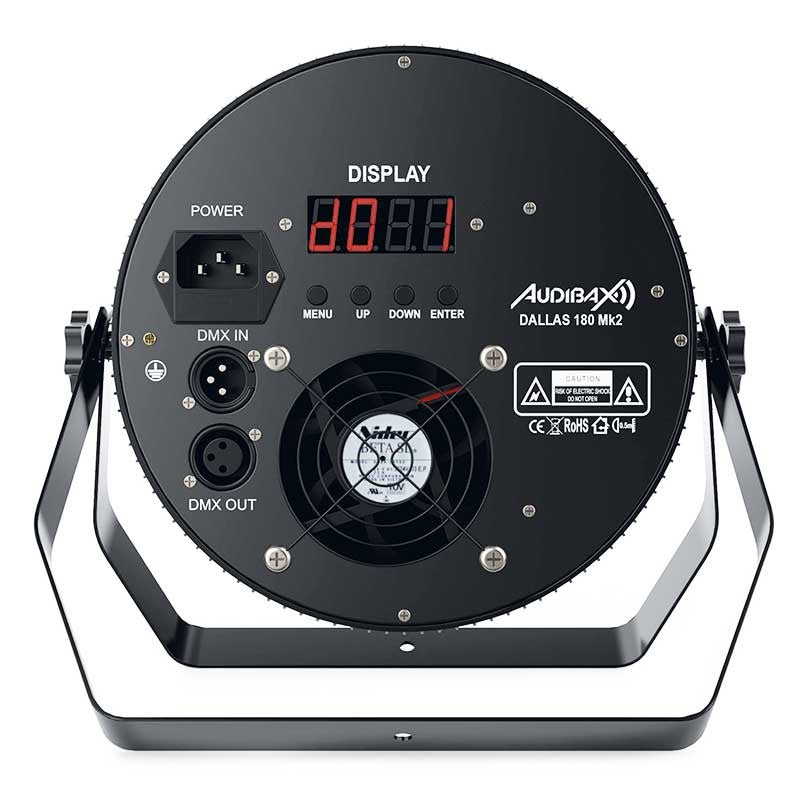

• Interface: backlit screen and Mode/Enter/Up/Down buttons.

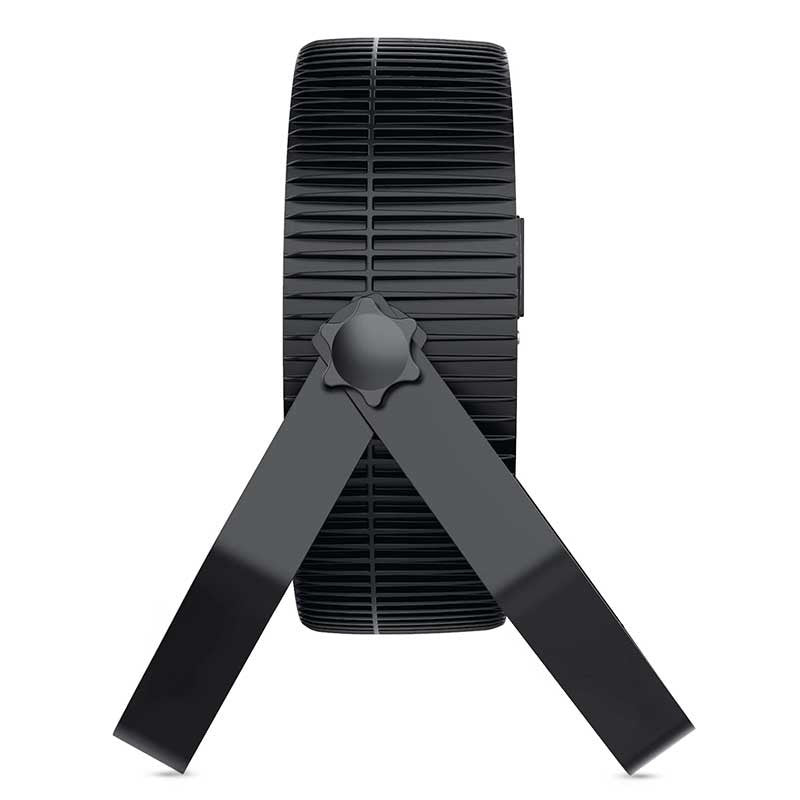

• Construction: black aluminum , flat and compact design, quiet ventilation .
• DMX connections: IN XLR 3 pins (male) and OUT XLR 3 pins (female) .

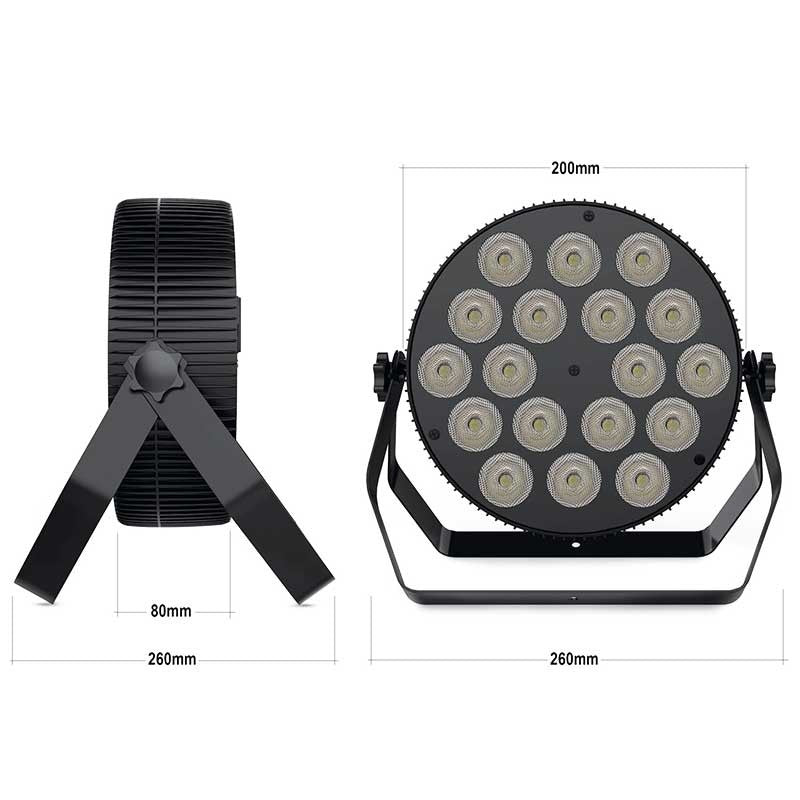

• Dimensions (with handle): 260 × 260 × 80 mm .
• Power consumption: 200 W.
• Use: indoors.

Product benefits

• Versatile colorimetry: the 4-in-1 RGBW system offers clean whites and smooth color transitions without artifacts.
• Professional integration: 8/4 channel DMX profiles for quick or advanced programming as needed.
• Discreet operation: silent ventilation for theaters, studios and events where noise matters.
• Reliability and ergonomics: aluminum chassis, flat format and screen with 4 buttons for quick adjustments during assembly.
• Flicker-free: stable lighting for cameras and streaming.

Use cases

• Live shows and festivals: homogeneous color wash with DMX console control.
• Corporate events and rental : quick assembly, quiet operation and robust body.
• Theater, schools and community centers : scenes and environments with fluid color changes.
• Audiovisual production (interior): flicker-free color fills on recording sets.

Frequently Asked Questions

• Does it have 3 or 5 pins? The Dallas 180 Mk2 model is equipped with 3-pin DMX connectivity (IN/OUT) .
• How many DMX modes does it include? It has two profiles : 8 channels and 4 channels (plus Auto, Sound and Master/Slave).
• Is it suitable for outdoor use? No, it is designed for indoor use.
• Does it come with a stand? Yes, it includes a multi-function stand for floor mounting or anchoring.

Project description

Flat LED PAR spotlight: 18 × 10 W RGBW 4-in-1 (180 W), 30° angle, Auto/Sound/Master-Slave modes, DMX512 control with 8/4 channel profiles, R/G/B/W dimmer functions, strobe and color macros; interface with backlit display and 4 buttons; black aluminum housing; DMX IN/OUT XLR 3 pin ; dimensions 260 × 260 × 80 mm; consumption 200 W; indoor use.
