Audibax Missouri 3000 - Dual VHF Wireless System with 1 Handheld Microphone + Bodypack (Headset and Lavalier), Receiver with Diversity Antennas

Audibax Missouri 3000 - Dual VHF Wireless System with 1 Handheld Microphone + Bodypack (Headset and Lavalier), Receiver with Diversity Antennas

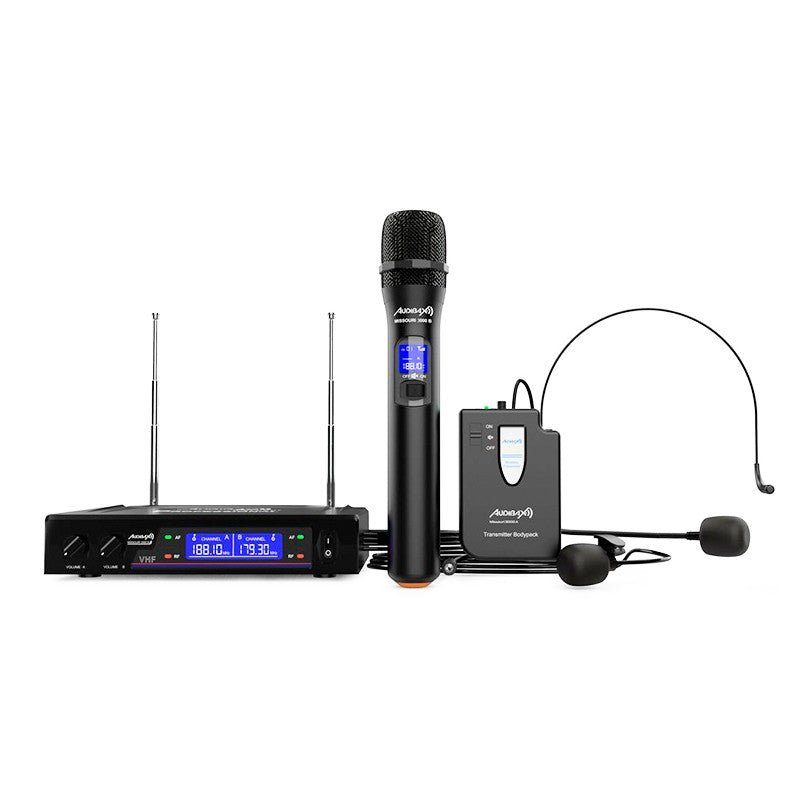

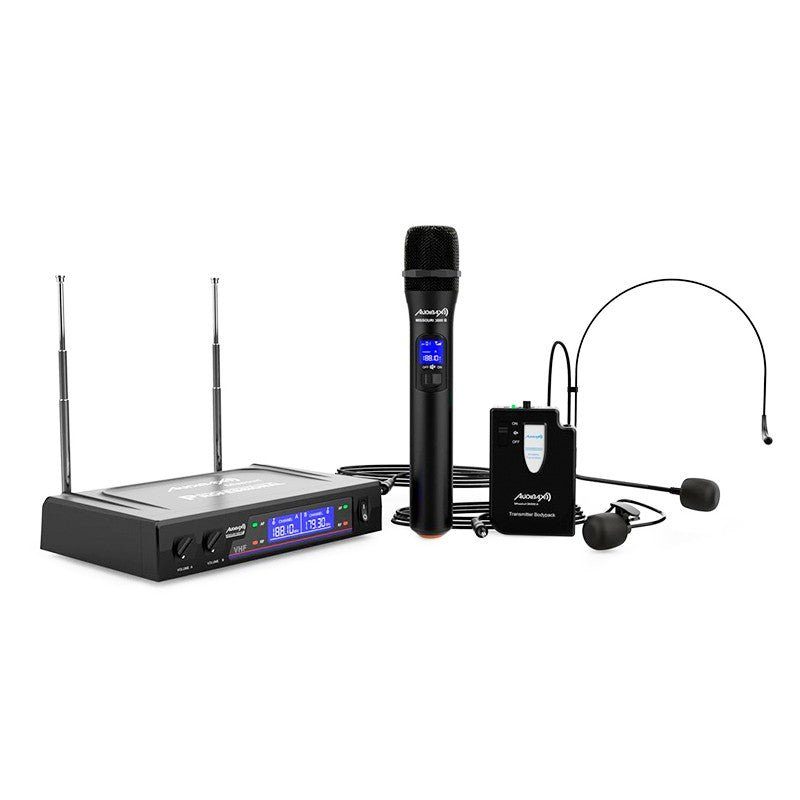

The Audibax Missouri 3000 is a complete dual VHF wireless voice package that combines a handheld microphone and a bodypack transmitter with a headset microphone and a lavalier microphone , all managed by a dual receiver with diversity antennas for enhanced RF stability. It operates in the 179.300–188.100 MHz range, with a frequency response of 40 Hz to 18 kHz , a signal-to-noise ratio >103 dB , and THD <0.5% , parameters that allow for clear voice with good dynamic range in classrooms, events, religious services, corporate settings, or rental environments. The receiver offers XLR outputs and a 6.35 mm combo jack output for integration with mixing consoles, interfaces, or amplifiers. Each transmitter is powered by two AA batteries , and the receiver is powered by 230 V AC . Typical coverage is up to 80 m under optimal conditions.

Main features

• Configuration: Dual VHF system with 1 handheld microphone + 1 bodypack and 2 microphones (headset and lapel).
• Operating frequency: 179.300–188.100 MHz (VHF), quartz control for high stability ( ±0.0005% ).
• Capsules: cardioid dynamics for good directivity and coupling rejection.

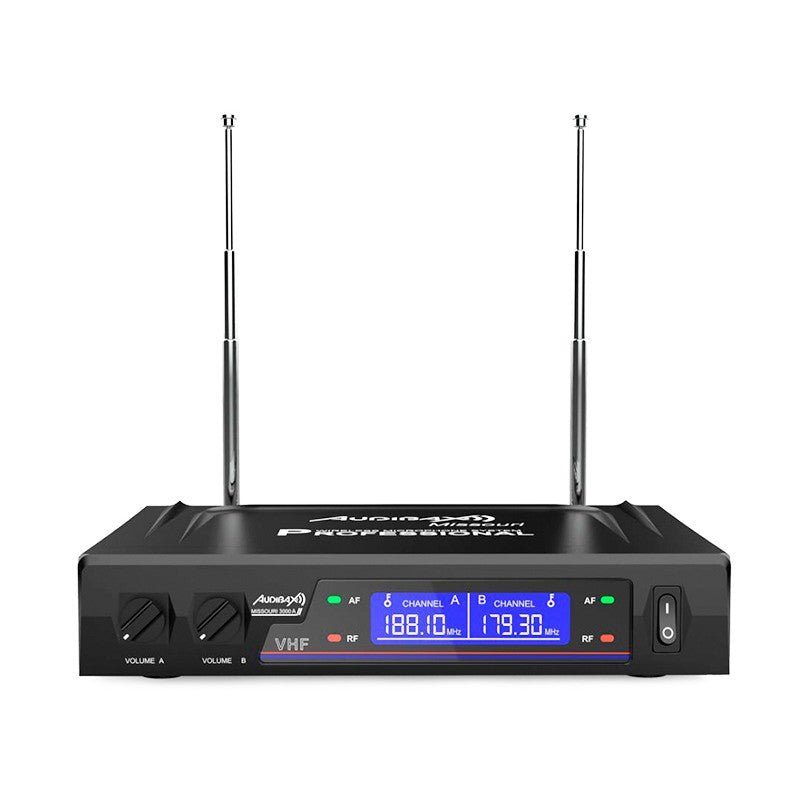

• Receiver: dual channel with RF/AF indicators and display , Diversity antennas , independent volumes.
• Audio outputs: XLR and 6.35 mm jack (mix) for flexible connection.
• Audio performance: S/N >103 dB , THD <0.5% , response 40 Hz–18 kHz , sensitivity −105 dB .
• Range: up to 80 m in line of sight.
• Power supply: transmitters 2×AA ; receiver 230 V AC .
• Controls: On/Off and Mute on the handheld microphone.

Product benefits

• All-in-one and versatile: choose hand, headband or tie depending on the event without changing systems.
• Wireless stability: Diversity reduces multi-path dropouts and improves reception.
• Clear and consistent audio: cardioid capsules and wide dynamic range for vocals with presence.
• Easy integration: XLR and jack outputs compatible with most equipment.
• Practical operation: volumes per channel, RF/AF indicators and display for quick status control.

Use cases

• Training and corporate: lectures, classes, meetings and presentations.
• Events and rentals: fairs, shows , entertainment and celebrations.
• Worship and culture: liturgy, public readings, institutional acts.
• Fitness and leisure: monitors with headsets, masters of ceremonies with hand or lavalier microphones.

Package contents

• 1 dual VHF receiver with Diversity antennas.

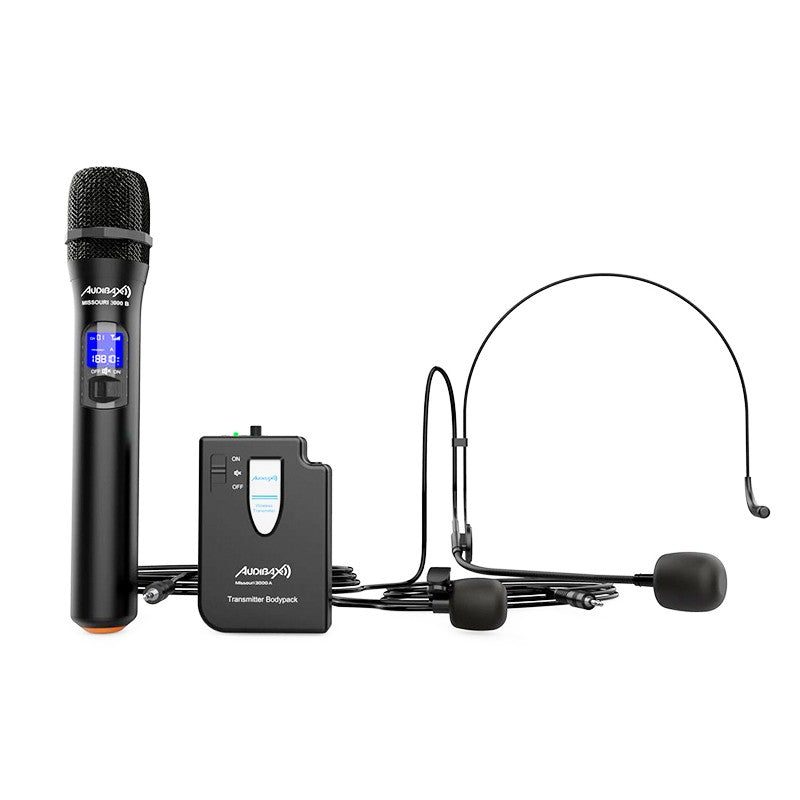

• 1 handheld microphone with display and On/Off/Mute switch.
• 1 bodypack transmitter.
• 1 headset microphone and 1 lavalier microphone.
• User manual.

Frequently Asked Questions

• Can I use a handheld and a headset/tie-on at the same time? Yes. The receiver is dual ; each channel manages a transmitter (handheld and bodypack) with independent volume controls .
• Which outputs do I use to connect it? For mixers or interfaces, use XLR ; for quick auxiliary inputs, the 6.35 mm mixed output .
• How many simultaneous systems can the space accommodate? It's possible to use multiple systems on VHF if free frequencies are planned and physical separation is maintained between receivers/antennas. Check local spectrum regulations before the event.
• What kind of battery life do they offer? It depends on the batteries and usage; with alkaline AA batteries , you get a typical long run time for standard days.

Connections and power supply

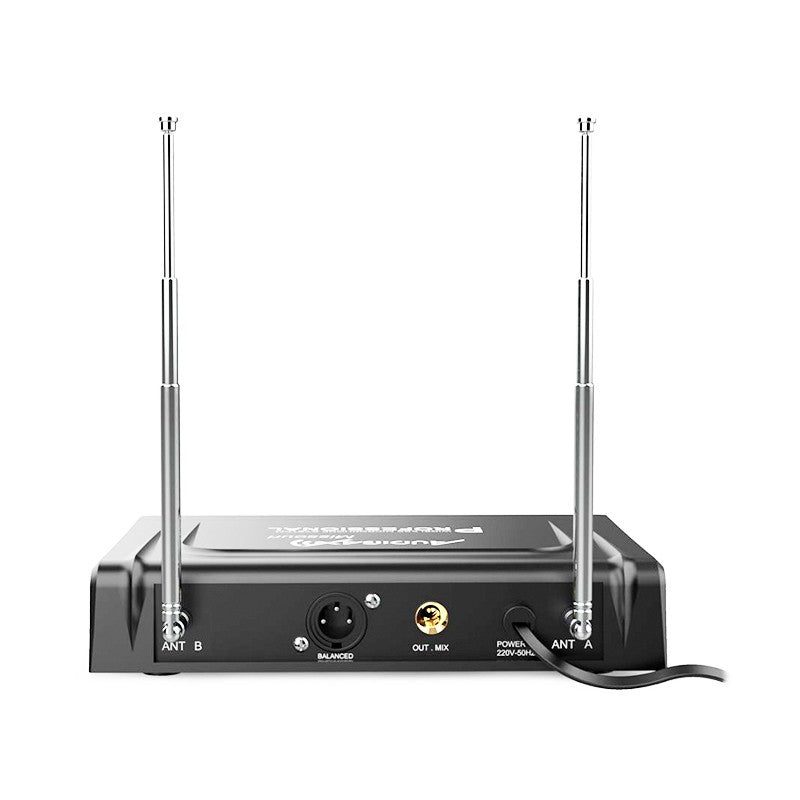

• Receiver outputs: XLR and 6.35 mm jack (mix) .
• Power supply: receiver 230 V AC ; transmitters 2×AA each.

Project description

Dual VHF wireless system (range 179.300–188.100 MHz ) with 1 handheld microphone and 1 bodypack (includes headset and lavalier ); Diversity antennas ; RF/AF indicators and display ; XLR and 6.35 mm jack outputs (mix) ; 40 Hz–18 kHz response ; S/N >103 dB ; THD <0.5% ; ±0.0005% stability ; −105 dB sensitivity; cardioid dynamic capsules; transmitter power 2×AA and receiver 230 V AC ; range up to 80 m .
