Audibax Kansas - 2x40W Stereo HiFi Amplifier with Bluetooth, MP3, FM and USB/MicroSD Reader

Audibax Kansas - 2x40W Stereo HiFi Amplifier with Bluetooth, MP3, FM and USB/MicroSD Reader

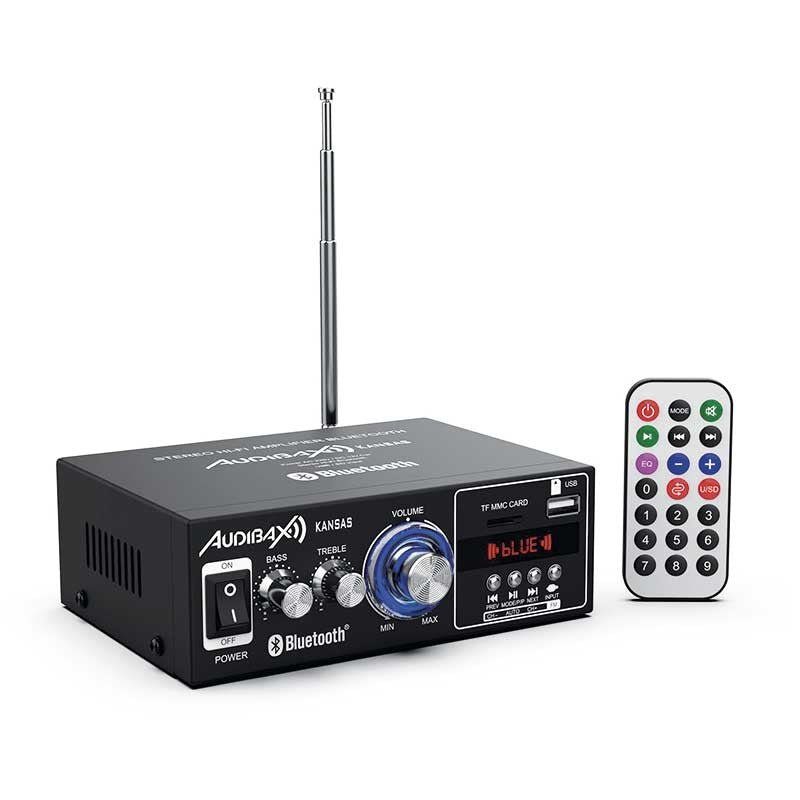

The Audibax Kansas is a compact stereo amplifier designed for simple sound reinforcement in homes, small businesses, and basic installation projects. It delivers 2 x 40 W (maximum power) to 8–16 Ω speakers, Bluetooth connectivity for wireless music playback, and an integrated MP3 player for USB and MicroSD (TF) files . It features an FM radio (87.5–108.5 MHz) with tuning via its multifunction display and is conveniently operated with the included remote control . Its dual AC 220–240 V / DC 12 V (5 A) power supply makes it versatile for both fixed and mobile installations. The highly portable chassis measures 145 x 160 x 55 mm and weighs only 950 g , and includes overload protection for added safety.

Main features

• Output power: 2×40 W max. (stereo) for 8–16 Ω speakers.
• Connectivity: Bluetooth for wireless playback, USB and MicroSD/TF reader with MP3 support.
• FM Radio: 87.5–108.5 MHz with multifunction display for tuning and control.
• Auxiliary input: Stereo RCA line ( sensitivity 0–2 V / 47 kΩ ).
• Total sound control: independent volume , bass and treble on the front panel.
• Remote control included for playback and volume functions.
• Dual power supply: AC 220–240 V, 50/60 Hz or DC 12 V (5 A) depending on the installation.
• Safety: overload protection during operation.
• Compact and lightweight format: 145 × 160 × 55 mm; 950 g; black color.

Product benefits

• Instant and hassle-free sound: connect your mobile via Bluetooth or use USB/MicroSD and play instantly.
• Installation versatility: works with mains electricity or with a 12V/5A DC power supply in mobile projects.
• Simple control: front display and remote control to manage inputs, volume and playback.
• Space adaptable: sufficient power for small and medium-sized rooms with 8–16 Ω speakers.
• Reduced maintenance: simple electronics and overload protection for reliable use.

Use cases

• Home : music in the living room, bedroom or kitchen without bulky equipment.
• Small business : basic background music with FM radio or playlists on USB/MicroSD.
• Temporary installations : events, stands or mobile setups thanks to the 12V input.
• Classrooms and meeting rooms : audio playback from mobile phones, USB drives or auxiliary sources.

Connections and controls

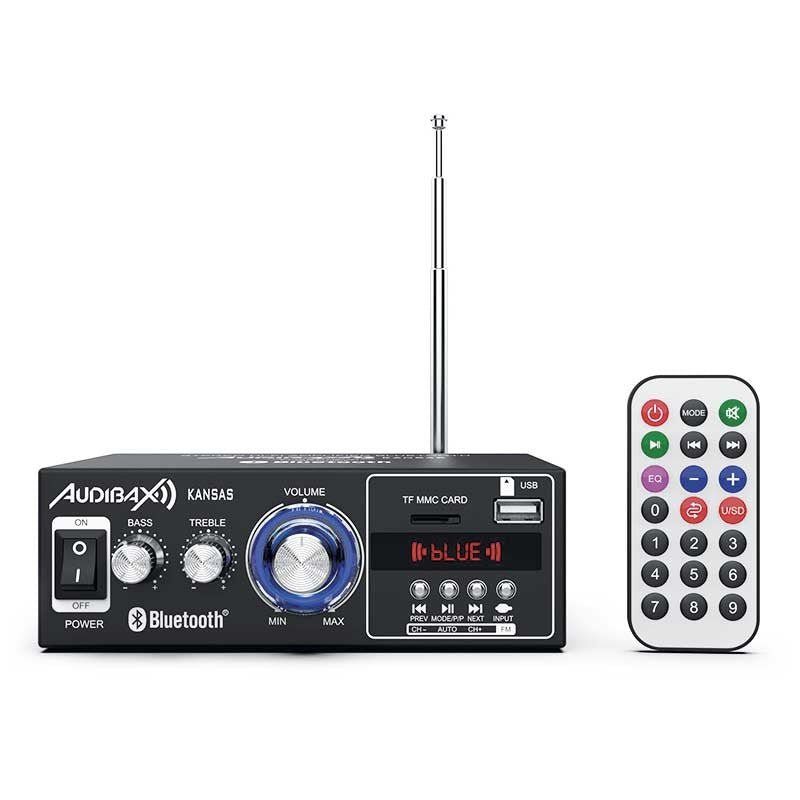

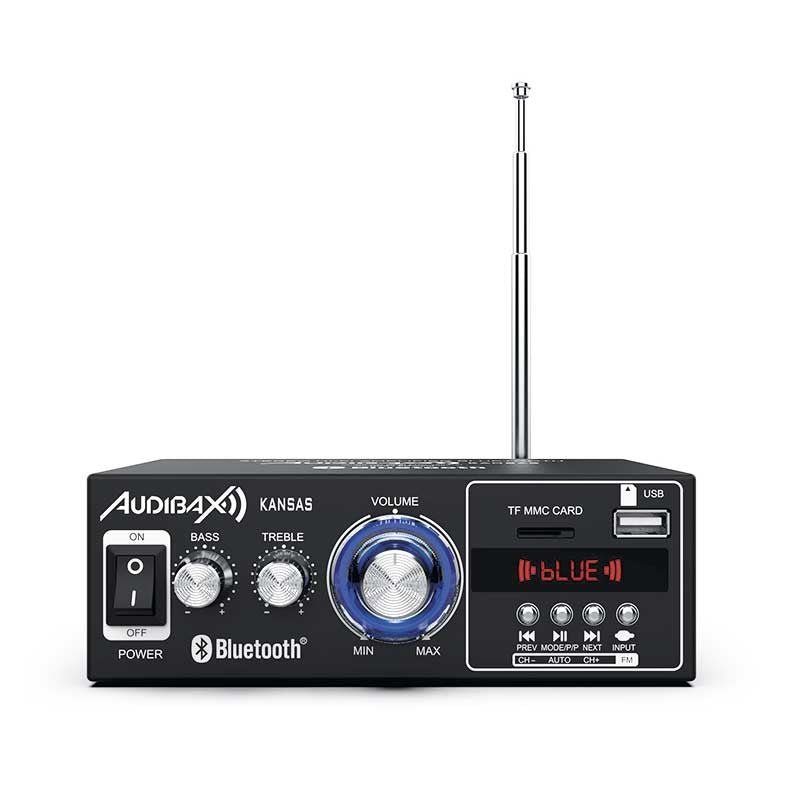

• Front panel: volume, bass and treble potentiometers; playback keys; display ; USB reader and MicroSD/TF slot .

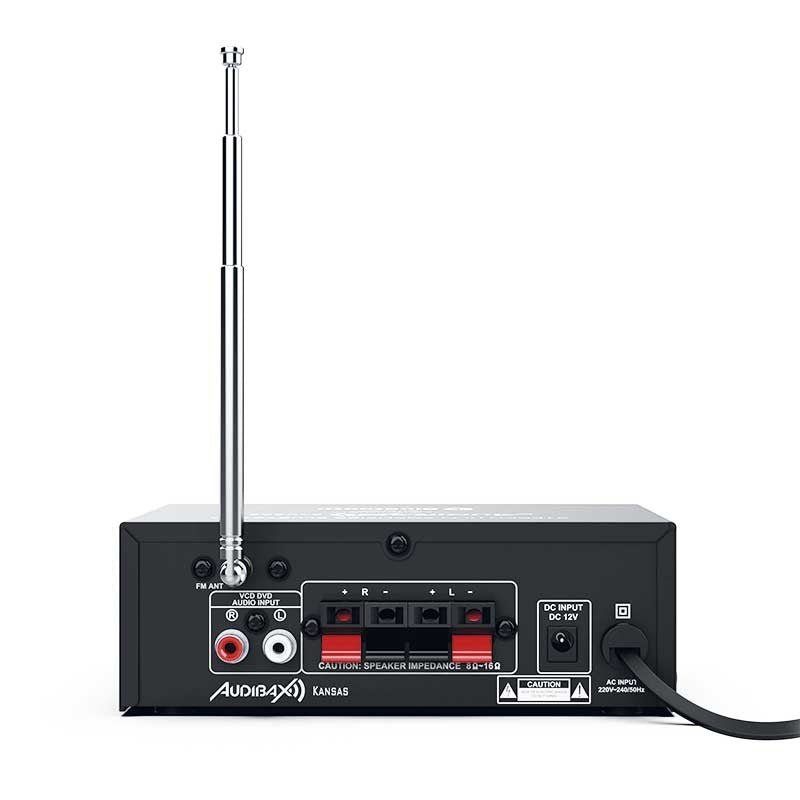

• Rear: AUX RCA line input ; L/R speaker outputs ; FM antenna connector; AC 220–240 V and DC 12 V power inputs.

Frequently Asked Questions

• What speakers can I use? Any passive pair of 8–16 Ω within that nominal impedance.
• What formats does it play via USB/MicroSD? Standard MP3 files from USB flash drives and MicroSD/TF cards.
• Does it include an FM antenna? It has a rear FM antenna connector ; use a suitable antenna to improve reception.
• What is the actual power? The specified figure is the maximum power declared by the manufacturer (2×40 W max.).
• Does it come with a remote control? Yes, it includes a remote control for basic functions.

Installation and usage recommendations

• Use quality 12V/5A power supplies if you opt for DC power.
• Connect 8–16 Ω speakers respecting polarity and avoid short circuits at terminals.
• For FM radio , connect a suitable antenna to the rear connector to optimize reception.
• Avoid blocking ventilation and handling the equipment in humid environments.

Package contents

• Audibax Kansas stereo amplifier
• Remote control
• User manual

Project description

Stereo HiFi amplifier with 2×40 W max. , Bluetooth , MP3 player via USB/MicroSD , FM radio 87.5–108.5 MHz , AUX RCA input (line 0–2 V / 47 kΩ), remote control , overload protection , AC 220–240 V 50/60 Hz or DC 12 V (5 A) power supply , dimensions 145 × 160 × 55 mm , weight 950 g , black color.
