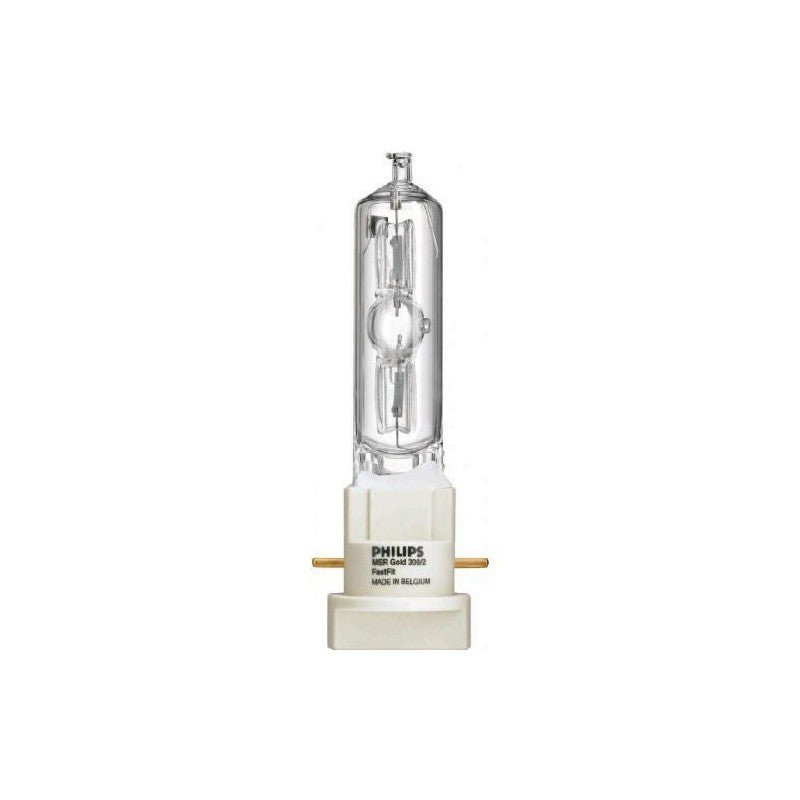

Philips MSR Gold 300/2 MiniFastFit - 300W Discharge Lamp PGJX28 (9300K)
The Philips MSR Gold 300/2 MiniFastFit is a professional discharge lamp for entertainment applications, designed for projectors and moving heads that use a PGJX28 socket. Its FastFit design allows for quick replacement in seconds, minimizing downtime on tours, in clubs, and in theaters. It features gold-plated pins for improved current transfer and extended lamp holder life. With 300W of power, a color temperature of 9300K , and a short arc of 5mm , it delivers sharp beams and a high luminous intensity of 22,700 lm while maintaining good color rendering ( CRI 78 ). The lamp is dimmable (depending on the equipment), can operate in any position , and is optimized for DJ/club and stage applications.
Main features
-
FastFit Mount (PGJX28): Quick and safe lamp change, designed for intensive use.
-
300 W of power with a nominal current of 3.75 A.
-
Luminous flux: 22,700 lumens for powerful and defined beams.
-
Color temperature: 9300 K (cool white) for sharp effects and high contrast.
-
Short arc: 5.0 mm for maximum intensity in the center of the beam.
-
CRI: 78, balance between performance and naturalness of color.
-
Adjustable: Yes (with compatible electronic equipment).
-
Working position: universal.
-
Dimensions: diameter 23 mm; total length 126 mm; LCL 66.8 mm (65.8–67.8 mm).
-
Nominal luminous efficacy: 64–75 lm/W.
-
Average lifespan: 750 h (at 50% failure rate).
-
“Gold” construction: gold pins that improve contact and help prolong the life of the lamp/lamp holder assembly.
-
Application: entertainment (DJ/Club, stage, rental).
-
Units per outer packaging: 4 (unit sale: 1 piece).
-
Product codes: Order code Philips 22111100; 12NC 928177105115.
Product benefits
-
Fewer stops: the FastFit system drastically reduces replacement time at live events.
-
Make a powerful and clean shot: the 5mm arc and 9300K deliver defined “beam” effects and great punch.
-
Reliability on tours: gold pins for better electrical contact and less wear on the lamp holder.
-
Total versatility: universal working position and possibility of adjustment when the equipment allows it.
Use cases
- 300W beam/spot moving heads with PGJX28 base in clubs, theaters and rental companies.
- Projectors and stage effects that demand quick replacement and high luminous performance.
Frequently Asked Questions
-
Is it dimmable? Yes, the lamp is dimmable; it requires compatible electronic equipment that allows dimming.
-
Does it have a specific power position? No; it supports a universal position , facilitating integration into different devices.
-
What is its lifespan? Average lifespan of 750 hours (L50), conditioned by the usage cycle and the equipment.
Safety and recycling
This discharge lamp contains mercury. In case of breakage, ventilate the area, collect the fragments wearing gloves, place them in a sealed bag, and recycle them according to local regulations. Do not use a vacuum cleaner.
Project description
Philips MSR Gold 300/2 MiniFastFit discharge lamp, 300 W, PGJX28 base, 22,700 lm luminous flux, 9300 K , CRI 78 , 5.0 mm arc , dimmable , universal position ; dimensions: diameter 23 mm , total length 126 mm , LCL 66.8 mm (65.8–67.8 mm); lamp current 3.75 A ; average life 750 h ; sold individually (outer box of 4 units). Philips codes: Order code 22111100 , 12NC 928177105115 .
