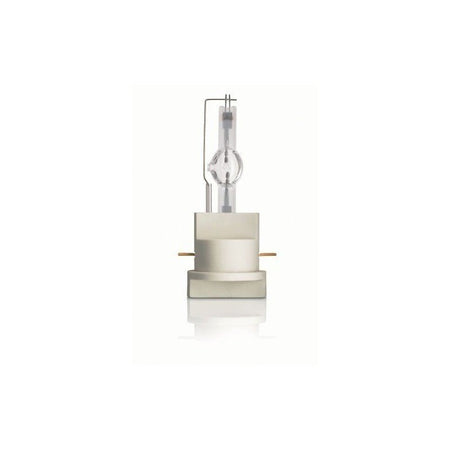

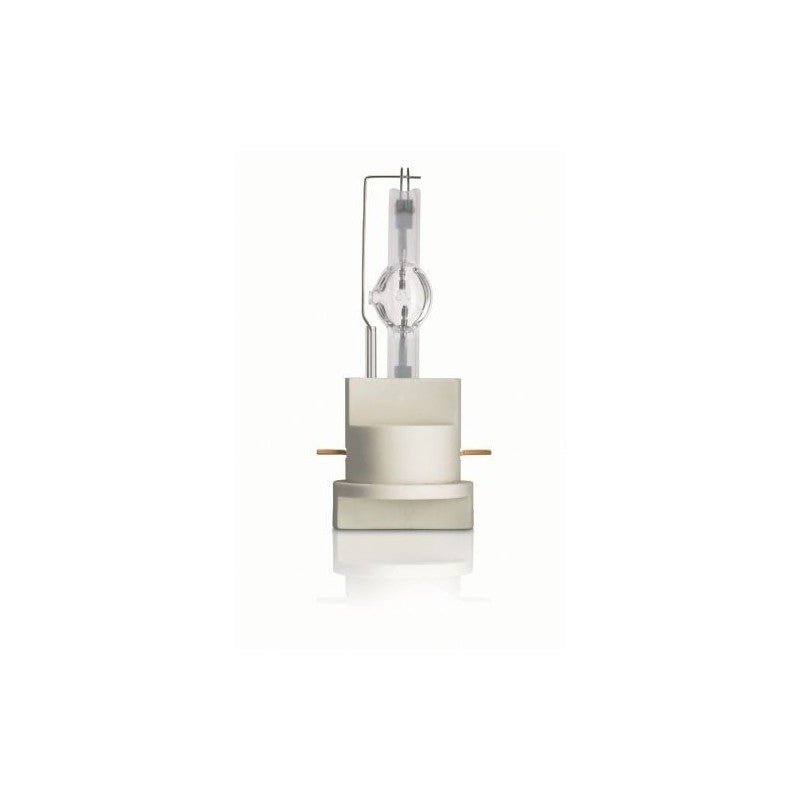

Philips MSR Gold 1200 FastFit - 1200W PGJX50 (6000K) Discharge Lamp for Entertainment
The Philips MSR Gold 1200 FastFit (order code 22129600 ) is a high-performance monocoque HID lamp designed for moving heads and entertainment projectors using a PGJX50 base. Its FastFit architecture allows for lamp changes in seconds , minimizing downtime in touring, theaters, TV, and clubs. Philips' P3 technology supports universal position operation and high temperatures, maintaining stable flux and consistent lifespan. With 1200W of power, a color temperature of 6000K , and a short arc of 5.5mm , it delivers a bright, sharp beam with a CRI of 80 and a nominal flux of up to 100,000 lm , ideal for high-impact beam/spot and wash effects. The signature gold-plated pins of the MSR Gold series improve electrical contact and help prevent premature lampholder failure.
Main features
-
FastFit Mount (PGJX50): Quick and secure removal and insertion.
-
Power: 1200 W · Rated current: 15 A.
-
Luminous flux: up to 100,000 lm · CRI: 80.
-
Color temperature: 6000 K (cool white) with chromaticity coordinates x 0.318 / y 0.327 .
-
Light arc: 5.5 mm for maximum intensity in the center of the beam.
-
Adjustable: Yes (with compatible electronic equipment).
-
Working position: Universal (any position).
-
Minimum ignition voltage: 198 V (ignition supply).
-
Average lifespan: 750 h (at 50% failure rate).
-
Dimensions: total length 128 mm; diameter 26.1 mm; LCL (luminous center) 65 mm (tolerance 64–66 mm); width F 50 mm.
-
Thermal limits: max. bulb 950 °C; max. pinch 500 °C.
-
Net weight: 0.147 kg.
-
Units per outer packaging: 4 (unit sale: 1 piece).
-
Family: MSR Gold™ FastFit with gold pins and P3 technology.
Product benefits
-
Less downtime: the FastFit system speeds up replacement during setups and live shows.
-
Powerful and sharp beam: high flow and short arc for defined beams, vivid colors and great visual punch.
-
Greater reliability under demanding conditions: P3 technology and gold-plated pins for working at higher temperatures with a lower risk of premature failure.
-
Real versatility: universal position and possibility of dimming with compatible ballasts/igniters.
Use cases
- 1200W beam/spot/wash moving heads with PGJX50 base for tours, festivals, theaters, TV, corporate events and clubs.
- Replacement of luminaires that require MSR Gold 1200 FastFit to maintain performance and color consistency.
Frequently Asked Questions
-
Is it compatible with my equipment? If your luminaire specifies MSR Gold 1200 FastFit PGJX50 or equivalent 1200W FastFit fixtures, then it is directly compatible.
-
Can I adjust the intensity? Yes, provided the light fixture/ballast allows dimming of discharge lamps.
-
What maintenance does it require? Avoid touching the bulb with your hands, respect cooling cycles, and replace it at the end of its life to protect optics and lamp holders.
Safety and recycling
Contains mercury. In case of breakage, ventilate the area for 30 minutes, collect the fragments wearing gloves, and place them in a sealed bag for disposal at an authorized recycling center . Do not use a vacuum cleaner. Always follow the manufacturer's safety instructions.
Project description
Philips MSR Gold 1200 FastFit HID lamp, PGJX50 base, 1200 W , 6000 K , CRI 80 , 100,000 lm luminous flux , 5.5 mm arc, 15 A current , ignition ≥198 V , dimmable , universal position , average life 750 h ; dimensions: 128 × 26.1 mm , LCL 65 mm (64–66 mm), F width 50 mm ; thermal limits: max. bulb 950 °C , max. pinch 500 °C ; sales unit 1 piece , outer packaging 4 units ; Philips code 22129600 , 12NC 928175005115 .
