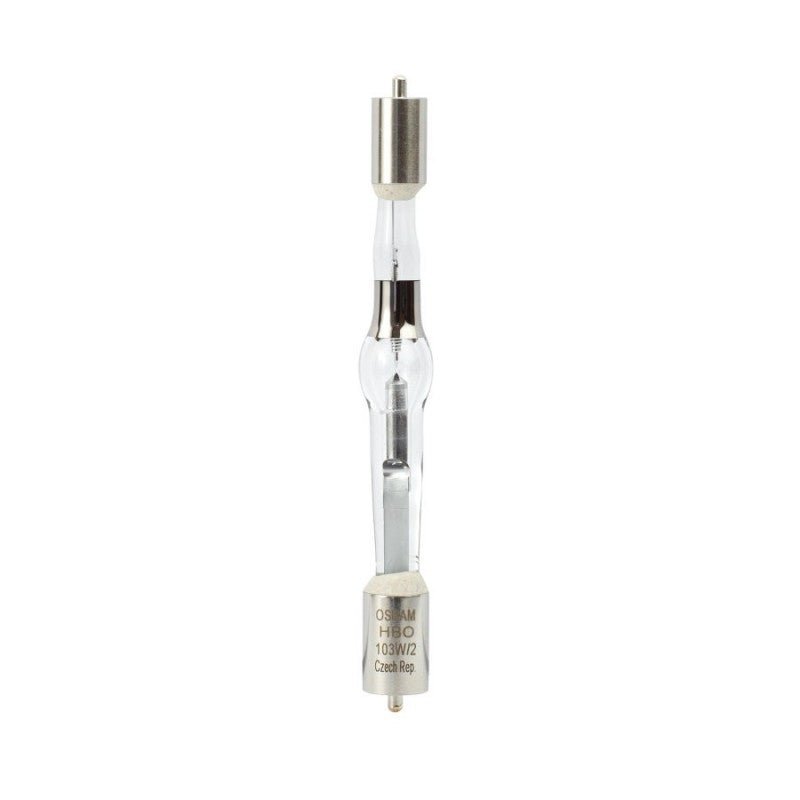

OSRAM HBO 103 W/2 - 103 W Mercury Short Arc Lamp for Microscopy and UV Curing

OSRAM HBO 103 W/2 - 103 W Mercury Short Arc Lamp for Microscopy and UV Curing

The OSRAM HBO 103 W/2 is a 103 W DC mercury short-arc lamp designed to deliver extremely high luminance and powerful radiation in the UV and visible ranges . Its multilinear spectrum and arc stability make it an ideal source for fluorescence microscopy , UV curing , and fiber optic illumination . It provides a nominal luminous flux of 2,550 lm and an intensity of 300 cd , with an efficacy of 30 lm/W . The compact geometry (Ø 10 mm , 90 mm length, LCL 43 mm ) and the SFa9-2 (anode) / SFa7.5-2 (cathode) bases facilitate its integration into laboratory lamphouses and scientific imaging systems. It has a nominal lifespan of 300 h and an S90 burn-in position (anode down) for stable performance.

Main features

• Technology: Double-ended mercury short-arc lamp (HBO)
• Rated power: 103 W (DC)
• Voltage/current: 17–25 V / 4.0–5.0 A
• Nominal luminous flux: 2,550 lm
• Luminous intensity: 300 cd
• Luminous efficacy: 30 lm/W
• Spectrum: multilinear with intense emission in UV and visible
• Dimensions: diameter 10 mm; total length 90 mm; LCL 43 mm
• Mounting length: 82 mm (without pins)
• Bases: anode SFa9-2 / cathode SFa7.5-2
• Burning position: s90 (anode down)
• Nominal lifespan: 300 hours
• Net weight of the lamp: 11 g

Product benefits

• Efficient fluorescence excitation: Multilinear spectrum and high luminance maximize signal in fluorescence microscopy.
• High UV and visible radiation: suitable for UV curing processes and other demanding photonic applications.
• Intense point source: facilitates efficient coupling to light guides and precision optics.
• Arc stability: contributes to consistent and reproducible images in experimental series.
• Compact format: standardized dimensions and SFa sockets that simplify replacement in compatible lamphouses.

Use cases

• Fluorescence microscopy (biomedical research, materials, industrial inspection).
• UV curing of adhesives, coatings and resins.
• Fiber optic lighting and laboratory illuminators .
• Solar simulation and other scientific photonic applications.

Compatibility and replacement

The HBO 103 W/2 is used in numerous Olympus systems (AX/BH2/IMT/IX series), ZEISS (AXIO Imager, Observer, Examiner, Axioplan), and others. Always verify the lamphouse model and socket type (SFa9-2/SFa7.5-2) before purchasing.

Frequently Asked Questions

Does it work on AC? No. This lamp is designed for direct current (DC) .

How should I handle it? Wear gloves and goggles; do not touch the bulb. Let it cool before removing it.

Is UV radiation dangerous? Yes. It must be operated exclusively in specific enclosed housings , following the equipment manual.

What is the correct position? s90 , with the anode facing down, unless otherwise indicated by the equipment manufacturer.

Security and compliance

• Mandatory operation in closed housings due to high luminance, UV radiation and hot internal pressure.
• Contains mercury ; if broken, vapors may be released. Follow the manufacturer's safety procedures and local regulations.
• End-of-life management of discharge lamp waste .

Logistics data (individual unit)

• Packaging dimensions: 165 × 95 × 48 mm
• Packaging volume: 0.75 dm³
• Gross weight (including packaging): 91 g

Project description

OSRAM HBO 103 W/2 lamp, short arc mercury, 103 W, 17–25 V, 4.0–5.0 A, DC; flux 2,550 lm, 300 cd, 30 lm/W; LCL 43 mm; length 90 mm; diameter 10 mm; mounting length 82 mm; bases SFa9-2 (anode) and SFa7.5-2 (cathode); burn-in position s90; lifetime 300 h; weight 11 g.
