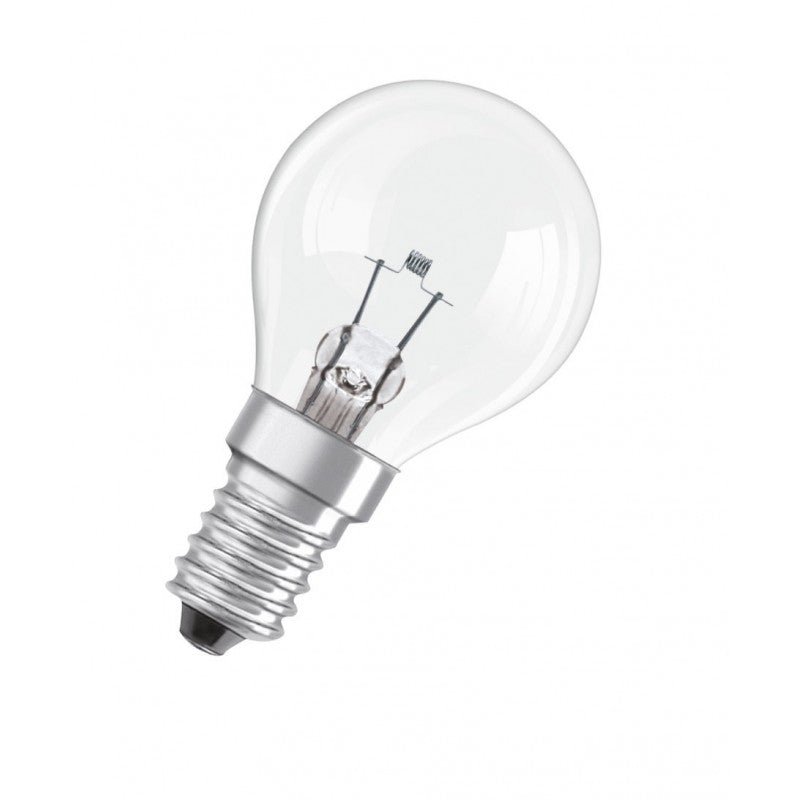

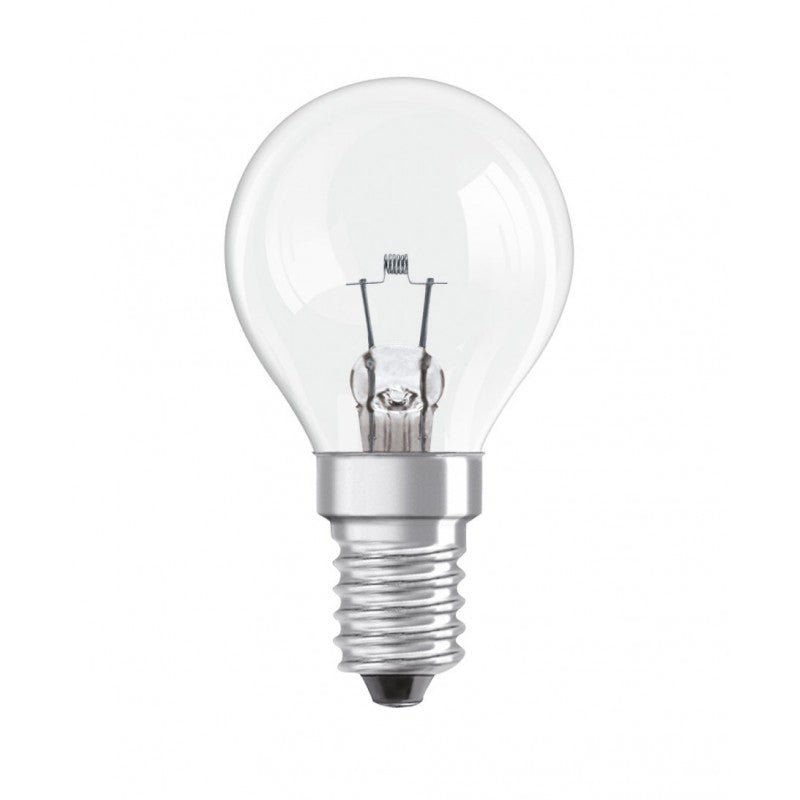

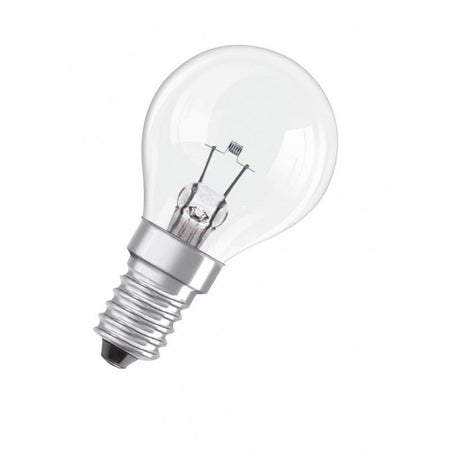

OSRAM 8100 - Low Voltage Incandescent Lamp 30W 6V (Halogen-Free), E14 Base for Projection and Scientific Use
The OSRAM 8100 is a low-voltage, halogen-free incandescent lamp designed for professional applications requiring stable light and instant start-up. With a power output of 30 W at 6 V AC and an E14 base , it offers a compact design ( Ø 35 mm , length 65 mm , LCL 35 mm ) for easy replacement in projection, microscopy, and fiber optic equipment. It features a nominal lifespan of 600 hours , a universal burn-in position , and, according to the current OSRAM datasheet, dimmability with compatible controllers. For safe operation, the clamping point can withstand temperatures up to 350 °C , making it suitable for enclosures with appropriate heat dissipation and ventilation. Thanks to its halogen-free construction, it is a simple and reliable solution as a film projector lamp and as a light source in scientific instrumentation.
Main features
-
Nominal power: 30 W
-
Nominal voltage: 6 V
-
Nominal current: 5 A
-
Current type: AC
-
Base (socket): E14 (Edison screw 14 mm)
-
Lamp dimensions: length 65 mm; diameter 35 mm
-
LCL (Light Center Length): 35mm
-
Nominal useful life: 600 h
-
Burning position: universal
-
Dimmable: Yes, with compatible equipment
-
Maximum temperature at pinching point: 350 ºC
-
Lamp weight: ~10 g
Product benefits
-
Instant start and stable flow: continuous lighting without warm-up times, ideal for projection and instrumentation.
-
Compact and standard format: E14 base and 35mm LCL for quick replacements on compatible equipment.
-
Versatile operation: universal burn position and regulation option with suitable 6V AC dimmers/transformers.
-
Thermal robustness: withstands up to 350°C at the clamping point, supporting housings with high temperatures.
-
Halogen-free: conventional incandescent technology, easy to integrate and maintain.
Use cases
-
Film projectors (e.g., 8mm/16mm) that specify 6V, 30W and E14 socket.
-
Microscopy and laboratory: sample illumination, epifluorescence with suitable filters or fiber optic systems.
-
Medical and dental lighting: overhead/auxiliary lamps on 6V compatible equipment.
-
UV curing and fiber optics: as a primary source in equipment that uses optics and light guides.
Frequently Asked Questions
-
Is it halogen? No. It's a halogen-free incandescent lamp.
-
Is it adjustable? Yes, the current version is marked as adjustable. Use regulators/transformers suitable for 6V AC and verify that the manufacturer's equipment allows it.
-
Is it suitable for DC? It is specified for alternating current (AC) . For DC, consult the equipment manufacturer.
-
How do I check compatibility with my projector? Verify that the device requires 6V, 30W, an E14 base, and a 35mm LCL output. If so, the 8100 is a typical reference.
-
Thermal recommendations? Ensure adequate ventilation and do not exceed 350°C at the pinch point to prolong service life.
Usage and safety recommendations
- Disconnect the equipment before replacing. Handle the bulb with clean gloves.
- Avoid vibrations and shocks; check seat E14 and the condition of the bulb holder.
- Keep the equipment's ventilation slots clear to manage temperature.
Project description
Low voltage halogen-free incandescent lamp, reference OSRAM 8100: 30 W, 6 V AC, 5 A, E14 base, length 65 mm, diameter 35 mm, LCL 35 mm, life 600 h, universal burn position, adjustable with compatible equipment, maximum temperature at pinch point 350 ºC.
