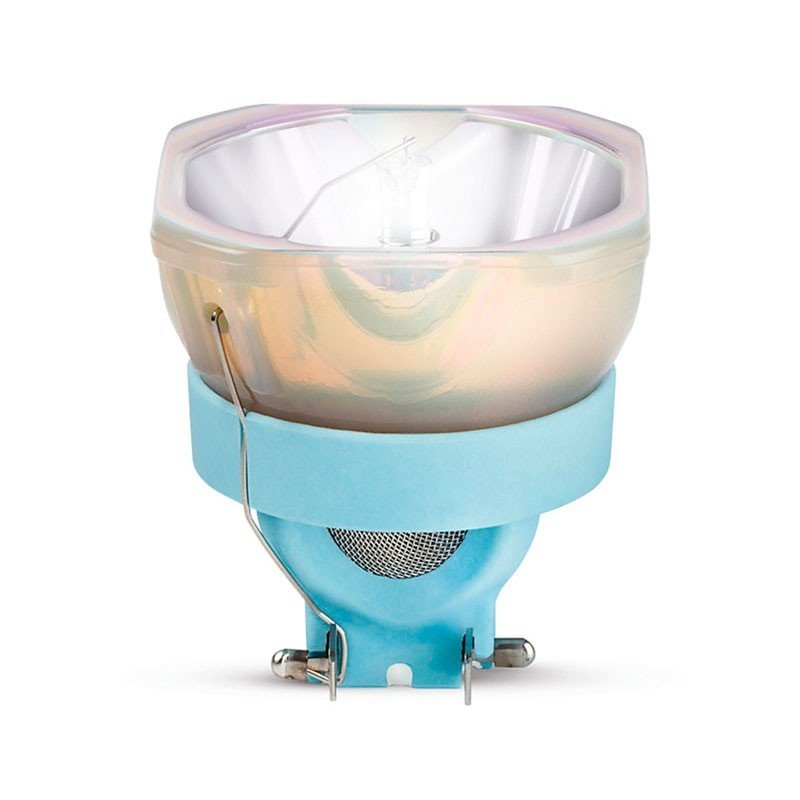

Philips MSD Platinum 21 R - 470W (8000K) Discharge Reflector Lamp for Entertainment
The Philips MSD Platinum 21 R is a discharge lamp with an integrated reflector designed for touring, stage, and event lighting, where an extremely intense beam is required in compact fixtures. Its ultra-short arc (≈1.2 mm) combined with a high color temperature of 8,000 K delivers 23,000 lm of luminous flux and outstanding punch for beams, spots, and hybrid fixtures. It is dimmable (depending on the fixture), supports universal working positions , and its compact design (≈ Ø 54 mm x 60 mm ) facilitates the creation of smaller and lighter moving heads. It has an average lifespan of 1,500 hours and weighs 110 g .
Main features
-
Power and color: 470 W · 8,000 K (cool daylight) for sharp effects and high contrast.
-
High intensity beam: 23,000 lm with arc ≈1.2 mm for maximum beam concentration.
-
Integrated reflector: greater useful output and quick alignment in the luminaire.
-
Flexible operation: adjustable (with compatible equipment) and universal position .
-
Compact format: typical dimensions Ø 54 mm × 60 mm ; ideal for lightweight fixtures.
-
Durability: average life 1,500 h .
Product benefits
-
More creativity in less space: power in a reduced format for compact luminaires.
-
Cool and consistent color: 8,000 K that enhances gobos and long-distance effects.
-
Easy maintenance: reflector design that speeds up replacement and optical adjustment.
-
Tour-ready: stable performance, attenuation option and weighs only 110g .
Use cases
-
Touring and festivals: defined beams and spots with great "punch" on large stages.
-
Theatres, TV and corporate events: high intensity effects in compact luminaires.
-
Fixed installations: clubs, auditoriums and venues seeking high visual impact with lightweight equipment.
Safety and recycling
The lamp contains mercury. In case of breakage, ventilate for 30 minutes, collect the fragments wearing gloves, place them in a sealed bag, and take them to an authorized recycling center . Do not use a vacuum cleaner. Always follow the manufacturer's instructions.
Project description
Philips MSD Platinum 21 R discharge reflector lamp, 470 W , 8,000 K , 23,000 lm flux , arc ≈1.2 mm , dimmable , universal position ; approximate dimensions Ø 54 mm × 60 mm ; average life 1,500 h ; weight 110 g .
