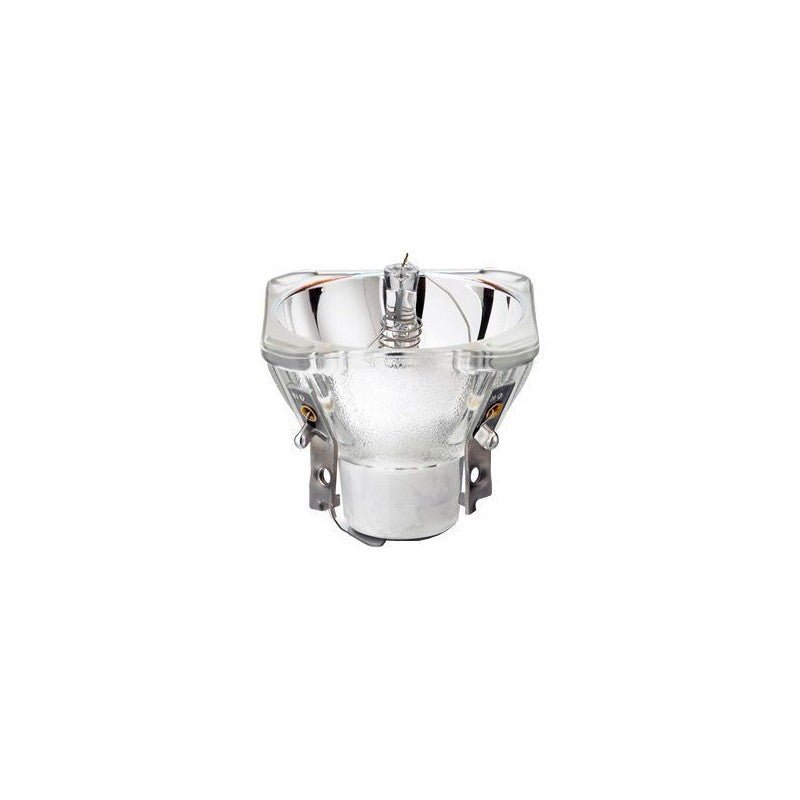

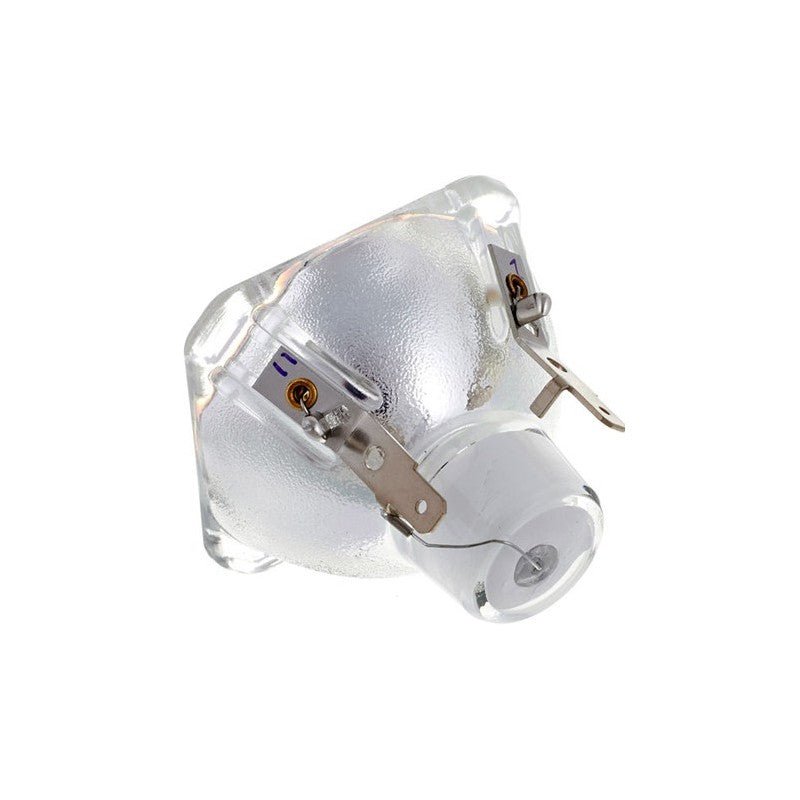

Philips MSD Platinum 2 R - 132W (8000K) Discharge Reflector Lamp for Entertainment
The Philips MSD Platinum 2 R is a discharge lamp with an integrated reflector designed for compact stage, club, and touring luminaires. Its combination of 132 W power, 8000 K color temperature , and 5150 lm luminous flux generates an extremely intense beam with high color rendering. It supports universal operating positions and is dimmable (depending on the fixture). Thanks to the E20.6 reflector system and very short arc , it delivers outstanding "punch" in compact beam/spot/hybrid luminaires. With a lifespan of 6000 hours and very compact dimensions ( Ø 46.5 mm × 57.1 mm ), it reduces replacement times and facilitates the design of lightweight, high-performance moving heads.
Main features
-
Output and color: 5,150 lm , 8,000 K with CRI 75 (family), ideal for high contrast effects.
-
Ultrashort arc: 1.2 mm for maximum beam concentration.
-
Power and control: 132 W ; adjustable with compatible electronics; universal position .
-
E20.6 Reflector: Compact system that simplifies alignment and retrofit on multiple fixtures.
-
Compact format: Ø 46.5 mm × length 57.1 mm ; T (reflector height) 13.5 mm .
-
Longevity: 6,000 h (F50) to reduce downtime and replacement costs.
Product benefits
-
More creativity in less space: power in a lightweight format for small luminaires.
-
Powerful and clean beam: short arc + 8,000 K for defined beams and gobos with great "punch".
-
Easy maintenance: integrated reflector and E20.6 system for quick replacements.
-
Overall system efficiency: high performance with lower consumption compared to traditional higher power solutions.
Common use cases and compatibilities
-
Clubs, festivals and traveling events with small-sized beam/spot moving heads.
- Documented models: ADJ Vizi Roller Beam 2R / Vizi Beam Hybrid 2R , Elation Rayzor Beam 2R / Sniper 2R , Acme AE-275B/AE-275R/AE-710 Beam , Terbly LS-2R/LBM-2R/VDH-2R , Triton Blue 2R Beam , among others.
Frequently Asked Questions
-
Is it dimmable? Yes, with compatible ballast/electronics for discharge lamps.
-
Can it be mounted in any position? Yes, universal position .
-
What is the service life? 6,000 hours (at 50% failure rate) under nominal conditions.
Safety and recycling
Contains mercury. In case of breakage, ventilate for 30 minutes, remove the fragments with gloves, place them in a sealed bag and take them to an authorized recycling point . Do not use a vacuum cleaner.
Project description
Philips MSD Platinum 2 R discharge reflector lamp, 132 W , 8,000 K , 5,150 lm flux , CRI 75 (family), 1.2 mm arc , dimmable , universal position ; E20.6 system; dimensions Ø 46.5 × 57.1 mm ( T 13.5 mm ); 6,000 h life; sales unit 1 piece (outer packaging 1CT/8).
