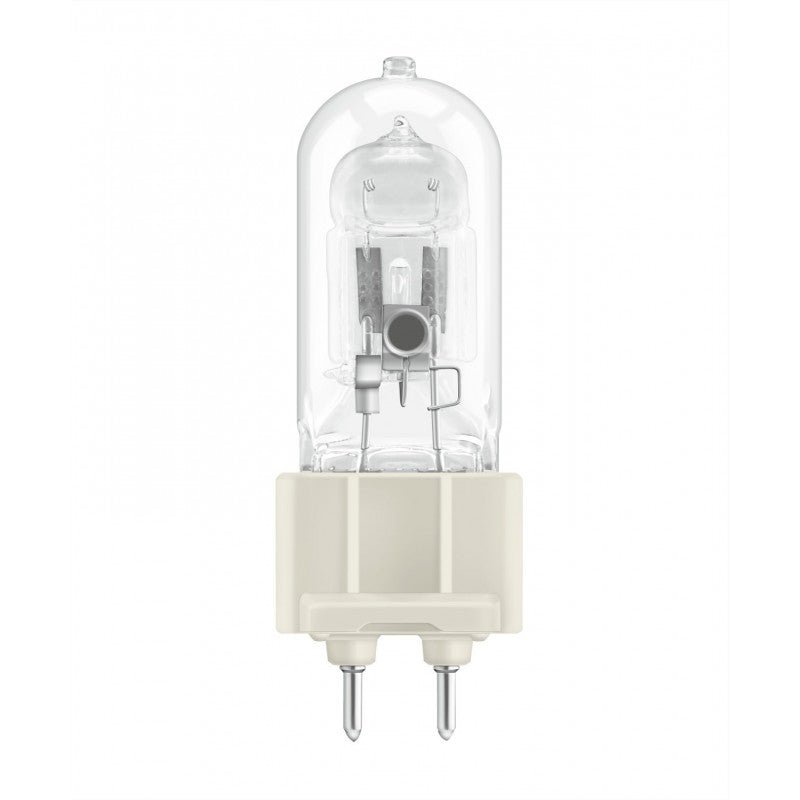

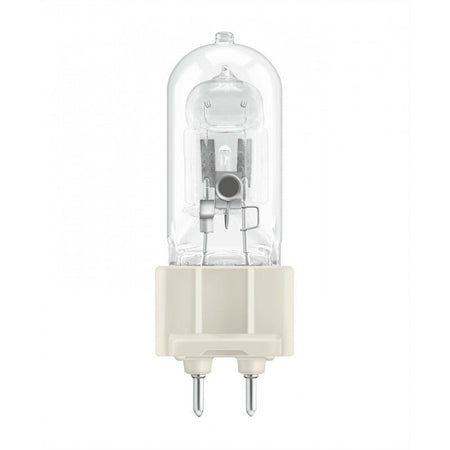

OSRAM POWERSTAR HQI-T 150 W/NDL UVS G12 - Metal halide lamp (quartz) neutral white 4,200 K with UV filter

OSRAM POWERSTAR HQI-T 150 W/NDL UVS G12 - Metal halide lamp (quartz) neutral white 4,200 K with UV filter

The OSRAM POWERSTAR HQI-T 150 W/NDL UVS is a quartz metal halide lamp designed for enclosed luminaires in retail, trade fair, industrial, and urban lighting applications . It offers high performance with 13,000 lm , a color temperature of 4,200 K (NDL 842) , and a CRI Ra 85 , providing neutral white light with good color rendering. It incorporates a UV filter (UVS) that keeps radiation levels well below IEC 61167 limits , protecting people, materials, and displays. It operates at 150 W , 105 V , and 1.8 A , with 3.6/5.0 kVp pulse ignition , and its operating position is universal (Any) . The G12 format and compact dimensions ( Ø 25 mm , length 84 mm , LCL 56 mm , 30 g ) facilitate integration and maintenance.

Main features

• Efficiency and light quality: up to 86 lm/W , 13,000 lm , 4,200 K and Ra 85 for an attractive neutral white in retail and exhibitions.
• Integrated UV filter (UVS): UV radiation significantly below IEC 61167 thresholds.
• Robust construction: POWERSTAR quartz bulb, universal burn position and operation with CCG+ignitor or ECG.
• Professional use: approved only for enclosed luminaires ; suitable for indoor and outdoor use in appropriate equipment.

Product benefits

• High energy efficiency of the system with stable light output throughout its average lifespan of 9,000 h .
• True color that enhances merchandise, signage and surfaces in commercial and exhibition environments.
• UV protection that reduces yellowing and deterioration of sensitive materials.
• Wide compatibility with conventional (CCG + ignitor) or electronic (ECG) 150W equipment.

Use cases

• Shopping malls and retail: corridors, shop windows, promotional islands.
• Exhibition halls and trade fairs: stands, showcases and demonstration areas.
• Factories and workshops: warehouses and work areas with neutral light requirements.
• Public space: pedestrian areas, squares, buildings, monuments and bridges (in luminaires suitable for outdoor use).

Frequently Asked Questions

• Is it dimmable? No, this lamp is not dimmable .
• Does it require an enclosed luminaire? Yes, it is approved only for use in enclosed luminaires .
• Can I use electronic equipment? Yes, it is compatible with ECG and also with CCG + ignitor (3.6/5.0 kVp pulse ignition).
• Does it support a hot restart? No.

Installation and safety

• Disconnect the power supply before handling. Do not use if the outer bulb is damaged.
• Respect the thermal limits of the luminaire: max. bulb 550 °C , rim of the socket 280 °C .
• This lamp contains mercury ; dispose of at the end of its life in accordance with current regulations.

Project description

OSRAM POWERSTAR HQI-T 150 W/NDL UVS metal halide lamp, G12 base; 150 W , 105 V , 1.8 A ; ignition 3.6/5.0 kVp ; 13,000 lm , 86 lm/W ; 4,200 K , Ra 85 ; LCL 56 mm ; dimensions Ø 25 mm × 84 mm ; 30 g ; UVS ; non-dimmable ; Any position ; operation with CCG+ignitor or ECG; average life 9,000 h .
