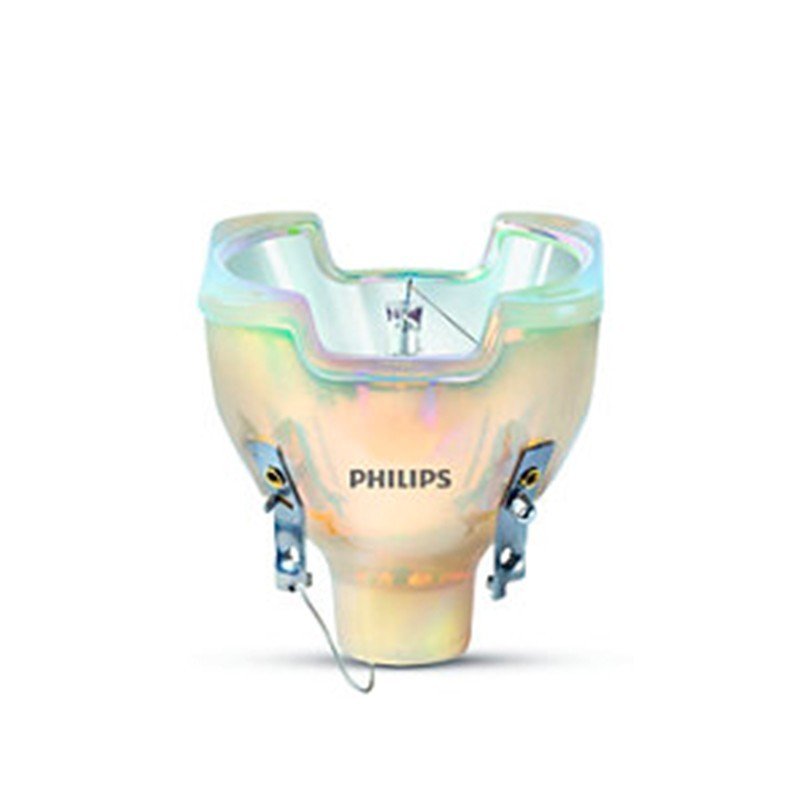

Philips MSD Silver 350W - E21.9 TCM reflector lamp (8,000 K, 15,700 lm) for stage lighting
The Philips MSD Silver 350W is a metal halide (HID) lamp with an integrated E21.9 TCM reflector that delivers bright, compact, and intense light for moving heads and effects projectors. Its very short arc and 8000K color temperature provide a powerful beam with clean color rendering, ideal for concerts, clubs, theater, and live events. In addition to its lightweight and compact design , the MSD Silver 350W is dimmable , operates in a universal position , and boasts a 1000-hour lifespan , simplifying maintenance and reducing replacement times.
Main features
-
Power/consumption: 350 W.
-
Optical system: Integrated E21.9 TCM reflector for maximum beam intensity.
-
Luminous flux: 15,700 lm (minimum 14,100 lm).
-
Light color: 8,000 K (color code 2); chromaticity approx. x=0.299 , y=0.303 .
-
Operation: Universal (any position) and adjustable .
-
Durability: average life 1,000 h (at 50% failure rate).
-
Thermoresistance: max. lamp temperature 900 °C and clamping temperature 350 °C .
-
Reference dimensions: D max. 58.5 mm ; length C max. 66.4 mm .
-
Net weight: 0.101 kg .
-
Identification: Trade name MSD Silver 350W UNP/24 ; Order code 76773300 ; 12NC 928495605308 .
Product benefits
-
Powerful and defined beam: the short arc and the built-in reflector generate high intensity with great contrast in beams and gobos.
-
Creativity without extra weight: compact and lightweight format for smaller and more versatile luminaires.
-
Bright “daylight” look: 8,000 K that enhances cool colors on stage and on camera.
-
Fewer stops: reliable service life and quick replacement thanks to the integrated design.
Use cases
-
Beam/spot/wash moving heads in concerts, festivals and clubs.
-
Theater and corporate events that require a concentrated beam and stable cool color.
-
Rental facilities requiring high performance and agile maintenance.
Frequently Asked Questions
-
Is it adjustable? Yes, it supports level control with compatible HID equipment.
-
In what position can it work? In any orientation (universal position).
-
What does “E21.9 TCM” mean? It is the integrated reflector format that optimizes the beam and facilitates integration into compact luminaires.
-
Any safety recommendations? In case of breakage, ventilate for 30 minutes and remove the fragments with gloves in a sealed bag for recycling. Do not use a vacuum cleaner.
Project description
Philips MSD Silver 350W UNP/24 HID lamp, E21.9 TCM reflector , 350 W , 15,700 lm (min. 14,100 lm), 8,000 K (color code 2), dimmable , universal position , 1,000 h life ; dimensions: D 58.5 mm , C 66.4 mm ; maximum temperatures: lamp 900 °C , clamping 350 °C ; weight 0.101 kg ; identification: Order code 76773300 , 12NC 928495605308 .
