OSRAM 64670 T-18/T-25 (GCV) – Halogen Lamp 500 W 230 V GY9.5 for Fresnel and PC (3000 K, 11,000 lm)

OSRAM 64670 T-18/T-25 (GCV) – Halogen Lamp 500 W 230 V GY9.5 for Fresnel and PC (3000 K, 11,000 lm)

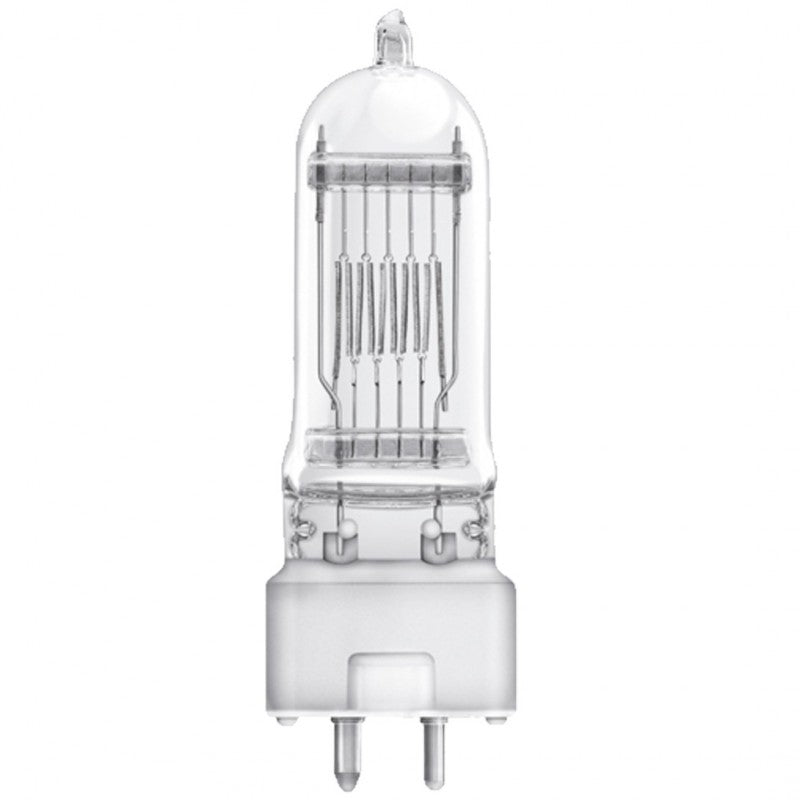

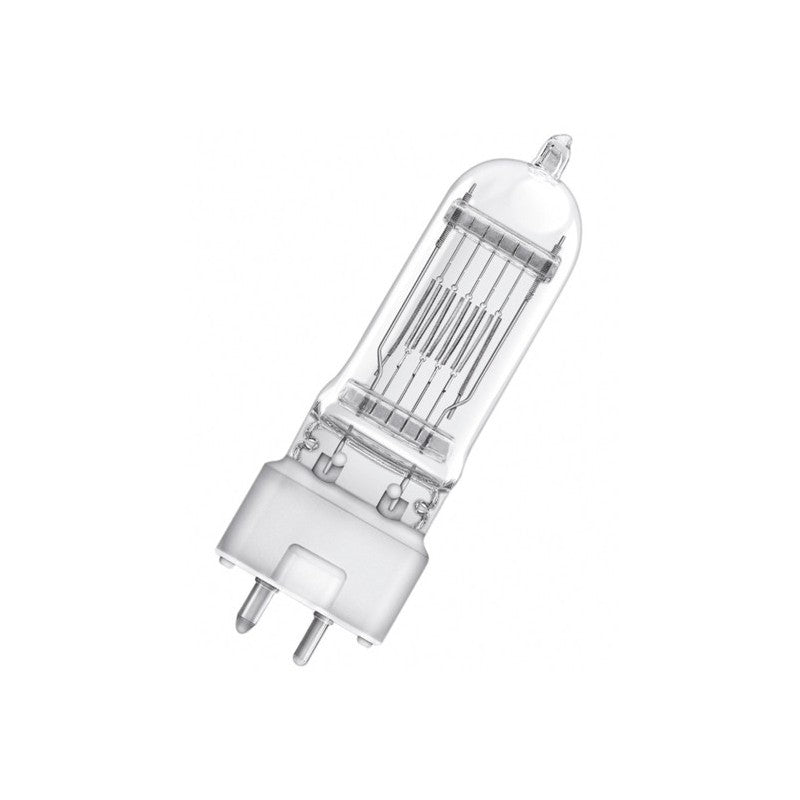

The OSRAM 64670 T-18/T-25 (ANSI GCV / LIF T/25) is a single-cap halogen lamp with a GY9.5 base, designed for Fresnel and PC projectors in theaters, film/TV studios, and rental companies. It offers 3000 K (warm tungsten light), a CRI Ra of 100 , and a nominal luminous flux of 11,000 lm ( Φuse 10,280 lm), ensuring impeccable color rendering and a uniform beam. It is dimmable with the characteristic amber shift , maintains consistent color throughout its lifespan, and features a robust construction for demanding professional use.

Its compact geometry ( Ø 23 mm , length 90 mm ) and the 46.5 mm LCL with an 11 × 11 mm illuminated field facilitate stable focusing in standard luminaires with a GY9.5 socket. The recommended working position is s90 , and the nominal life is 300 h under suitable operating conditions.

Main features

• Technology: Single-socket halogen lamp for entertainment and study
• Base / socket: GY9.5
• Power / voltage: 500 W / 230 V (AC)
• Luminous flux: 11,000 lm ( Φuse 10,280 lm)
• Light color and quality: 3000 K (CCT ~3034 K), CRI Ra 100
• Dimensions: Ø 23 mm; length 90mm; LCL 46.5mm
• Illuminated field of the filament: 11 × 11 mm
• Working position: s90
• Nominal lifespan: 300 h
• Regulation: Yes, with amber shift

Product benefits

• Color and reference color rendering (CRI 100) for cameras and the human eye.
• Homogeneous and stable beam thanks to the compact illuminated field and the standardized LCL.
• Robust construction for intensive service in theater and studio.
• Instant start and virtually constant flow throughout the life of the lamp.

Use cases

• Theatre and musicals : 500W Fresnel/PC spotlights for key, fill and soft cutouts.
• Television and film : stable continuous lighting with a warm tone.
• Events and rental : standard replacement in GY9.5 luminaires.

Frequently Asked Questions

• Is it compatible with studio dimmers? Yes, it supports dimming with phase-cut dimmers suitable for 230V/500W.
• What is the difference compared to the 3200 K versions (e.g., CP/82)? This reference offers 3000 K and 11,000 lm ; other 500 W/230 V lamps may prioritize 3200 K and higher luminous flux, depending on their design. Check the color temperature and performance settings required for your production.
• Thermal or orientation requirements? Operate in the s90 position and in suitable luminaires, with high-temperature resistant materials and wiring.

Installation and safety

• Unplug and let the light fixture cool before handling; do not touch the quartz with your fingers.
• Always use studio halogen light fixtures with shields that contain fragments and control UV radiation and heat.
• Check mechanical ( GY9.5 , LCL 46.5 mm , 90 × 23 mm ) and electrical (230 V / 500 W) compatibility.

Project description

OSRAM 64670 T-18/T-25 (GCV) halogen lamp; GY9.5 base; 500 W , 230 V (AC) ; 11,000 lm ( Φuse 10,280 lm); 3000 K (CCT ~3034 K), CRI Ra 100 ; LCL 46.5 mm ; field 11 × 11 mm ; Ø 23 mm , length 90 mm ; position s90 ; life 300 h ; dimmable ; areas of use: theatre, studio/TV, cinema, photography and club/disco.
