OSRAM 64610 HLX - Bi-pin halogen lamp 50W/12V (XENOPHOT, 3350 K, 50 h)

OSRAM 64610 HLX - Bi-pin halogen lamp 50W/12V (XENOPHOT, 3350 K, 50 h)

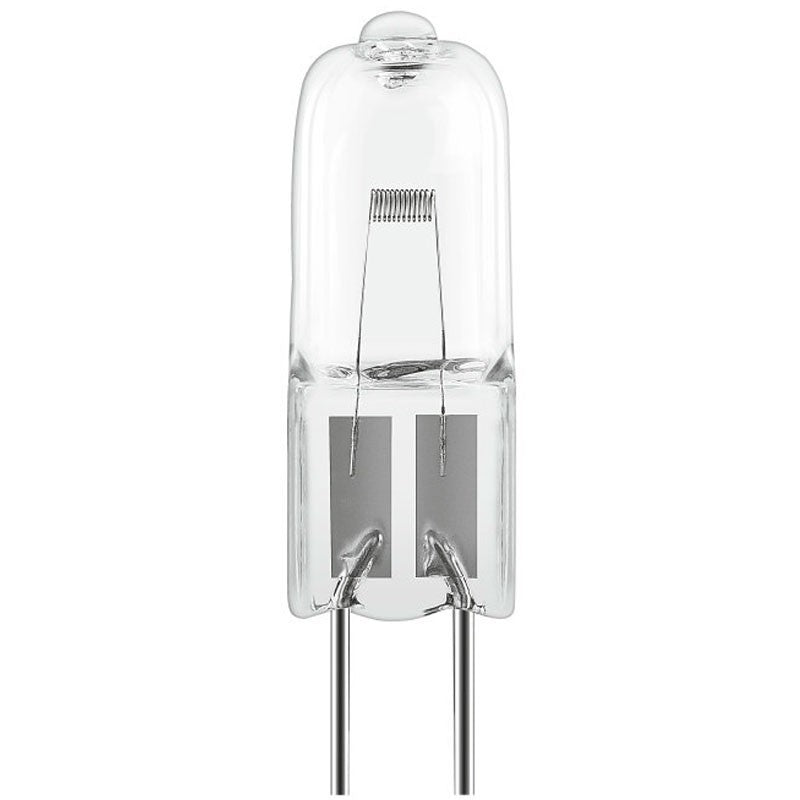

The OSRAM 64610 HLX is a reflectorless , low-voltage halogen lamp with a G6.35 base, designed for specialized luminaires and demanding optical systems. It belongs to the XENOPHOT HLX family, which uses xenon instead of krypton as a fill gas to deliver up to 10% more luminous flux while maintaining the same energy consumption as standard halogen lamps. At 50 W at 12 V , it provides 1,600 lm at 3,350 K ( CRI 100 ) and a nominal lifespan of 50 hours , making it ideal for medical fiber optics , microscopy, laboratory analysis, UV curing, and other professional equipment.

Its compact geometry (Ø 11.5 mm , length 44.0 mm ) and 30.0 mm LCL facilitate focusing in optical systems; the 3.3 × 1.6 mm illuminated field provides a concentrated and homogeneous beam. The lamp is dimmable and standardized as ANSI BRL and LIF A1/220 , simplifying replacement in fixtures that specify “ BRL 12V 50W ”. Burn-in position: s90 , suitable for operation within ±90° of the vertical when installed in compatible luminaires.

Main features

• XENOPHOT HLX Technology : xenon as a fill gas for +10% flow with the same power.
• Precise optics : LCL 30 mm and illuminated field 3.3 × 1.6 mm for efficient coupling to light guides and imaging systems.
• True color : 3,350 K with CRI 100 , ideal for inspection and medical/scientific applications.
• Mini format : capsule Ø 11.5 mm , 44.0 mm long ( G6.35 base ).
• Adjustable and instant start ; nominal lifespan 50 h .
• International standards : ANSI BRL , LIF A1/220 , reference OSRAM 64610 HLX .

Product benefits

• Greater luminous efficacy : up to 10% more light than a standard halogen of the same power.
• Consistent performance : stable flow throughout its lifespan and high-precision filament alignment for a uniform beam.
• Easy integration : standardized dimensions, G6.35 and 30mm LCL for direct replacement in a wide range of equipment.
• Total light control : smooth dimming to adjust intensity and apparent color temperature in the system.

Areas of application

• Special lighting fixtures and projection/optical equipment .
• Medical optical fibers , light sources for endoscopy and microscopy .
• Laboratory and analysis , UV curing and fiber optic lighting .

Installation and safety

• Use only in suitable luminaires , with protections (screens/grids) and high temperature signage.
• Respect the s90 burning position (±90° with respect to the vertical) indicated by the equipment manufacturer.
• Do not touch the bulb with your fingers; use gloves or a clean cloth to avoid contaminating the quartz.
• This version does not include a UV-Stop filter ; always use compatible optics/covers and follow the luminaire's safety instructions.

Frequently Asked Questions

Is it dimmable? Yes, the 64610 HLX is dimmable with compatible 12V equipment.

What is its service life? 50 nominal hours under specified conditions.

Can I replace a “BRL 12V 50W” lamp with this one? Yes. The 64610 HLX corresponds to ANSI BRL and LIF A1/220 ; always verify LCL 30 mm , G6.35 base , and burn-in position of the equipment.

Project description

Low voltage halogen lamp without reflector, OSRAM 64610 HLX ; 50 W ; 12 V ; G6.35 base ; 1,600 lm luminous flux ; 3,350 K color temperature ; CRI 100 ; LCL 30.0 mm ; Ø 11.5 mm ; length 44.0 mm ; illuminated field 3.3 × 1.6 mm ; lifespan 50 h ; burn-in position s90 ; dimmable ; ANSI codes BRL / LIF A1/220 .
