Philips TUV PL-L 18W/4P 2G11 - UV-C lamp for air and water disinfection (9,000 h, ozone-free)

Philips TUV PL-L 18W/4P 2G11 - UV-C lamp for air and water disinfection (9,000 h, ozone-free)

The Philips TUV PL-L 18W/4P is a germicidal UV-C (253.7 nm) lamp designed for disinfecting air, water, and surfaces in professional and residential systems. Its compact twin-tube ( 2 x T16 ) design with a 2G11 (4-pin) socket facilitates the design of smaller units and easy replacement . It maintains a virtually constant UV-C output throughout its lifespan , eliminating the need to oversize the system to ensure effective disinfection. Philips' special glass filters the 185 nm wavelength , preventing ozone generation , and the protective internal coating minimizes the depreciation of the effective light output. It is a proven choice for ducted air handling units , stand-alone purifiers , water purification and treatment , as well as for disinfecting chambers and surfaces in healthcare and industrial environments.

Main features

• Lamp power: 18 W
• Base / socket: 2G11 (4 pins)
• Germicidal spectrum: UV-C with peak at 253.7 nm
• UV-C radiation @100 h: 5 W (initial useful output)
• Useful life (nominal): 9,000 h
• Depreciation over useful life: 20% (with protective internal coating)
• Rated voltage/current: 58 V / 0.375 A
• Mercury content: 4.4 mg
• Geometry: 2×T16 (twin tube), single-ended design
• Safety: special glass that filters 185 nm (ozone-free); UV product of Risk Group 3

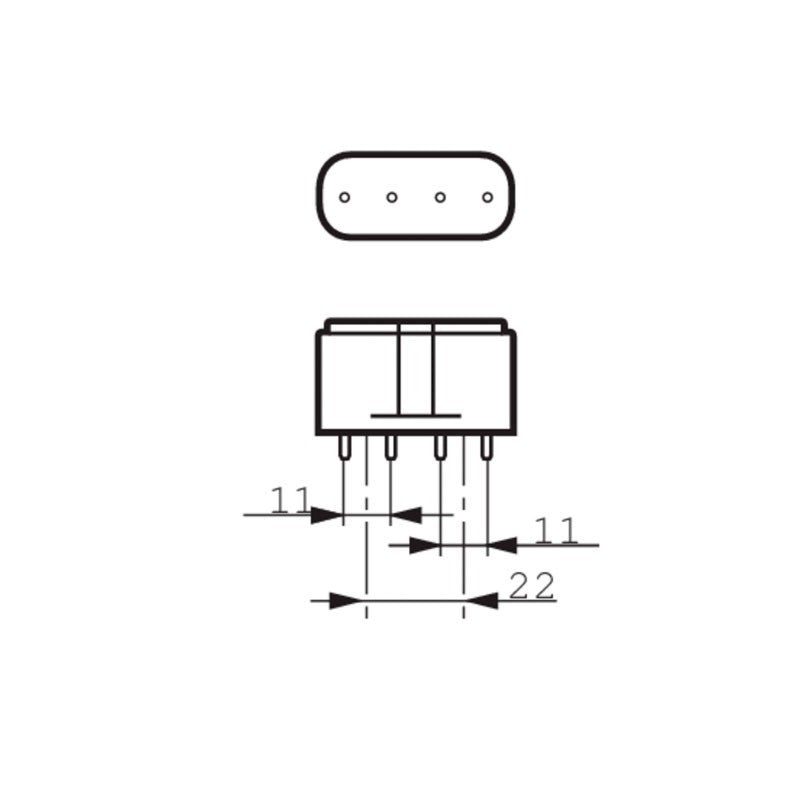

• Dimensions (max.): D1 18 mm; D 39 mm; A 195 mm; B 220 mm; C 225 mm

Product benefits

• Reliable disinfection throughout the entire lifespan: stable UV-C output that maintains system effectiveness without oversizing.
• Easy integration and maintenance: single-ended 2G11 base that speeds up replacement and reduces downtime.
• Safer system operation: no ozone generation thanks to 185 nm filtration.
• Compact design: allows for smaller equipment size and greater installation flexibility in air and water.

Recommended applications

• Air treatment: ducted units, stand-alone purifiers and recirculation in enclosed spaces.
• Water treatment: drinking water, aquaculture, ponds and industrial processes (depending on reactor and UV-C dose).
• Surfaces and chambers: cold storage rooms, laboratories, food and pharmaceutical industry.

Frequently Asked Questions

• Does it generate ozone? No. Philips' special glass filters out the 185 nm wavelength responsible for ozone formation.
• What equipment do you need? Requires compatible auxiliary equipment/driver for 4-pin PL-L germicidal lamps (electronic).
• When should I replace it? Although the nominal life is 9,000 h, to maintain the UV-C dose some manufacturers recommend preventive replacement before the end of life in critical applications.
• Is it suitable for viewing or directly irradiating people? No. It is a high-risk UV-C product: use only in enclosed equipment that prevents exposure.

Safety and usage recommendations

• UV-C protection: avoid all skin and eye exposure. Use the lamp only in enclosed or UV-shielded equipment.
• Handling and end of life: In case of breakage, ventilate for 30 minutes and manage waste according to local regulations.
• Dimensional compatibility: Check the dimensions (up to 225 mm total length) and the 2G11 base on your equipment.

Project description

Philips TUV PL-L 18W/4P germicidal lamp, 2G11 base (4 pins), 18 W , 58 V , 0.375 A ; UV-C 253.7 nm ; radiation @100 h: 5 W ; life 9,000 h ; depreciation 20% ; Hg 4.4 mg ; geometry 2×T16 ; max. dimensions: D1 18 mm , D 39 mm , A 195 mm , B 220 mm , C 225 mm ; filter glass 185 nm (ozone-free); use in air/water/surface disinfection.
