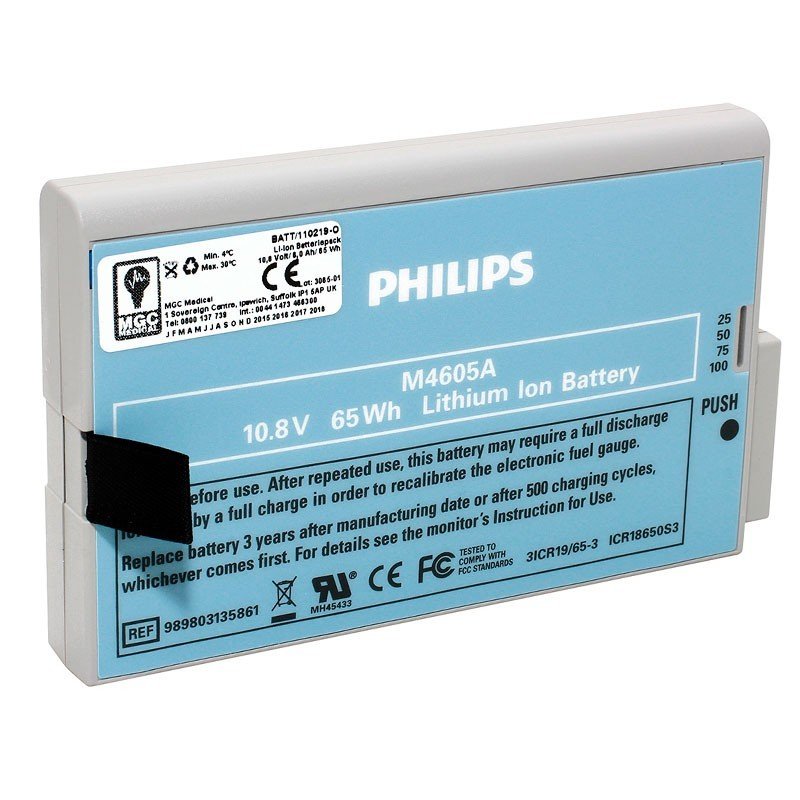

Philips M4605A - 10.8V 6Ah Li-ion Battery for IntelliVue Monitors (MP20/MP30/MP40/MP50 and MX400)
The Philips M4605A is the original lithium-ion (Li-ion) battery designed to reliably power Philips IntelliVue MP and MX series monitors. With a nominal voltage of 10.8 V and a capacity of 6 Ah (≈ 65 Wh ), it offers stable runtime and precise charge status readings via intelligent electronics (fuel gauge). Its slim and robust design ( ≈ 149 × 89 × 20 mm , ≈ 0.45 kg ) allows for quick, tool-free battery changes on the shop floor and maintains the equipment's center of gravity, which is crucial for carts and mobile stands.
Main features
-
Certified compatibility with IntelliVue MP20, MP30, MP40, MP50 and MX400 monitors (and other variants of the IntelliVue family depending on the equipment version).
-
10.8 V – 6 Ah (≈ 65 Wh ): balance between autonomy and weight for continuous clinical use.
-
Li-ion technology with internal charge/discharge management and fuel gauge for reliable level indication.
-
Slim format for quick insertion: approx. 149 × 89 × 19.7–20 mm ; typical weight 0.45–0.48 kg .
-

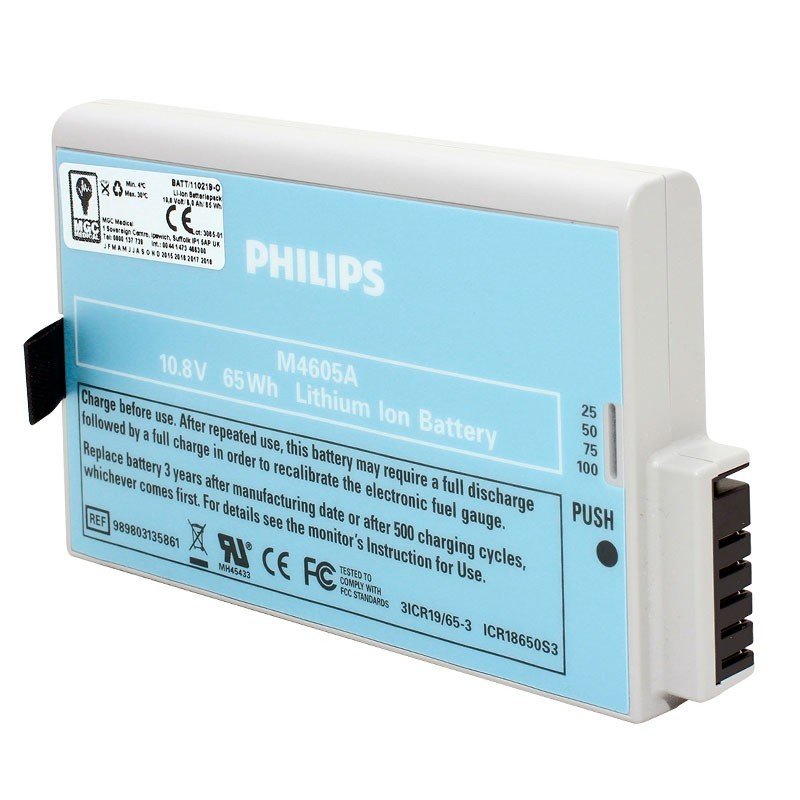

Smart battery multipin connector (5 contacts) for communication with the monitor.
Benefits for the healthcare environment
-
Continuity of care: high energy density Li-ion chemistry for extended shifts with predictable loads.
-
Efficient management: internal electronics that improve the accuracy of the battery percentage and facilitate the rotation of packs.
-
Easy exchange: “ slide-in ” design and robust housing for quick changes in the operating room, ICU or emergency room.
-
Fleet compatibility: one format for multiple references. IntelliVue reduces stock and downtime.
Compatibility (verified)
IntelliVue Series: MP20 / MP30 / MP40 / MP50 and MX400 . Implementations exist in other IntelliVue models (e.g., MP5, MP70, Avalon FM20/FM30) depending on the device version and firmware; check the device manual/IFU before expanding its use.
Usage and safety recommendations
- Use only Philips or compatible batteries and chargers validated by technical service.
- Maintain a regular charging schedule and avoid deep discharges to maximize service life.
- Do not open, strike, puncture, or expose the battery to heat. Recycle according to local regulations (Li-ion).
Project description
Philips M4605A battery for IntelliVue monitors, Li-ion , 10.8 V , 6 Ah (≈ 65 Wh ), 5-pin smart connector; dimensions approx. 149 × 89 × 20 mm ; weight approx. 0.45 kg ; compatible with MP20/MP30/MP40/MP50 and MX400 .
