JBL PROFESSIONAL

JBL Professional VLA-C2100 - 2-Way Loudspeaker with 2 x 10" Differential Drive®, 100° Horizontal Coverage (IP55)

Out of stock
SKU: VLA-C2100 EAN13: 691991010361
(0)
10.712,96 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

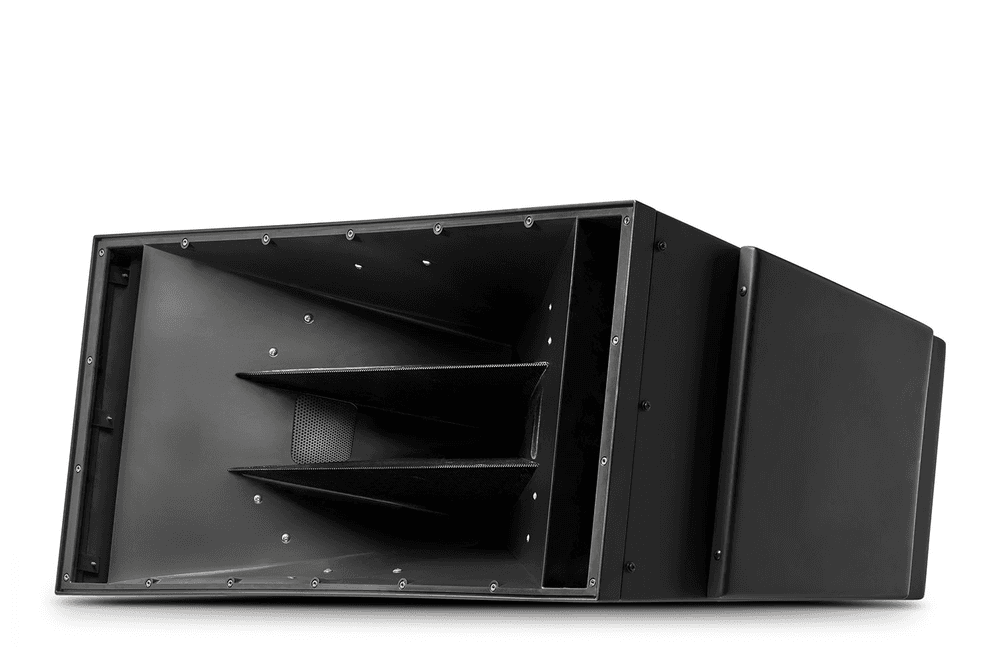

The VLA-C2100 utilizes proven JBL technology components. The high-frequency section is horn-loaded for maximum sensitivity and optimal pattern control and features three D2415 drivers with 1.5” annular diaphragms, 1.5” voice coils, and neodymium motors. The low-frequency section utilizes two 10” 2261 Differential Drive® drivers with 3” voice coils. The enclosures feature multi-layer reinforced fiberglass and steel end panels. The grilles are 14-gauge, zinc-plated, and powder-coated perforated steel with an acoustically transparent black grille fabric backing, a hydrophobic mesh overlay, and a waterproof rail system. The rigging system is inherent to the system design. Angles between enclosures are selected when mounting the array. Other accessories include a rigging frame, a retaining bar, and a cardioid subwoofer kit. Features: Compact line array module optimized for permanent installation applications. Advanced technology component? Transducers for low weight and high performance? IP55-rated outer enclosure for? protection against dust and water? Complete mounting points to create a? line array configuration? Weather-resistant, fiberglass enclosure construction.? components? Can be bi-amped for maximum SPL, or? passively powered to reduce amplification costs? 100° horizontal coverage pattern
  • Brand:JBL Professional
  • Model:VLA-C2100
  • Guy:2-way full-range speaker for line array (fixed installation)
  • Horizontal coverage (−6 dB):100° (+5°/−15°, 1.5 kHz–15 kHz)
  • LF Transducers:2 × 10" JBL 2261, dual coil 76 mm (3"), Neodymium Differential Drive®, Direct Cooled™
  • HF Transducers:3 × JBL 2415K (D2, double diaphragm/dual voice coil 38 mm, output 21 mm)
  • Mode of operation:Passive (full-range) or Bi-amplified
  • Frequency range (−10 dB):86 Hz – 18 kHz
  • Frequency response (±3 dB):109 Hz – 15.3 kHz
  • Sensitivity (2.83 V/1 m):Full-range 102 dB; Bi-amp LF 100 dB (85–950 Hz); Bi-amp HF 107 dB (950 Hz–19.2 kHz)
  • Maximum SPL (1 m):131 dB continuous (2 h) / 137 dB peak
  • IEC power rating (pink noise):Full-range 800 W cont. (3200 W peak, 2 h) / 400 W cont. (1600 W peak, 100 h); Bi-amp LF 800/3200 W (2 h) and 400/1600 W (100 h); Bi-amp HF 150/600 W (2 h) and 50/200 W (100 h)
  • Max input voltage:Full-range 80 VRMS (160 V peak); Bi-amp LF 80 VRMS (160 V peak); Bi-amp HF 50 VRMS (135 V peak)
  • Nominal impedance:Full-range 8 Ω (min. 6.7 Ω @ 200 Hz); Bi-amp LF 8 Ω (min. 6.9 Ω @ 230 Hz); Bi-amp HF 16 Ω (min. 15.9 Ω @ 1.1 kHz)
  • Enclosure material:Fiberglass shell with finishgel coatand internal reinforcement of 18 mm birch plywood
  • Grille and protection:14-gauge zinc-coated perforated steel, acoustic fabric, and hydrophobic mesh; classificationIP55(IEC 529)
  • Terminals:Shrouded barrier terminals (up to 5.2 mm² / 10 AWG), capstouch-proof
  • Inter-box angles (C2100↔C2100):2.4°, 3.8°, 6.0°, 9.5°, 15°
  • Combination with VLA-C265:1.9°, 3.0° (plate C2100) and 4.7°, 7.5°, 11.9° (plate C265)
  • With sub VLA-C125S (C2100 below):0°, 7.5°
  • Colors:Black (-BK) and Gray (-GR, similar Pantone 420C)
  • Dimensions (H × W × D):381 × 848 × 460 mm
  • Net weight:37.7 kg
  • Included accessories:2 ×bracket plates, 8 × M10 × 35 mm screws (stainless steel), 2 × trim caps
  • Optional accessories: VLA-C-SB Suspension Bar Kit(upper/lower bars and shackles),pull-back bar, cardioid sub kit VLA-C125S
  • Recommended amplification:Crown DCi Series with DSP (e.g. DCi 2|1250N, DCi 4|1250N/ND/DA, DCi 2|2400N, DCi 4|2400N)
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU VLA-C2100
  • Bar-code 691991010361
