Electro-Voice ND76 - Cardioid dynamic vocal microphone with suspended capsule, humbucking coil, and Memraflex grille

Electro-Voice ND76 - Cardioid dynamic vocal microphone with suspended capsule, humbucking coil, and Memraflex grille

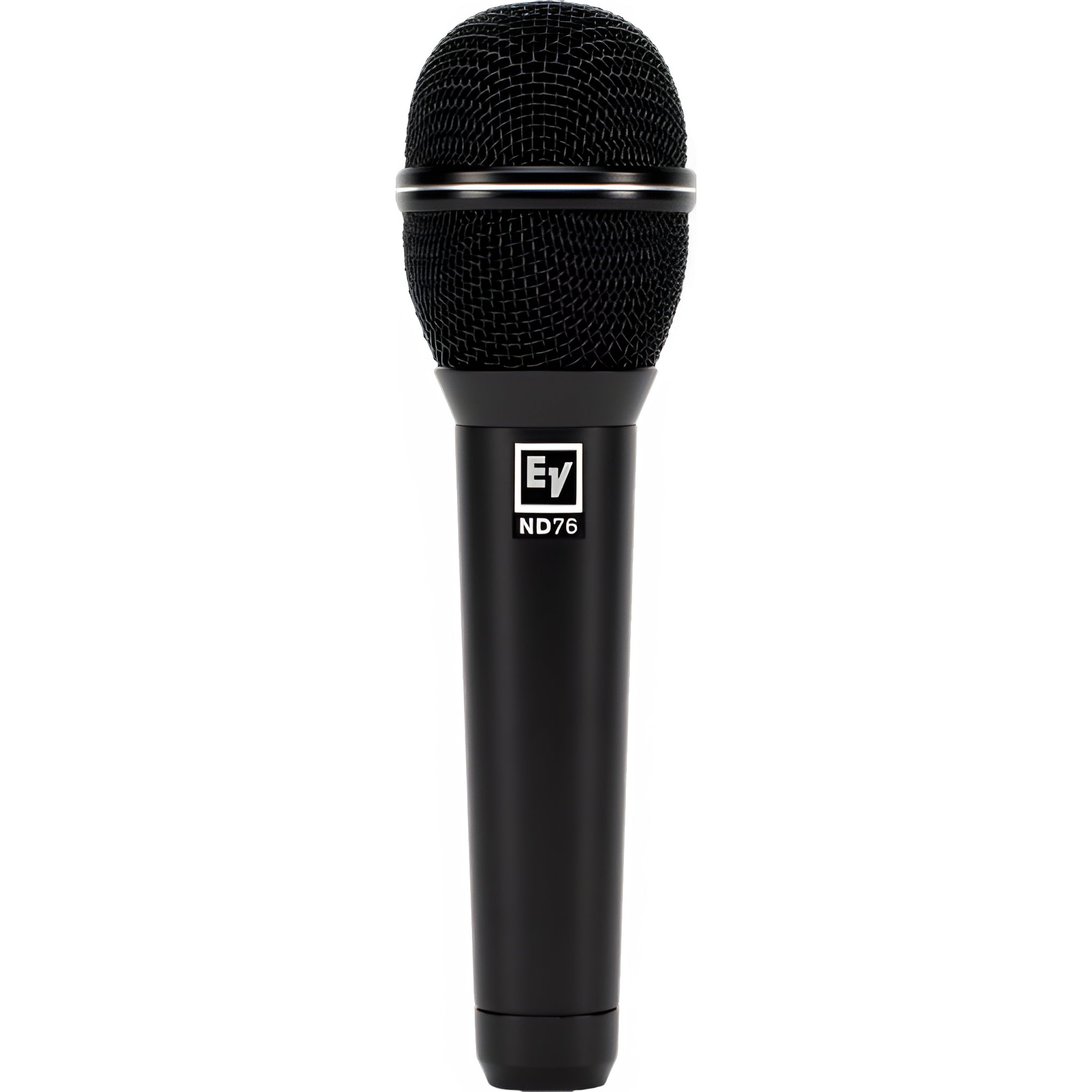

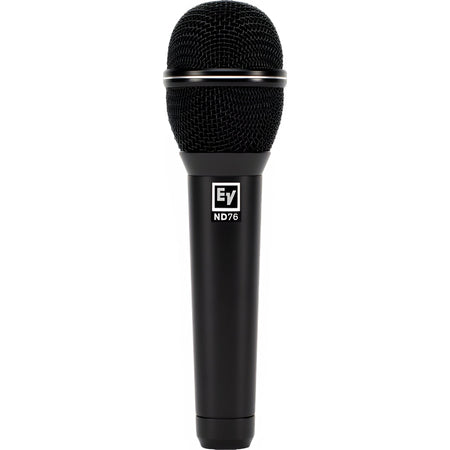

The Electro-Voice ND76 is a large-diaphragm cardioid dynamic handheld microphone designed to be a true workhorse for all types of live vocals. Its finely tuned capsule delivers a crisp, clear, and balanced vocal presence with high isolation from the rest of the stage. It features an internal capsule suspension to minimize handling noise, a humbucking coil to reduce EMI buzz, and the renowned Memraflex dense-mesh, dent-resistant grille . Additionally, a hydrophobic membrane protects the diaphragm from moisture and particulate matter, ensuring reliability tour after tour. With a 70 Hz–17 kHz response (close mode extended to 30 Hz ), 2.4 mV/Pa , 350 Ω , and the ability to handle >140 dB SPL , the ND76 delivers a defined, controlled tone without the need for aggressive EQ.

Main features

• Large dynamic diaphragm tuned for voice: clear and balanced vocal presence.
• Cardioid pattern : Excellent side and rear rejection for greater gain before feedback.
• Suspended capsule : reduces rumble and shocks transmitted by the hand or microphone stand.
• Humbucking coil : attenuation of mains hum and electromagnetic interference.
• Memraflex Grating : Highly durable mesh that resists dents and maintains its shape.
• Hydrophobic protection in the capsule: barrier against moisture and dust.
• Heavy Duty Construction : Die-cast zinc body with black polyurethane finish.

Product benefits

• Present and controlled voice in dense mixes, with less need for drastic corrections.
• Less problems in live performance : less feedback, less hum and less handling noise.
• Rental/Backline Reliability : Metal chassis and dent-resistant grille prepared for intensive use.
• Universal Compatibility : Low impedance balanced output and standard XLR connector.

Use cases

• Solo singers and choirs in small and medium-sized venues and places of worship.
• Corporate and educational events with multiple speakers.
• Live sound companies that need a versatile and durable vocal microphone.

Frequently Asked Questions

• Is it dynamic or condenser? Dynamic ; it doesn't require phantom power.
• Does it include accessories? Yes: foot clamp , thread adapter , and bag .
• Is there a version with a switch? Yes, the ND76S model adds a nearly silent on/off switch.

Description for projects

Electro-Voice ND76 cardioid dynamic vocal microphone; response 70 Hz–17 kHz (closed response 30–17 kHz ); open-circuit voltage 2.4 mV/Pa (1 kHz); impedance 350 Ω (low-Z, balanced); max. SPL >140 dB ; suspended capsule ; humbucking coil ; Memraflex grille; protective hydrophobic membrane ; 3-pin XLR connector; die-cast zinc body with black finish; dimensions 182.5 × Ø 50.5 mm ; weight 323 g (shipping weight ≈598 g ).
