JBL AWC62 Compact 2-Way All-Weather Coaxial Speaker with 6.5" LF

In stock
SKU: AWC62 EAN13: 691991006012
(0)
833,27 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant speaker system that is ideal for voice and music reproduction in a wide variety of applications including sports venues, racetracks, stadiums, amusement parks, rodeos, skating rinks, themed entertainment venues, water parks, outdoor paging/background music systems, swimming pools, and a wide variety of other outdoor or indoor venues.Features? Highly weather-resistant IP56 rating.? Consistent control of the 110° x 110° wideband pattern.? Components:? 165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil.? 25 mm (1 in) exit compression driver? Extraordinary clarity for speech, with extended frequency response for music.? Advanced high-slope crossover network for consistent coverage and a smooth, natural midrange.? 175 Watts of power handling (average continuous pink noise) with high sensitivity provides high SPL capability.? High power passive crossover network.? Overload protection.? 70 Hz – 18 kHz frequency response.? 120 Watts 70V/100V multi-tap (built-in transformer) or 8” low impedance direct.
  • Marca: JBL Professional
  • Modelo: AWC62
  • Tipo de sistema: Altavoz coaxial compacto de 2 vías para todo clima
  • Rango de Frecuencia (-10 dB): 70 Hz – 18 kHz
  • Respuesta de Frecuencia (±3 dB): 100 Hz – 15 kHz
  • Cobertura Nominal: 110° x 110°
  • Factor de Directividad (Q): 8.0 (promedio de 500 Hz - 16 kHz)
  • Índice de Directividad (DI): 9.0 dB (promedio de 500 Hz - 16 kHz)
  • Potencia (Ruido Rosa Continuo): 175 W (700 W pico), 100 horas
  • Sensibilidad (2.83V @ 1m): 92 dB SPL
  • SPL Máximo: 114 dB (120 dB pico)
  • Impedancia Nominal: 8 ohmios

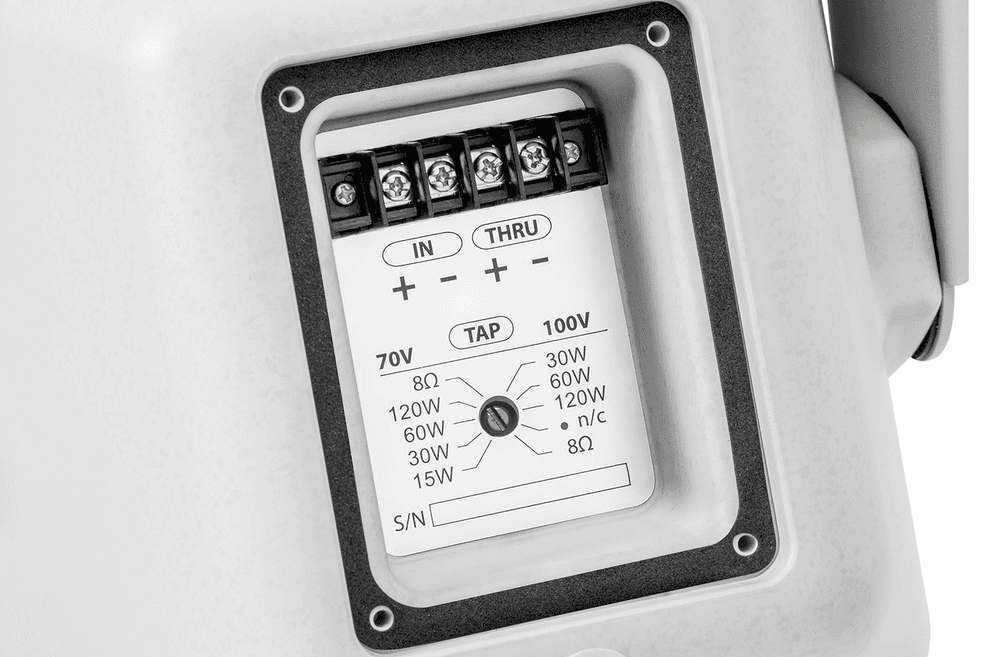

  • Taps del Transformador (70V): 120W, 60W, 30W
  • Taps del Transformador (100V): 120W, 60W
  • Componente de Baja Frecuencia (LF): Woofer de 165 mm (6.5 in) con cono reforzado de Kevlar y bobina de voz de 38 mm (1.5 in)
  • Componente de Alta Frecuencia (HF): Driver de compresión de salida de 25 mm (1 in)
  • Clasificación de Protección: IP56 según IEC529
  • Material del Recinto: ABS con relleno de vidrio, alta resistencia a los rayos UV
  • Rejilla: Acero inoxidable 316 con revestimiento de polvo de poliéster y espuma acústicamente transparente
  • Terminales de entrada: Cable multinúcleo con tuercas para prensaestopas
  • Montaje: Soporte en U de acero inoxidable 316 incluido
  • Dimensiones (Al x An x Pr): 253 x 253 x 257 mm
  • Peso Neto: 7.5 kg
  • Peso de Envío: 9.3 kg
