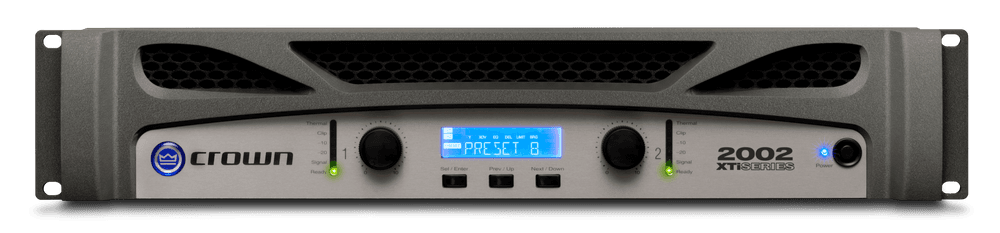

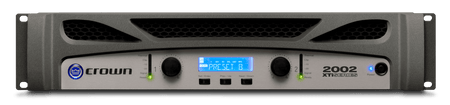

CROWN XTi 2002 - Two-channel amplifier, 800W @ 4Ω

CROWN XTi 2002 – Two-channel amplifier, 800 W @ 4 Ω

The CROWN XTi 2002 belongs to the XTi 2 Series, considered a reference for its combination of high power , advanced protection and detailed control . Each of its two channels delivers 800 W continuous at 4 Ω and can handle 2 Ω, 8 Ω and bridged loads with up to 2000 W at 4 Ω, while maintaining a clean signal thanks to the Peakx Plus™ limiters and the integrated subharmonic synthesizer. Its proportional fans, remote monitoring and robust chassis with die-cast handles make it ideal for touring and professional environments.

Main features

• Output Power: Dual 1000W @ 2Ω; 800W @ 4Ω; 475W @ 8Ω; mono bridge 2000 W @ 4 Ω; 1600W @ 8Ω
• Peakx Plus™ Limiters: Full control of threshold, attack and release for maximum system protection
• Enhanced Subharmonic Synthesizer: Frequency, gain, and filter type adjustments to optimize bass for your application
• Fan modes: three user options (normal, early, maximum) to adapt cooling and noise level
• Remote monitoring: visibility of line voltage and source temperature via HiQnet™ System Architect
• Handles and Clip: Integrated cast aluminum handles and cable locking clip for secure handling and connection
• HiQnet™ Software: System Architect with up to 50 presets (49 user-definable) and PC diagnostics
• Chassis: 2 U rack, proportional front-to-back ventilation, weight 8.4 kg

Product benefits

• Generous headroom: dynamic headroom for distortion-free peaks.
• Intelligent protection: Peakx Plus™ and Subharmonic Synth preserve your speakers.
• Adaptive settings: customizable ventilation modes and DSP based on the application.
• Centralized control: remote monitoring and adjustment via HiQnet™.
• Touring Durability: Rugged chassis with integrated handles and secure cable clip.

Use cases

• PA reinforcement for tours, concerts, and performance venues.
• Fixed systems in auditoriums, theaters and large corporate venues.
• DJ and club installations requiring high power and continuous reliability.

Frequently Asked Questions

• How do I activate bridge mode? Select “Bridge” on the DSP or HiQnet™ to combine channels.
• Can I adjust the limiters? Yes; adjust the threshold, attack, and release from the front panel or in software.
• What monitoring does it offer? It displays AC voltage and source temperature in real time.

Description for projects

2U rack amplifier, 2 × 800 W @ 4 Ω (1000 W @ 2 Ω; 475 W @ 8 Ω; mono bridge 2000 W @ 4 Ω / 1600 W @ 8 Ω), Peakx Plus™, subharmonic Synth, proportional ventilation, HiQnet™ System Architect, cast handles, cable clip, 483×89×311 mm, 8.4kg.
