BSS BLU-103 - Conference processor with AEC and VoIP

Out of stock
SKU: BLU-103 EAN13: 691991010477
(0)
5.134,30 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The Soundweb London BLU-103 offers a fixed configuration of 8 analog inputs and 8 analog outputs, a Voice over IP (VoIP) interface, configurable signal processing, AEC processing, and a high-bandwidth, fault-tolerant digital audio bus. Features: 8 analog inputs (with 48V phantom power per channel) 8 analog outputs VoIP port Configurable signal processing 8 channels of AEC processing with automatic gain control and noise cancellation Rich palette of logic and processing objects 48-channel, low-latency, fault-tolerant digital audio bus Clear front-panel LED indication Two-way paging functionality 12 control inputs and 6 logic outputs for GPIO integration Soundweb London Interface Kit for third-party control system integration (documentation) HiQnet Device HiQnet Audio Architect Configuration, Control, and Monitoring
  • Brand:BSS Audio
  • Model:BLU-103
  • Guy:Conference processor with AEC and VoIP
  • Analog inputs:8x mic/line, software gain in 6 dB steps up to +48 dB
  • Phantom power:48 V switchable per channel
  • Analog outputs:8× line
  • VoIP:1 port; up to2 SIP linesattendees
  • VoIP Codecs:G.711 µ/A-law, G.722, G.729AB, G.726 (fixed payload), DV14 HD and DV14 Narrowband
  • AEC:8 independent algorithms; 8 references;AGCandNoise Cancellationby channel
  • AEC Latency:49.69 ms (@48 kHz);tail length200 ms
  • Digital bus: BLU link48 channels (access to 1–48 of the ring256@48 kHz); Cat5e up to 100 m; fiber option >40 km
  • Converter latencies:A/D 0.77 ms (@48 kHz); D/A 0.60 ms (@48 kHz)
  • BLU link latency:0.23 ms per hop (@48 kHz); intermediate step 0.08 ms

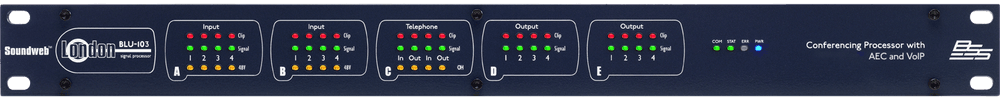

  • Front indicators:Signal, Clip, and 48V per input; COM/STAT/ERR states; button/functionLocate
  • GPIO:12× control inputs (2-wire/3-wire) and 6× logic outputs (0/+5 V, 10 mA source/60 mA sink)
  • Serial port:RS-232

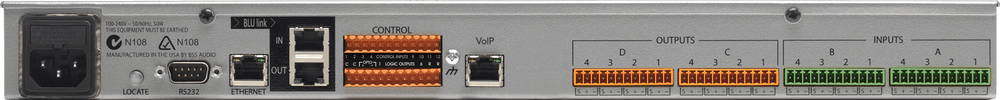

  • Audio connectivity:Removable Phoenix/Combicon (analog I/O)
  • Entry benefits:Input Z 3 kΩ; max. +20 dBu (0 dB gain); EIN < −125 dBu (150 Ω)
  • Exit benefits:Max. +19 dBu; THD < 0.01% (20 Hz–20 kHz @ +10 dBu); typical dynamic range 108 dB (unweighted)
  • Control network:RJ45 Ethernet; max. length 100 m; up to 60 nodes
  • Chassis:19”/1U (45 × 483 × 318 mm)
  • Weight:4.1 kg
  • Feeding:100–240 VAC, 50/60 Hz; consumption < 55 VA; <188 BTU/hr
  • Operating temperature:5–35 °C
  • Software:HiQnet London Architect / Audio Architect; includesSoundweb London Interface Kit
  • Type Audio
  • Vendor BSS
  • SKU BLU-103
  • Bar-code 691991010477
