AKG

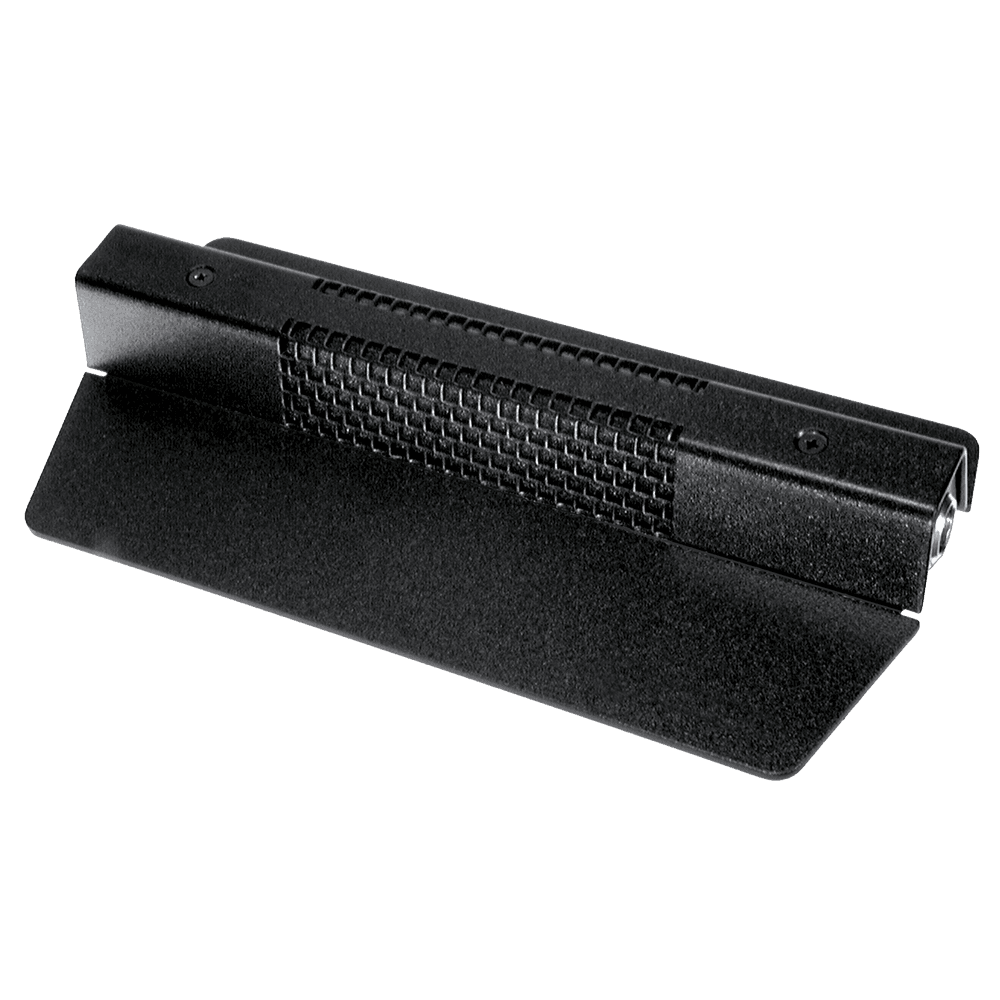

AKG PCC160 - Boundary Condenser Microphone with Cardioid Polar Pattern

Coming soon
SKU: PCC160 Barcode: 885038024897
(0)
Estimated availability: December 27, 2025
Pre-order 612,30 € inc. VAT

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Ask an expert

Chat Email +34 621046470
Supercardioid polar pattern Color: Black Switchable Bass Boost/Cut Rugged metal housing Frequency response: 50 - 18,000Hz Sensitivity: 22mV/Pa (-30dBV) Max SPL: 120dB 3-pin TQG connector Dimensions: 17 x 8 x 2cm Weight: 70g Includes 4.6m TQG/XLR cable and bag
  • Brand:AKG
  • Model:PCC160
  • Guy:Boundary layer microphone
  • Transducer:Electret condenser
  • Polar pattern:Supercardioid (half supercardioid on the surface)
  • Technology:PCC (Phase Coherent Cardioid)
  • Frequency response:50 – 18,000 Hz
  • Sensitivity:22 mV/Pa (-30 dBV)
  • Maximum sound pressure level (SPL):120 dB
  • Equivalent noise:22 dB-A
  • Signal-to-noise ratio:72 dB-A
  • Output impedance:150 Ω (balanced)
  • Recommended load:≥ 2,000 Ω
  • Feeding:Phantom 12 – 48 V

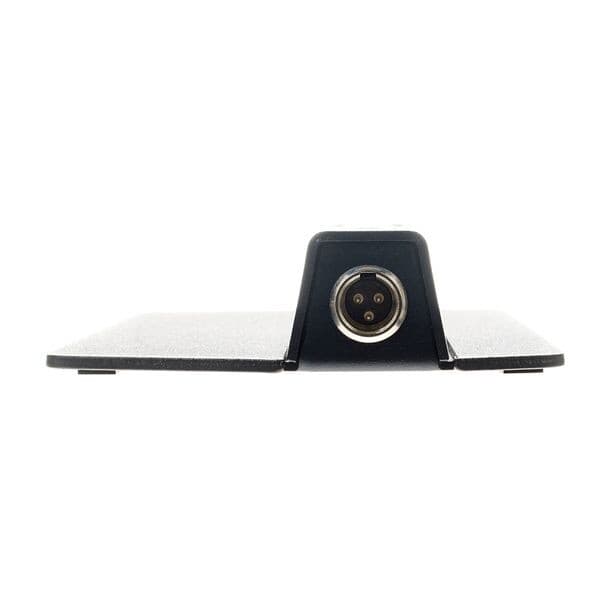

  • Microphone connector:3-pin Mini XLR (TA3F)
  • Cable included:TA3F (mini XLR 3 pin) to XLR male, 4.6 m
  • Bass switching:Bass Tilt with Flat / Cut / Boost positions
  • Housing:Steel, low profile
  • Color:Black
  • Dimensions (W x D x H):17 x 8 x 2 cm
  • Weight:170 g
  • Included accessories:Carrying bag
  • Recommended applications:Conferences, lecterns, theater and stages
  • Type Audio
  • Vendor AKG
  • SKU PCC160
  • Bar-code 885038024897

Buy AKG PCC160 - Boundary Condenser Microphone with Cardioid Polar Pattern
