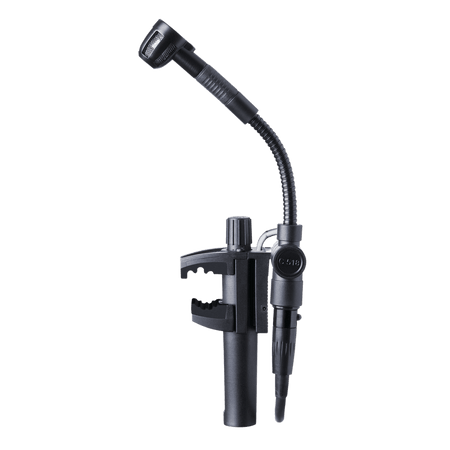

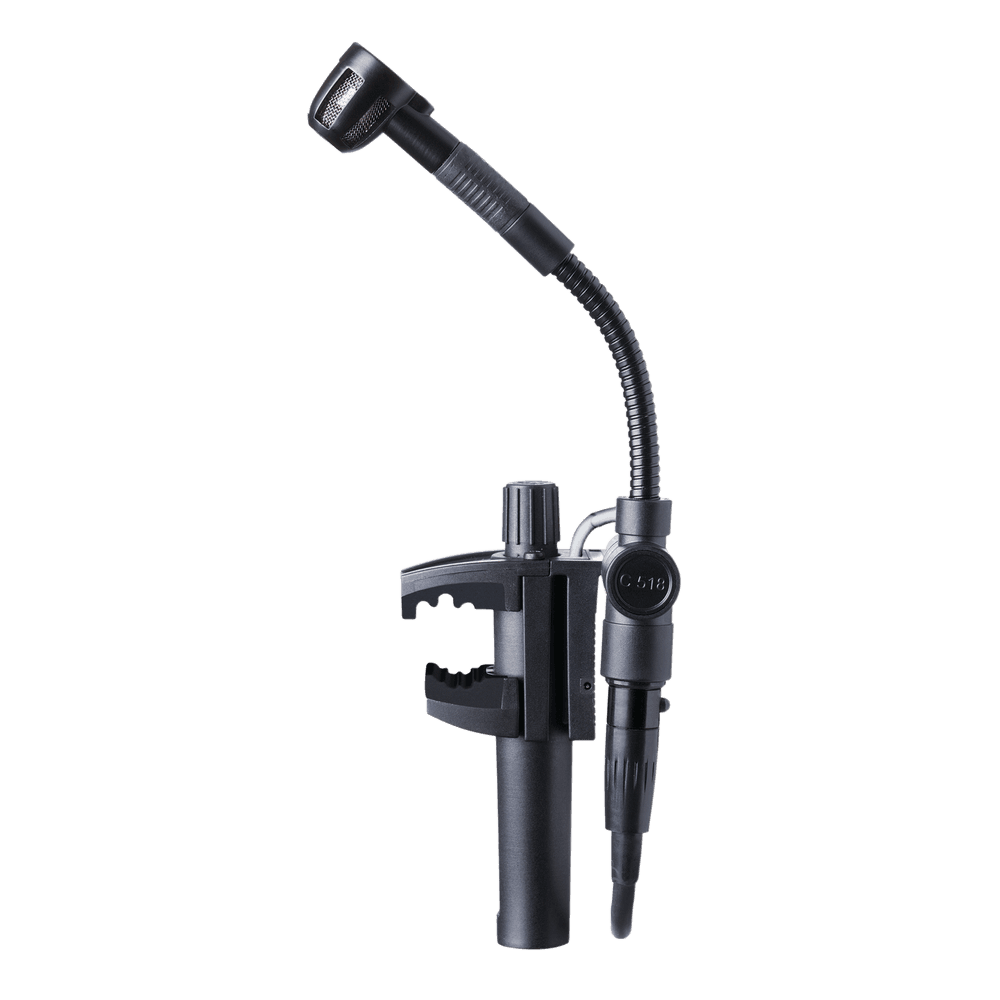

AKG C518M - Clip-on Condenser Microphone

AKG C518 M - Clip-on Condenser Microphone for Drums and Percussion (Cardioid, 60 Hz–20 kHz)

The AKG C518 M is a mini-clip condenser microphone designed for direct attachment to tom, snare, and percussion rims . Its cardioid capsule offers high rejection of side bleeds and high headroom, with a 60 Hz–20 kHz response tailored for drum-headed instruments. The screw-type clamp system continuously adjusts for a secure fit, while the 50 mm mini gooseneck and snap-on stabilizer allow precise capsule aiming and positioning even under intense impacts.

The M version includes the MPA V L phantom power adapter with XLR output and switchable low-pass filter (–4 dB at 100 Hz) for tailoring the response to your instrument. Supplied with a detachable 3 m cable (mini-XLR → XLR) and W44 windscreen . With a sensitivity of 5 mV/Pa , max. 130/132 dB SPL (1/3 % THD) and equivalent noise output of 31 dB(A) , the C518 M combines compactness, solid support and defined sound for both live and studio use. Operates on universal 9–52 V DC phantom power .

Main features

• Cardioid for high rejection of spills from other instruments and greater feedback control.
• 60–20,000 Hz response optimized for drums and percussion.
• Continuously adjustable screw clamp for secure attachment to the ring.
• 50mm mini gooseneck + stabilizer to maintain position during intensive use.
• MPA V L phantom adapter included, with XLR output and switchable low-cut filter (–4 dB @ 100 Hz).
• Detachable 3m cable (mini-XLR to XLR) for direct connection to a mixer or interface.
• Metal construction with elastic suspension that reduces mechanical noise.

Product benefits

• Clean and quick setup without additional supports – ideal for backline , rental and touring.
• Defined sound on toms and snare drum thanks to the cardioid + switchable filter combination that controls proximity and excessive bass.
• Stable Positioning : The mini neck and stabilizer maintain the angle even with strong impacts.
• Professional connectivity : Balanced XLR output with standard phantom power (9–52 V).

Use cases

• Toms, snare drum and percussion live and in the studio.
• Electronic and multi-percussion drums where quick and discreet assembly is required.
• Audiovisual production in settings with limited space for microphone stands.

Package contents

• AKG C518 microphone with 50mm mini-gooseneck and clip .
• MPA V L phantom adapter with switchable low-pass filter and 3-pin XLR output .
• 3m mini-XLR to XLR cable .
• W44 windscreen and case .
• Stabilizing piece to fix the neck position.

Frequently Asked Questions

• What's the difference between the C518 M and C518 ML? The C518 M includes an MPA V L with an XLR output and a switchable low-pass filter; the C518 ML terminates in a mini-XLR for use with AKG bodypacks and comes with the A400 plate for attaching the transmitter.
• Can I power it with a battery? Yes, using the optional B29 L power supply if a phantom power supply is not available.

Description for projects

AKG C518 M clip-on instrument microphone, pre-polarized cardioid condenser. 60–20,000 Hz ; sensitivity 5 mV/Pa (–46 dBV) ; max. SPL 130/132 dB (1/3 % THD); noise eq. 31 dB(A) ; Z output ≤ 200 Ω (recommended load ≥ 2 kΩ). Includes MPA V L (phantom 9–52 V DC ) with switchable –4 dB @ 100 Hz low-cut filter and 3 m mini-XLR → XLR cable . 50 mm mini-gooseneck, screw clamp and W44 windscreen.
