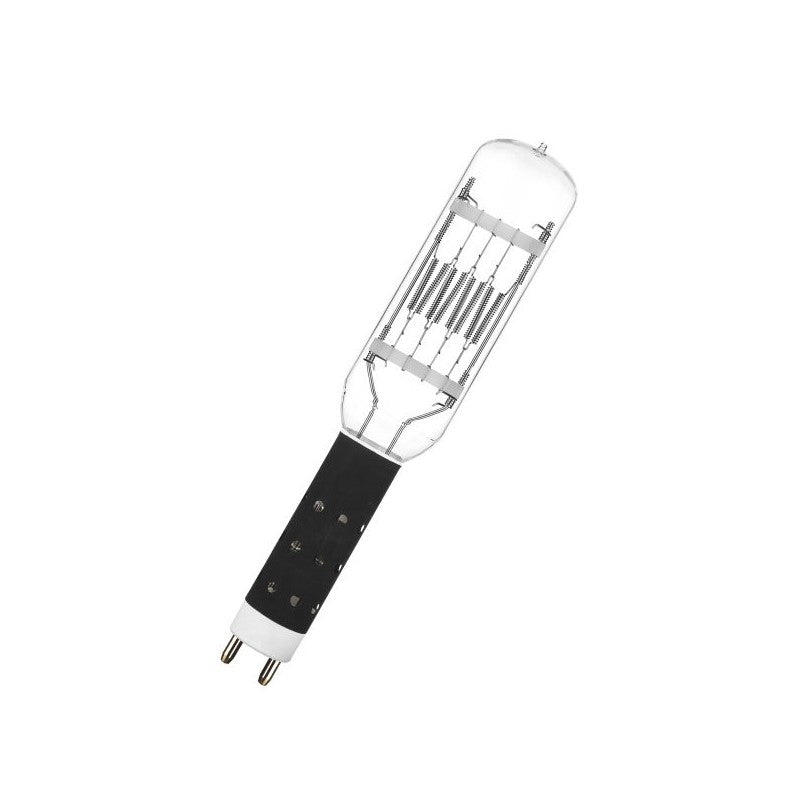

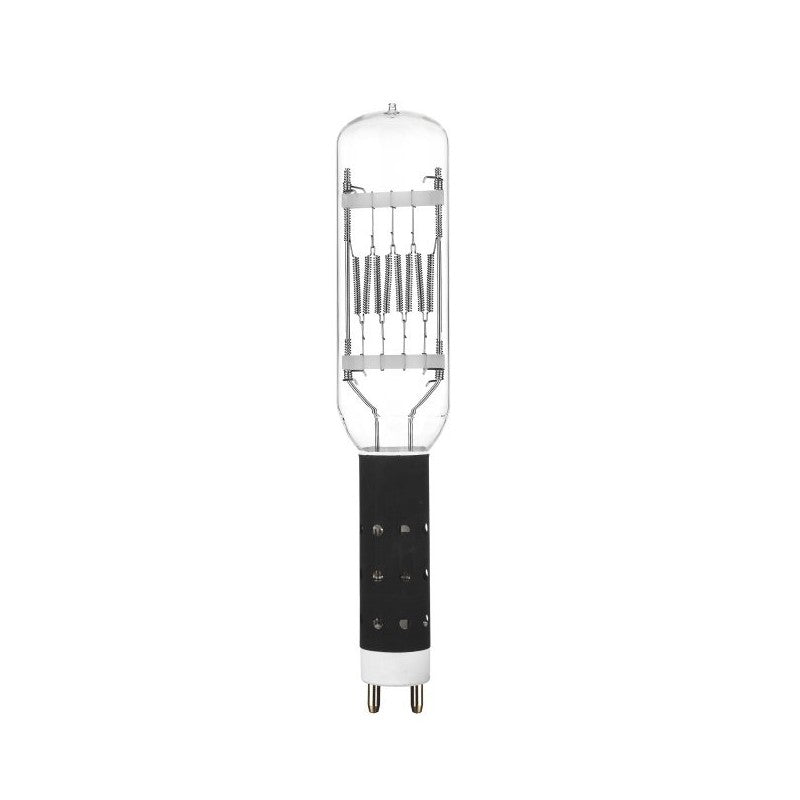

OSRAM - CP99 20000W G38 ​​Lamp (64818)

• OSRAM 64818 20,000W G38 ​​CP99 LAMP
• Halogen studio lamp, single socket.
• Operation on mains voltage: 120 V | 230 V | 240 V.
• Color temperature: 3,000K (with longer lifespan).
• Color temperature: 3,200 K (for professional film and TV work).

Areas of application

• Professional film and TV jobs
• Theater and concert hall stages
• Entertainment

Characteristics

Electrical data

• Nominal voltage: 230 V
• Nominal power: 20000.00 W

Photometric Data

• Nominal luminous flux: 570000 lm
• Color temperature: 3200 K

Dimensions and weight

• Diameter: 100.0 mm
• Length: 550.0 mm
• Long. Luminous center (LCL): 354.0 mm
• Illuminated field: 67.0*50.0 mm²
• Filament diameter: 50.0 mm

Shelf life (according to manufacturer)

• Duration: 350 h

Additional product data

• Cap (standard designation): G38
• Burning position: s 45
• Certificates & Standards: EEI – Energy label B

Country-specific categories

• ANSI Code: BCM
• LIF: CP/99
• OSRAM reference: 64818

Safety instructions

To prevent personal injury or property damage, halogen lamps may only be operated in suitable luminaires, designed with appropriate mechanisms (protective shields, double parabolic grilles, etc.) to ensure that no pieces or fragments can escape if the lamp explodes, and that ultraviolet radiation cannot escape during operation. Warning signs must also be posted to indicate that the lamps generate high levels of heat. Detailed information is available upon request.
