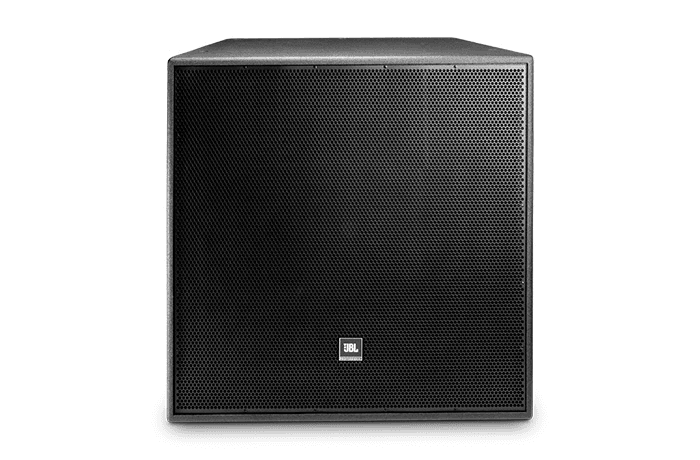

JBL Professional PD566 - 2-Way Full-Range Loudspeaker with 15" Horn and 60° × 60° Coverage

Out of stock
SKU: PD566
(0)
7.136,72 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The PD566 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. The PD566 can be used in music or speech systems where frequency extension down to 80 Hz is suitable, or combined with subwoofers to create extended-bandwidth full-range systems. Features: 380 mm (15″) horn-driven low-frequency driver. Oversized PT™ Progressive Transition™ waveguides provide 60° x 60° wideband pattern control, low distortion at high SPLs, and a smooth frequency response. Rotatable waveguide allows horizontal or vertical cabinet orientation. Sophisticated, steep-slope passive crossover network with switchable passive/bi-amp crossover modes.
  • Brand:JBL Professional
  • Model:PD566
  • Guy:2-way full-range speaker, horn-loaded
  • Nominal coverage pattern:60° × 60°
  • Frequency range (−10 dB):50 Hz – 20 kHz
  • Frequency response (±3 dB):90 Hz – 17 kHz
  • Modes of operation:Switchable passive/bi-amplified
  • Passive crossover frequency:1.3 kHz
  • System sensitivity (1 W/1 m):104 dB SPL
  • Maximum calculated SPL (1 m):Bi-amp LF 133 dB cont. / 139 dB peak · HF 133 dB cont. / 139 dB peak · Passive 131 dB cont. / 137 dB peak
  • Nominal impedance:8 Ω
  • LF Transducer:JBL 2031H, 380 mm (15"), 75 mm (3") coil, horn-loaded
  • HF Transducer:JBL 2432H, 38 mm (1.5") exit, 75 mm (3") voice coil, neodymium magnet, aluminum diaphragm

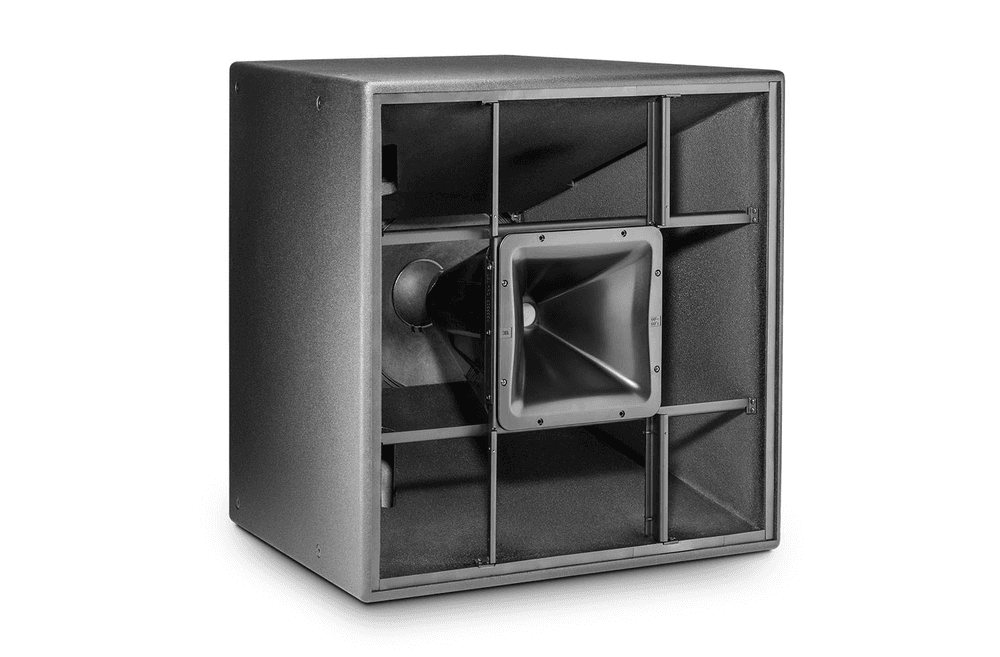

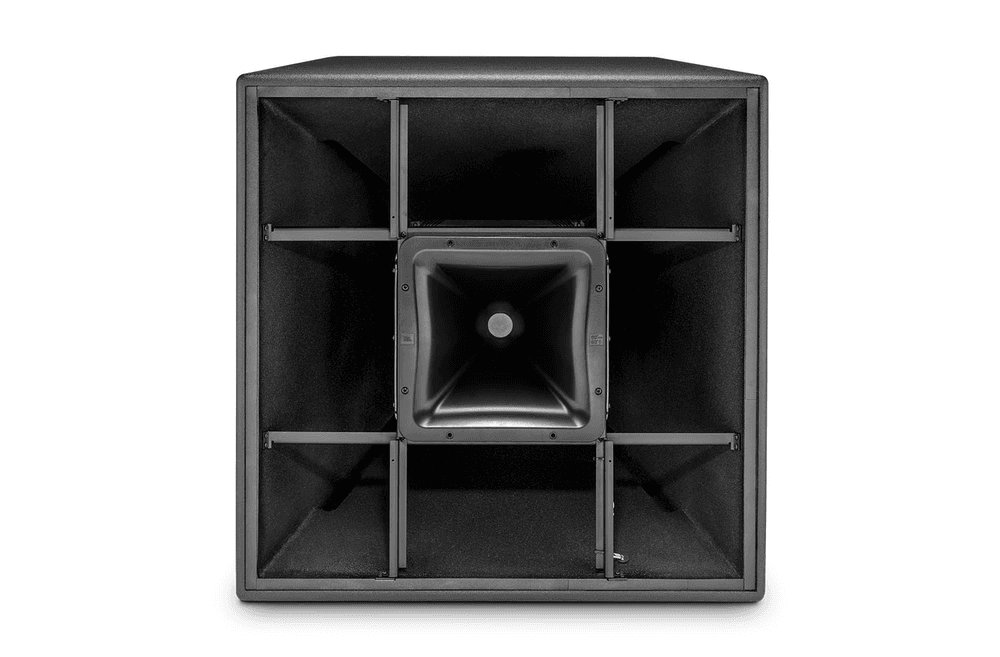

  • HF waveguide:PT-H66HF-1, 300 × 300 mm, rotatable
  • Directivity:Q 16 · DI 12 dB
  • Connectivity:CE covered terminal block (up to 5.2 mm² / blade 8 mm), with signal input
  • Suspension:20 M10 threaded points (5 top, 5 bottom, 4 per side, 2 rear)
  • Enclosure:Trapezoidal with 10° sides, 18 mm Finnish birch plywood (11 layers)
  • Finish:DuraFlex™ black; white version (-WH) on request
  • Rack:14-gauge powder-coated perforated steel with acoustic foam
  • Environmental specifications:IP55C (IEC 529); compliance with Mil-Std 810
  • Heavy duty versions:WRC (protected exterior) / WRX (direct exposure); dimensions may vary
  • Dimensions (H × W × D):782 × 783 × 670 mm
  • Net weight:69.0 kg
  • Optional accessories:Set of 3 forged eyebolts M10 × 35 mm (ref. 229-00009-01)
  • Available documentation:Specification sheet, PD500 user guide, CLF/GLL, CAD drawings and library ofpresetsDCi
