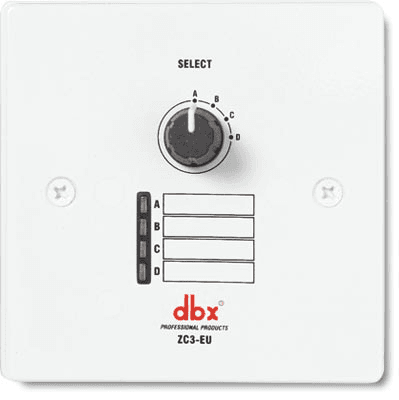

dbx ZC3-EU – Wall Mounted Zone Controller

In stock
SKU: ZC3-EU EAN13: 691991400834
(0)
123,38 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume, and muting, to program or scene selection and muting for fire safety. Connected with readily available and affordable CAT5 cable, with universally accepted RJ-45 connectors at distances up to 300 meters, ZC Zone Controllers offer simple yet elegant solutions for the contractor.
  • Brand:dbx
  • Model:ZC3-EU
  • Guy:Wall-mounted zone controller (programmable rotary selector)
  • Typical functions:Program selection (DriveRack 220i/260); source selection, paging, or scene selection (ZonePRO)
  • Compatibility:DriveRack 220i/260/4800/4820; ZonePRO 640/641/1260/1261 (includes “m” variants)
  • Connectivity:(2) RJ-45 to ZC bus (analog DC control; no audio transport)
  • Recommended cable:CAT5/CAT5e 24 AWG;DCR < 28.6 Ω/305 m; shirtVW-1or higher
  • Wiring topologies:Series or parallel (home-run with ZC-BOB)
  • Maximum distances:Series: 3 ZC ≤183 m; 6 ZC ≤91 m. Parallel (ZC-BOB): ≤305 mper branch (max. 6 ZC)
  • EU front format: 86 × 86 mm
  • Recessed depth:≈20.4 mm
  • Shipping weight:≈0.32 kg(0.7 lb)
  • Feeding:From the processor via ZC bus (analog CC)
  • Related accessories:ZC-BOB (parallel/home-run distribution)
  • Type Audio
  • Vendor DBX
  • SKU ZC3-EU
  • Bar-code 691991400834
