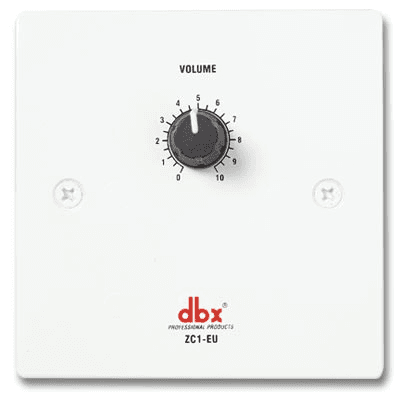

dbx ZC1-EU - Wall Mounted Zone Controller

In stock
SKU: ZC1-EU EAN13: 691991400810
(0)
111,06 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume, and muting, to program or scene selection and fire security muting. Wired with readily available and affordable CAT5 cable and universally accepted RJ-45 connectors at distances up to 1,000 feet, ZC Zone Controllers offer simple yet elegant solutions for the contractor.
  • Brand:dbx
  • Model:ZC1-EU
  • Guy:Wall-mounted zone controller (programmable volume)
  • Main function:Remote volume control (assignment to zone/input/output on the processor)
  • Compatibility:DriveRack 220i, 260, 4800/4820; ZonePRO 640/641/1260/1261 (and “m” variants); SC 32/64
  • Connectors:(2) RJ-45 for ZC bus
  • Cabling:CAT5/CAT5e, 24 AWG, DCR < 28.6 Ω/305 m, VW-1 jacket or higher
  • Topologies and distances:Series: 3 ZC ≤ 183 m, 6 ZC ≤ 91 m; Parallel (ZC-BOB): ≤ 305 m per branch (max. 6 ZC)
  • Feeding:From the ZC bus (no external source required)
  • Control technology:Analog DC signal (does not carry audio)
  • Format (EU front):86 × 86 mm
  • Recessed depth:≈ 20.4 mm
  • Shipping weight:≈ 0.32 kg
  • Related accessories:ZC-BOB (parallel/home-run distribution)
  • Type Audio
  • Vendor DBX
  • SKU ZC1-EU
  • Bar-code 691991400810
