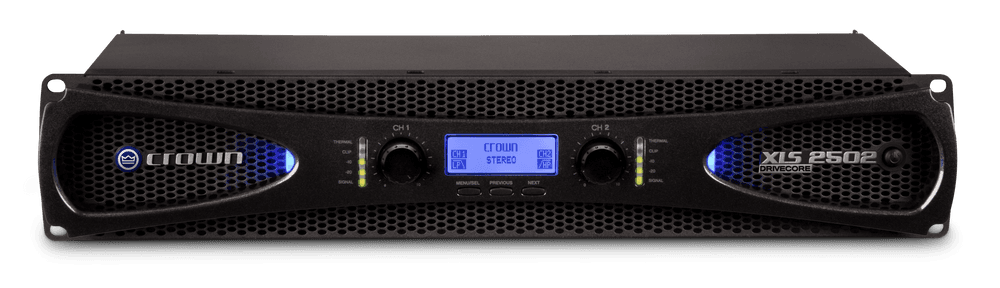

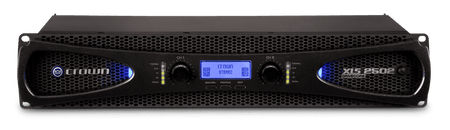

CROWN XLS 2502 - Two-channel power amplifier, 775W @ 4Ω

CROWN XLS 2502 – Two-channel power amplifier, 775 W @ 4 Ω

The CROWN XLS 2502 is the next-generation of the successful XLS DriveCore™ 2 series, introducing a slimmer design, triple-larger LCD display, and expanded DSP capabilities without sacrificing efficiency or lightness. At just 10.8 lbs (4.9 kg), it delivers 775 W per channel into 4 Ω (440 W @ 8 Ω, 1200 W @ 2 Ω), and up to 2400 W bridged into 4 Ω , delivering ample headroom and a perfectly clean signal thanks to its Class D amplification with DriveCore™.

Main features

• Continuous power: 775 W @ 4 Ω; 440W @ 8Ω; 1200W @ 2Ω; bridge: 2400 W @ 4 Ω; 1550W @ 8Ω
• Integrated DSP: High-Pass/Low-Pass and PureBand™ crossover filters; band-pass per channel; Peakx™ limiters; parametric EQs; delays
• Input Sensitivity: Selectable 1.4 Vrms or 0.775 Vrms for maximum power with any source
• Display and controls: Large LCD screen; menu with security lock; programmable sleep mode; configurable LED lighting

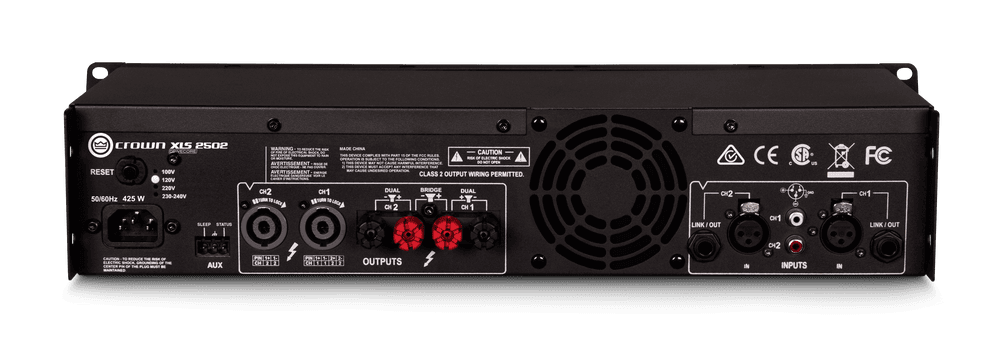

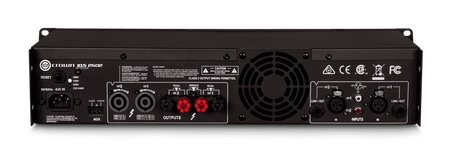

• Connectivity: XLR, ¼″ TRS and RCA inputs; Speakon™ and screw terminal outputs
• Cooling: Efficient forced fans; silent mode turns off LEDs except for clip/thermal for dark environments
• Lightweight: less than 11 lbs (4.9 kg) for easy transport and installation
• Rack: 2U; 19″ × 3.5″ × 10.7″ (48.3 × 8.9 × 27.2 cm)

Product benefits

• Exceptional Headroom: Generous power that keeps the signal free of distortion even at maximum.
• DSP Flexibility: PureBand™ and per-channel filters make it easy to adapt to any speaker system.
• Quiet operation: Configurable ventilation and LEDs reduce distractions in performance environments.
• Quick Setup: JBL presets, intuitive menus, and sensitivity options simplify setup.
• Mobility: reduced weight and compact chassis ideal for touring and rentals.

Use cases

• Portable PA systems for DJs, musicians, and mobile events.
• Fixed installations in clubs, pubs and multipurpose rooms with dark booths.
• Bridged subwoofer reinforcement for home theater or demanding bass performance.

Frequently Asked Questions

• How do I activate bridge mode? Using the DSP menu, select “Bridge” to combine both channels.
• Can I disable all LEDs? Yes; in the lighting menu, turn off the indicators except for the clip and thermal.
• What is the DSP latency? Less than 1 ms for internal processing.

Description for projects

2U rack amplifier, two channels of 775 W @ 4 Ω (440 W @ 8 Ω; 1200 W @ 2 Ω; bridges 2400 W/1550 W), Class D DriveCore™, DSP with PureBand™ crossover, Peakx™ filters and limiters, large LCD, XLR/TRS/RCA inputs, Speakon™ outputs/terminals, 48.3×8.9×27.2 cm, 4.9 kg.
