CROWN XLC 2500 - Two-channel power amplifier, 500W @ 4Ω

CROWN XLC 2500 – Two-channel power amplifier, 500 W @ 4 Ω

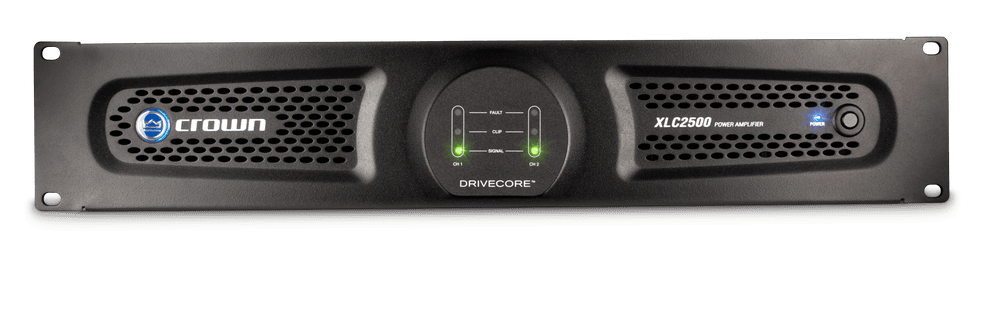

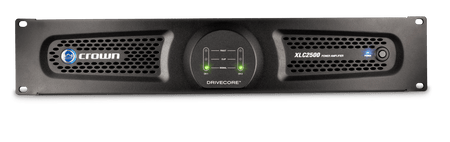

The CROWN XLC 2500 is a compact 1U rackmount amplifier delivering 500W per channel into 4Ω and up to 775W into 2Ω thanks to patented DriveCore™ technology, which integrates the drive stage into the power chip for efficiencies over 90% without sacrificing sound quality. Compatible with CXM2000 and DSi-8M monitoring systems, the XLC 2500 provides ease of installation, robust protections, and professional reliability ideal for fixed installations and cinema applications.

Main features

• Channels and power: 2 channels of 500 W @ 4 Ω; 775W @ 2Ω; 1550 W bridged mono @ 4 Ω; 300W @ 8Ω; 1000 W bridged mono @ 8 Ω
• Load stability: 2 Ω, 4 Ω, and 8 Ω in stereo; 4 Ω–8 Ω in bridge
• Frequency response: 20 Hz–20 kHz ± 0 dB
• Total harmonic distortion (THD): < 0.5%
• Signal-to-noise ratio (SNR): > 103 dB
• Voltage gain: 35 dB
• Input sensitivity: 1.4 V (for rated power)
• Damping factor: > 200

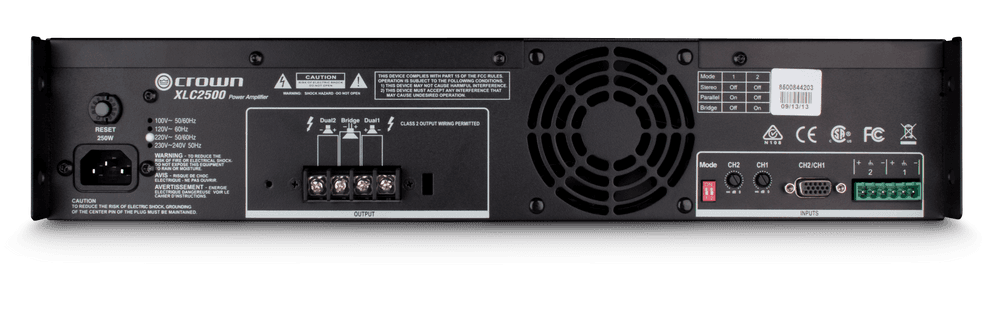

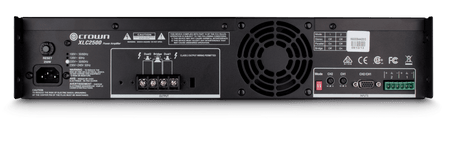

• Connectivity: Balanced 3-pin block inputs and 4-pin block outputs; DE-15 port for CXM2000 and DSi-8M monitoring
• Rack format: 1 U (482 × 89 × 203 mm)
• Weight: < 6 kg (14 lb)
• Power: 100–240 VAC, 50/60 Hz, DriveCore™ switching power supply

Product benefits

• Energy efficiency: DriveCore™ reduces power consumption and heat dissipation without compromising performance
• Compact and lightweight: ideal for racks with limited space and light touring applications
• Professional reliability: built-in thermal, overcurrent and short-circuit protections
• Advanced Monitoring: Compatible with CXM2000 and DSi-8M for remote status and fault monitoring
• Connection flexibility: stereo, parallel and bridge modes without external transformers

Use cases

• Powering front and surround speakers in digital cinemas
• Sound reinforcement in auditoriums, theaters and conference rooms
• Audio systems installed in commercial venues, museums and corporate spaces

Frequently Asked Questions

• How is remote monitoring integrated? Via the DE-15 port with the CXM2000 or DSi-8M modules.
• Do you need fans? No; its efficient design and passive convection maintain the temperature without extra noise.
• Does it support mono bridging? Yes; it delivers 1550 W bridged at 4 Ω and supports 4–8 Ω loads in bridge mode.

Description for projects

1 U rack amplifier with 2 channels of 500 W @ 4 Ω (775 W @ 2 Ω; 1550 W bridged @ 4 Ω; 300 W @ 8 Ω; 1000 W bridged @ 8 Ω); THD < 0.5 %; SNR > 103 dB; gain 35 dB; sensitivity 1.4 V; damping factor > 200; 3-pin block inputs; 4-pin block outputs; DE-15 for CXM2000/DSi-8M; 482 × 89 × 203 mm; weight < 6 kg; 100–240 VAC.
