AKG WMS470C5SETBD9 - UHF Band 9 Wireless System with C5 Microphone and Receiver

AKG WMS470C5SETBD9 - UHF Band 9 Wireless System with C5 Microphone and SR470 Receiver

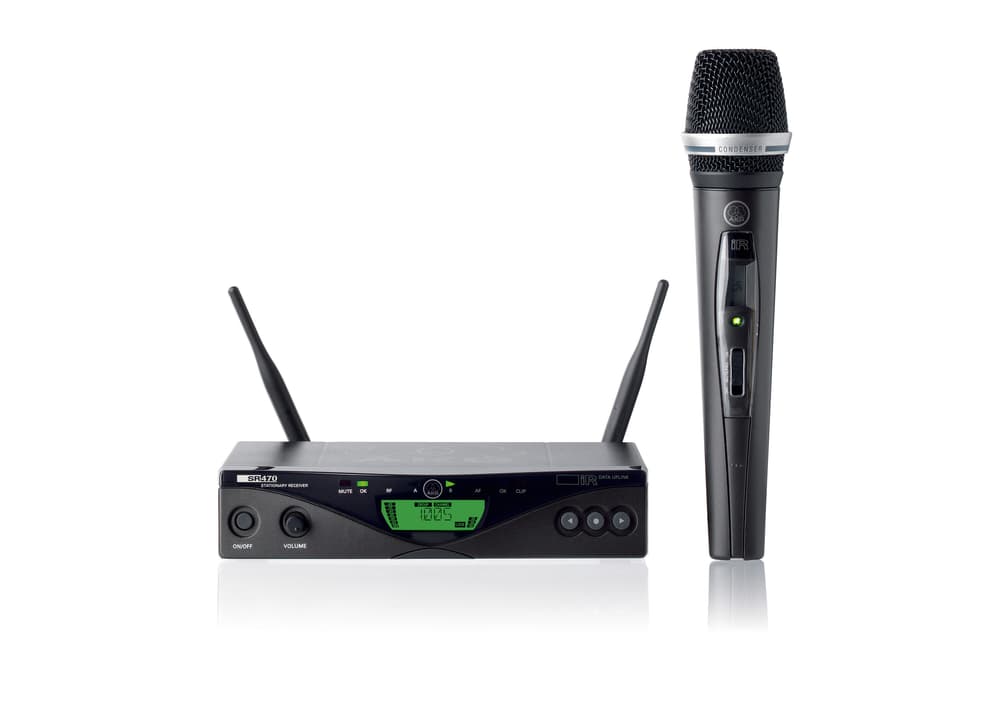

The AKG WMS470C5SETBD9 is a professional UHF wireless system that combines the SR470 receiver with an HT470 handheld microphone equipped with a C5 capsule (condenser, cardioid). It operates in Band 9 (BD9) , with a specified working range of 600.1–605.9 MHz and 614.1–630.5 MHz depending on local regulations. It offers microprocessor-controlled diversity , pilot tone to avoid noise, infrared synchronization and a tuning width of 30.5 MHz to configure multiple channels without intermodulation. The audio link is wide and transparent ( 35 Hz–20 kHz ), while the C5 capsule provides vocal definition with a 65 Hz–20 kHz response and a cardioid pattern for maximum lateral rejection. The transmitter operates on a single AA battery, providing up to 14 hours of battery life on a lithium battery, ideal for live performances, theater, events and fixed installations.

Main features

• Vocal set : SR470 receiver + HT470 handheld transmitter with C5 capsule (condenser, cardioid).
• Frequency : Band 9 (BD9) 600.1–605.9 MHz and 614.1–630.5 MHz (depending on country).
• Multichannel : up to 20 simultaneous channels per band or up to 48 in multiband , with frequency database and auto-configuration.
• RF Stability : Microprocessor diversity and pilot tone to prevent turn-on noise.
• Sync : IR link to send frequency and settings from the receiver to the transmitter.
• Selectable RF power : 10 or 50 mW (depending on local regulations).
• Battery life : Up to 14 h with lithium AA; approximately 7 h with alkaline AA; and 8 h with Ni-MH.
• Audio : link bandwidth 35 Hz–20 kHz , SNR ≈120 dB(A) , system THD up to 0.3–0.7% depending on the stage.
• Receiver outputs : Balanced XLR switchable −30/0 dB and unbalanced 6.35 mm TS jack .
• Antennas : Detachable BNC connectors for 1/4 wave and external antenna arrays.
• Construction : 19” half-rack metal chassis with mounting kit included.
• User functions : Auto Setup , Frequency Scan , Rehearsal Mode , battery monitor in hours and programmable alerts on two-color display.

Product benefits

• Clear Vocal Sound : The C5 cardioid condenser capsule enhances vocal presence and improves gain-before-feedback.
• Reliable operation : True diversity and pilot tone ensure RF stability and silence unexpected turn-ons.
• Fast start-up : IR scanning and synchronization reduce setup times even in multi-channel setups.
• Long battery life : up to 14 hours with a single AA lithium battery for intensive workdays without frequent battery changes.
• Professional integration : balanced and unbalanced outputs, BNC antennas, and compatibility with WMS/WMS4xxx series accessories to expand your system.

Use cases

• Live and touring : lead and backing vocals with freedom of movement and minimal chance of feedback.
• Theater and corporate : group programming and Rehearsal Mode to check coverage before the event.
• Fixed installations : temples, auditoriums and multipurpose rooms that require several simultaneous UHF channels.

Set contents

• 1 × SR470 (diversity receiver).
• 1 × HT470 with C5 capsule (condenser, cardioid).
• 2 × 1/4 wave UHF antennas (BNC).
• 1 × Microphone stand adapter.
• 1 × RMU4000 rack kit (19” half rack).
• 1 × Universal power supply with EU/UK/US adapters.
• 1 × AA battery.

Compatibility and regulatory notes

The Band 9 frequency range is subject to local regulation. Before use, check the applicable PMSE/UFH allocations in your country and select the permitted RF power. The WMS470 system is available with other AKG capsules (such as the D5) and in other frequency bands.

Description for projects

AKG WMS470C5SETBD9 UHF Wireless System. SR470 receiver with balanced XLR (−30/0 dB) and 6.35 mm TS jack outputs; microprocessor diversity; 30.5 MHz tuning; Band 9: 600.1–605.9 and 614.1–630.5 MHz; HT470 transmitter with cardioid C5 capsule (65 Hz–20 kHz); 10/50 mW RF power; up to 14 h battery life with lithium AA; detachable BNC antennas; 19” rack kit included; receiver dimensions approx. 202 × 190 × 44 mm.
