AKG WMS40MINSTRSETUS45C - UHF Instrument Band US 45 C 662.300 MHz Wireless System with Beltpack and Receiver

AKG WMS40 Mini Instrumental Set US45C - UHF 662.300 MHz Wireless System with Beltpack and Receiver

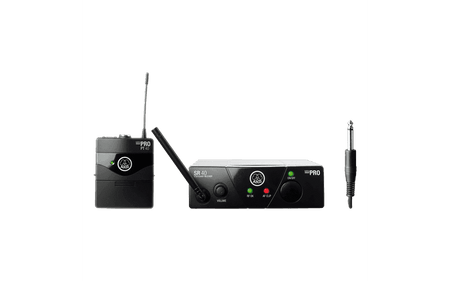

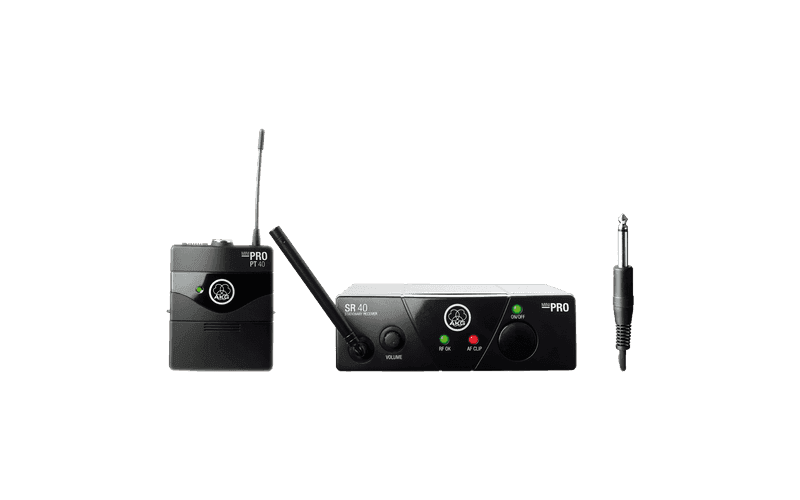

The AKG WMS40 Mini Instrumental Set US45C is a fixed-frequency 662.300 MHz UHF wireless system designed for instruments such as guitar or bass. It includes the compact SR40 Mini receiver, the PT40 Mini bodypack and the MKG L instrument cable (mini-XLR to 6.35 mm jack), offering a plug & play solution with up to 30 hours of battery life on a single AA battery. HDAP (High Definition Audio Performance) technology and analog FM modulation provide clear and stable sound , while the receiver integrates status LEDs (ON/OFF, RF OK and AF CLIP) and volume control on the output for immediate integration into any equipment.

The radio link operates with a typical power of 10 mW (ERP) and an audio bandwidth of 40 Hz to 20 kHz , with a 110 dB(A) signal-to-noise ratio and a typical THD of 0.8% . The SR40 Mini offers a 6.35 mm jack (TRS balanced) output and is powered by a universal 110–240 V AC switching power supply (EU/UK/US adapters included). The PT40 Mini incorporates a 3-pin mini-XLR connector, gain control and silent ON/OFF/MUTE switch. Its compact design facilitates mobility in stages, rehearsal rooms, theaters or corporate events.

Main features

• US45C Fixed Frequency: 662.300 MHz (UHF), ideal for quick and easy setups.
• Quality Audio: 40 Hz–20 kHz, 110 dB(A) SNR and 0.8% THD to preserve instrument tone.
• Outstanding battery life: up to 30 hours with 1 AA battery in the transmitter.
• PT40 Mini Transmitter: 3-pin mini-XLR, gain control and silent MUTE switch.
• SR40 Mini Receiver: ON/OFF, RF OK, and AF CLIP LEDs; 6.35 mm jack output with level control.
• Universal power supply: 12 V DC (110–240 V AC) switching power supply with EU/UK/US adapters included.
• Compact and lightweight design: receiver 133 × 43 × 132 mm and 0.581 kg ; belt pack 60 × 75.5 × 30 mm and ≈ 60 g .
• Included instrument cable: MKG L (mini-XLR to 6.35 mm jack) for connecting guitar, bass or other instruments with high impedance output.
• Basic scalability: possibility of operating up to 3 simultaneous systems on different frequencies available in the WMS40 Mini series (depending on regulations and RF environment).

Product benefits

• Assembly speed: single-channel plug & play system minimizes coordination and testing time.
• Freedom of movement on stage: ultra-compact bodypack with gain control to adjust the instrument level at the source.
• Low operating costs: up to 30 hours with an AA reduces battery replacements and downtime between performances.
• Easy integration: 6.35mm jack output with volume control to go directly to an amplifier, pedalboard or mixer.
• AKG Reliability: HDAP technology and RF/ clip LEDs for quick monitoring of link and audio status.

Use cases

• Guitarists and bassists who require wireless mobility in venues, rehearsals, and events.
• Houses of worship, gyms, and hotels looking for a simple, stable instrument solution .
• Rentals and installations with basic configurations and reduced assembly times.

Package contents

• AKG SR40 Mini Receiver.
• AKG PT40 Mini Bodypack Transmitter.
• MKG L cable (mini-XLR to 6.35 mm jack) for instrument.
• Universal switching power supply with EU/UK/US adapters.
• 1 AA battery and BC400 belt clip .

Frequently Asked Questions

• What is the range? Under ideal line-of-sight conditions, typically up to 20 m . Actual range depends on interference, obstacles, and local regulations.
• Can I use multiple systems simultaneously? Yes, the WMS40 Mini family allows multiple systems to operate on different frequencies; for basic configurations , up to three simultaneous channels are recommended (depending on the RF environment and frequency range availability).
• Does the bodypack support headset or lavalier microphones? Yes, it's compatible with AKG MicroMics and the included instrument cable via its 3-pin mini-XLR .
• Do I need a license? Operation on 662.300 MHz may be subject to regulations depending on the country. Check your regional regulations before use.

Description for projects

Analog UHF wireless instrument system, fixed frequency US45C 662.300 MHz . AKG SR40 Mini receiver with 1/4" TRS balanced output, volume control, LED indicators (ON/OFF, RF OK, AF CLIP) and 12 V DC switching power supply (110–240 V AC). AKG PT40 Mini transmitter with 3-pin mini XLR , gain control and ON/OFF/MUTE switch. Audio performance: 40 Hz–20 kHz , 110 dB(A) SNR, THD 0.8% , typical RF power 10 mW (ERP) . Battery life up to 30 h with 1×AA. Includes MKG L cable, EU/UK/US adapters, AA battery and belt clip.
