AKG WMS40MINSTRSETUS25B - UHF Instrument Band US 25 B 537.900 MHz Wireless System with Beltpack and Receiver

AKG WMS40MINSTRSETUS25B - US25B 537.900 MHz Instrument Band UHF Wireless System with Bodypack and Receiver

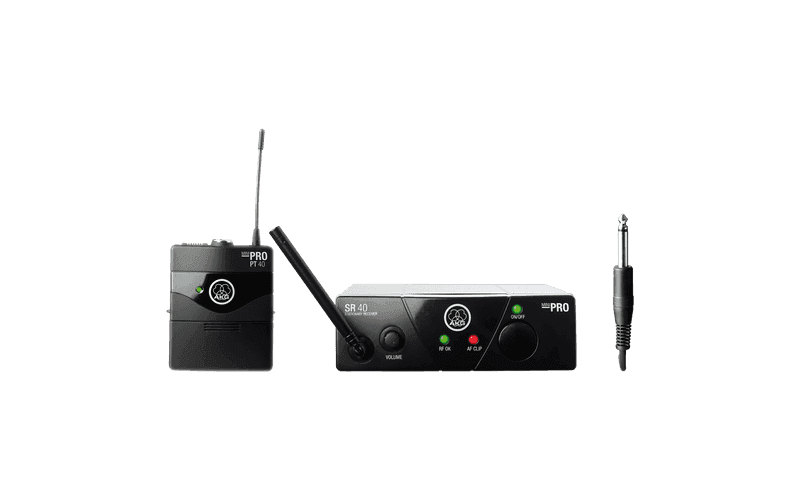

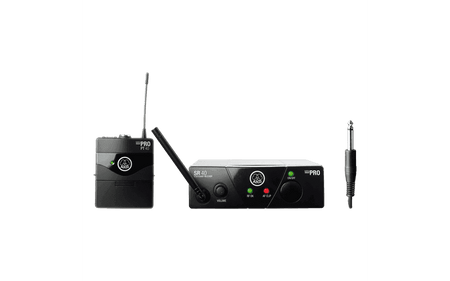

The AKG WMS40MINSTRSETUS25B is the WMS40 Mini series wireless instrument set in the US25B band (537.900 MHz) . It includes the compact SR40 Mini receiver, the PT40 Mini bodypack and the MKG L instrument cable (6.35 mm jack → 3-pin mini XLR), offering a plug & play solution with 30 hours of battery life on a single AA battery and a balanced 6.35 mm TRS audio output. Thanks to HDAP (High Definition Audio Performance) technology, the system delivers clear, stable sound for guitars, basses, keyboards and instrument pickups, with a response of 40–20,000 Hz and a typical THD of 0.8% . The SR40 Mini features a volume control and three status LEDs, and is powered by the included 110–240 V SMPS supply with international adapters.

Main features

• Fixed frequency at US25B 537.900 MHz for immediate deployment without programming.
• Ready to play set : SR40 Mini + PT40 Mini + MKG L cable for guitar/bass/keyboard.
• Exceptional battery life : up to 30 hours with 1 x AA in the PT40 Mini battery case.
• Receiver output : 6.35 mm TRS balanced jack (adjustable level).
• Audio : 40–20,000 Hz, typical THD 0.8% and typical S/N 110 dB(A).
• Indicators and Controls : 3 LEDs (Power/RF OK/AF Clip) on the receiver; adjustable gain on the beltpack; low battery warning .
• Universal power supply : power supply with EU/UK/US adapters (110–240 V).
• Simple operation : plug & play solution with HDAP technology.

Product benefits

• Mobility and reliability for a wireless instrument, with a full-day's autonomy.
• Natural and consistent sound thanks to HDAP processing and a balanced output path.
• Rapid deployment : Fixed frequency and included MKG L cable reduce setup times.
• Supports guitar and bass levels, plus AKG MicroMic microphones via mini XLR.

Use cases

• Live : guitars and basses in venues and festivals that require quick and stable setup.
• Events and Rentals : Robust and simple solutions for traveling musicians.
• Rehearsal and education : freedom of movement in classrooms, combos and practice rooms.

Frequently Asked Questions

Does it include the instrument cable?
Yes. The set includes the MKG L (6.35 mm jack to 3-pin mini XLR) to connect a guitar, bass or keyboard to the PT40 Mini bodypack.

What is the typical range?
Approximately 20 m line of sight, under normal conditions.

Can I use other AKG capsules/mics?
Yes. The PT40 Mini bodypack accepts AKG microphones with mini XLR connectors ( MicroMic series) as well as instruments via the MKG L cable.

Is this frequency legal in my country?
This model operates on 537.900 MHz (US25B) . Check local spectrum regulations before use.

Description for projects

AKG WMS40 Mini UHF wireless instrument system at US25B 537.900 MHz , consisting of SR40 Mini (balanced 6.35 mm TRS jack output, volume control, 3 status LEDs, 110–240 V power supply included) and PT40 Mini (3-pin mini XLR input, gain control, battery life up to 30 h with 1×AA); MKG L cable included; system frequency response 40–20,000 Hz , typical THD 0.8 % , typical S/N 110 dB(A) ; typical range ≈ 20 m .
